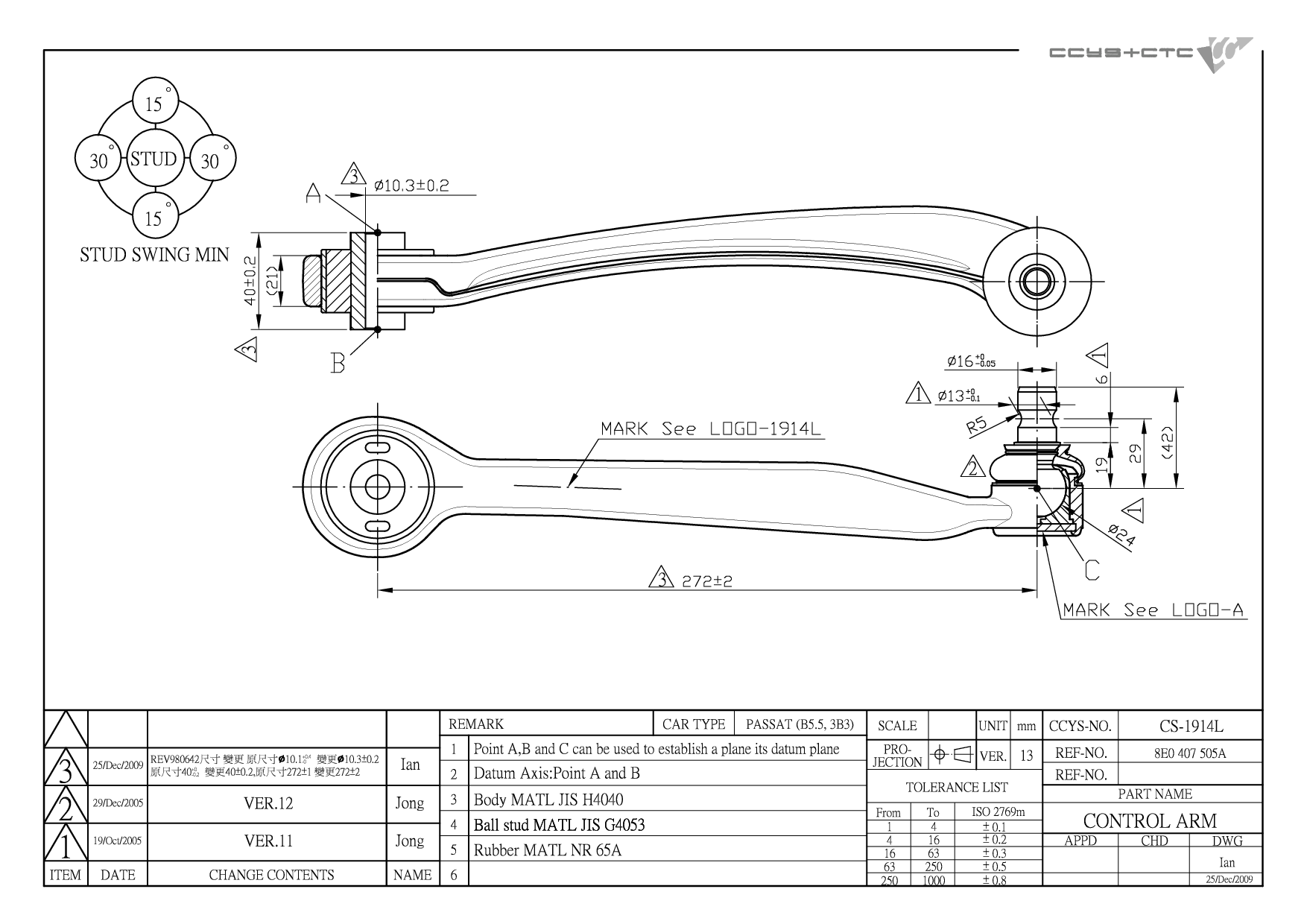

CS-1914L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 8E0 407 505A |
| Length | 322.2 mm |
| Width | 53.4 mm |
| Height | 70.3 mm |
| Net Weight | 0.53 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19006 | FRONT UPPER ARM INNER | 4B0 407 515 4D0 407 515C |
|
 |
CBH19008 | FRONT LOWER ARM INNER | 4D0 407 182E 4D0 407 182G 8E0 407 182A |
|
 |
CBH19009 | FRONT LOWER ARM OUTER | 4D0 407 181F 4D0 407 181H |
|
 |
CBH19010 | FRONT LOWER ARM INNER | 4D0 407 183AA 4D0 407 183AB 4D0 407 183AC 4D0 407 183M 4D0 407 183N 4D0 407 183P 4D0 407 183Q 4E0 407 183A 4E0 407 183H 4F0 407 183C |
|
 |
CRE19001 | D= M14X1.5 , C= M16X1.5 | 4D0 422 821 |
|
 |
CS-1904 | FRONT LOWER LH/ RH | 4D0 407 151A 4D0 407 151B 4D0 407 151C 4D0 407 151D 4D0 407 151E 4D0 407 151F 4D0 407 151G 4D0 407 151H 4D0 407 151J 4D0 407 151K 4D0 407 151N 4D0 407 151P 4D0 407 155P 8D0 407 151D 8D0 407 151E 8D0 407 151F |
|
 |
CS-1912L | FRONT LOWER LH | 4D0 407 693A 4D0 407 693AC 4D0 407 693AD 4D0 407 693C 4D0 407 693E 4D0 407 693G 4D0 407 693H 4D0 407 693K 4D0 407 693M 4D0 407 693N 8E0 407 693 8E0 407 693AG 8E0 407 693E 8E0 407 693K 8E0 407 693P 8E0 407 693Q |
|
 |
CS-1912R | FRONT LOWER RH | 4D0 407 694A 4D0 407 694AC 4D0 407 694AD 4D0 407 694C 4D0 407 694E 4D0 407 694G 4D0 407 694H 4D0 407 694K 4D0 407 694M 4D0 407 694N 8E0 407 694 8E0 407 694AG 8E0 407 694E 8E0 407 694K 8E0 407 694P 8E0 407 694Q |
|
 |
CS-1913L | FRONT UPPER LH | 8E0 407 509A |
|
 |
CS-1913R | FRONT UPPER RH | 8E0 407 510A |
|
 |
CS-1914L | FRONT UPPER LH | 8E0 407 505A |
|
 |
CS-1914R | FRONT UPPER RH | 8E0 407 506A |
|
 |
CS-1915 | FRONT LOWER LH/ RH | 4B0 407 151 4B0 407 151C 4B3 407 151A 4B3 407 151C 4B3 407 151E 4B3 407 151F 4B3 407 151K |
|
 |
CSL19011L | FRONT LH (A= 90MM) | 8D0 411 317D |
|
 |
CSL19011LA | FRONT LH (A= 90MM) | 8D0 411 317D |
|
 |
CSL19011R | FRONT RH (A= 90MM) | 8D0 411 318D |
|
 |
CSL19011RA | FRONT RH (A= 90MM) | 8D0 411 318D |
|
 |
CSR19001 | FRONT AXLE LH/ RH | 4D0 419 801B 4D0419801B 4D0419801C 4D0419801E 4D0419801L 4D0419801M |
|
 |
CTE19003 | FRONT AXLE LH/ RH (C= M14X1.5) | 8E0 419 811B |
| Model (Year) |
|---|
|
A4 B6 (8E2) | A4 / S4 A4 B6 Avant (8E5) | A4 / S4 |
| Model (Year) |
|---|
|
PASSAT B5.5 (3B3) |
