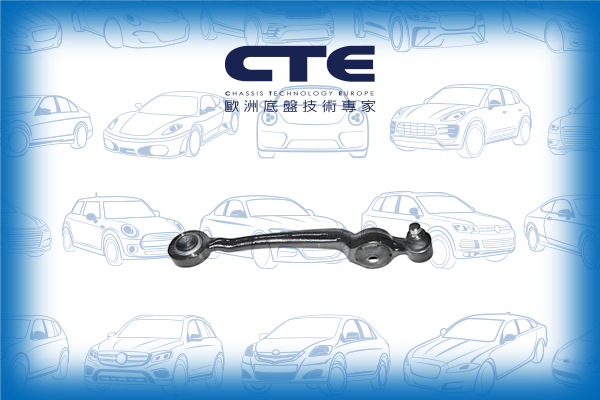

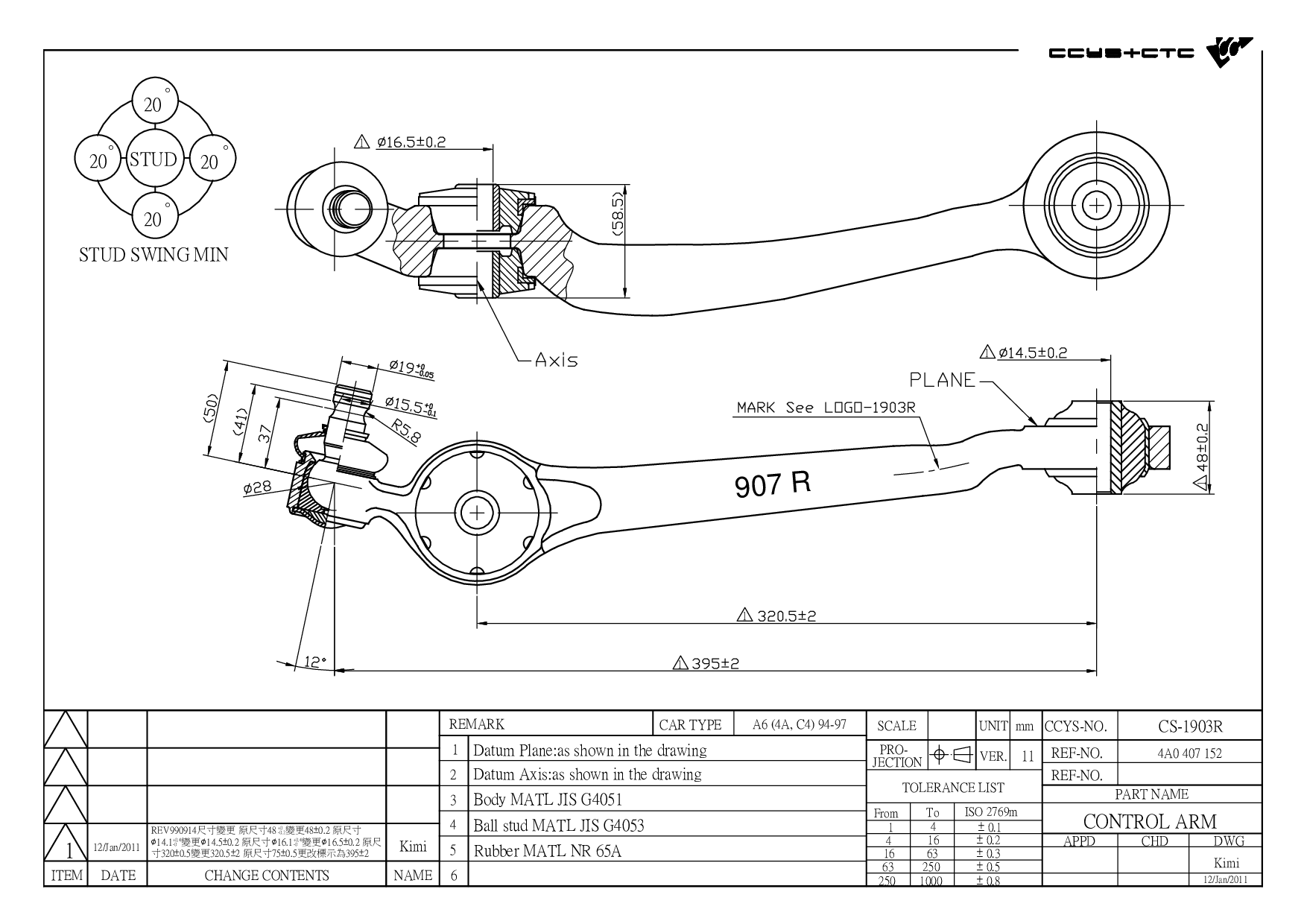

CS-1903R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 4A0 407 152 / 4A0 407 152S / 4A0 407 152S1 / 4A0 407 158B |
| Length | 456 mm |
| Width | 104 mm |
| Height | 95 mm |
| Net Weight | 3.6 kg |
AUDI A6 C4 (4A2) 2.5 TDI Construction Year to 08.1997, Quattro Construction Year from 12.1995, 2.8 Engine Code AAH, AUDI A6 C4 Avant (4A5) 2.5 TDI Construction Year to 08.1997, Quattro Construction Year from 12.1995 to 08.1997
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19003 | FRONT LOWER ARM OUTER | 4A0 407 181A 4A0 407 181B |
|
 |
CBH19005 | FRONT LOWER ARM INNER | 4A0 407 183 C 4A0 407 183D R4A 040 718 3C |
|
 |

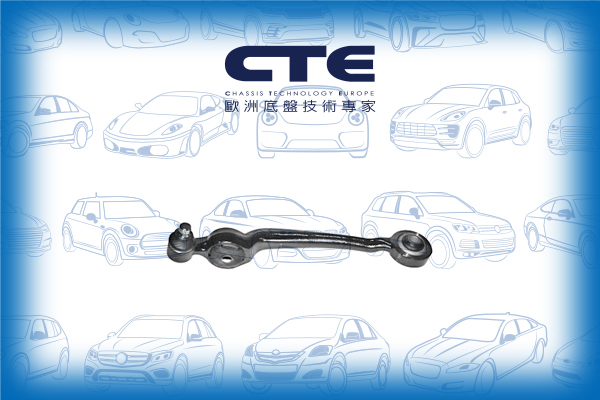

CS-1903L | FRONT LOWER LH | 4A0 407 151 4A0 407 151S 4A0 407 151S1 4A0 407 157B |
|
 |
CS-1903R | FRONT LOWER RH | 4A0 407 152 4A0 407 152S 4A0 407 152S1 4A0 407 158B |
|
 |

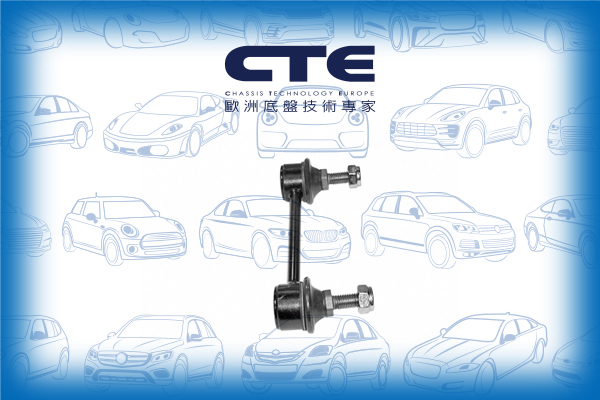

CSL19003 | REAR (A= 124MM) | 4A0 505 389 |
| Model (Year) |
|---|
|
100 C4 Avant (4A5) 100 C4 Saloon (4A2) A6 C4 (4A2) | A6 / S6 A6 C4 Avant (4A5) | A6 / S6 A6 C8 Avant (4A5) |
