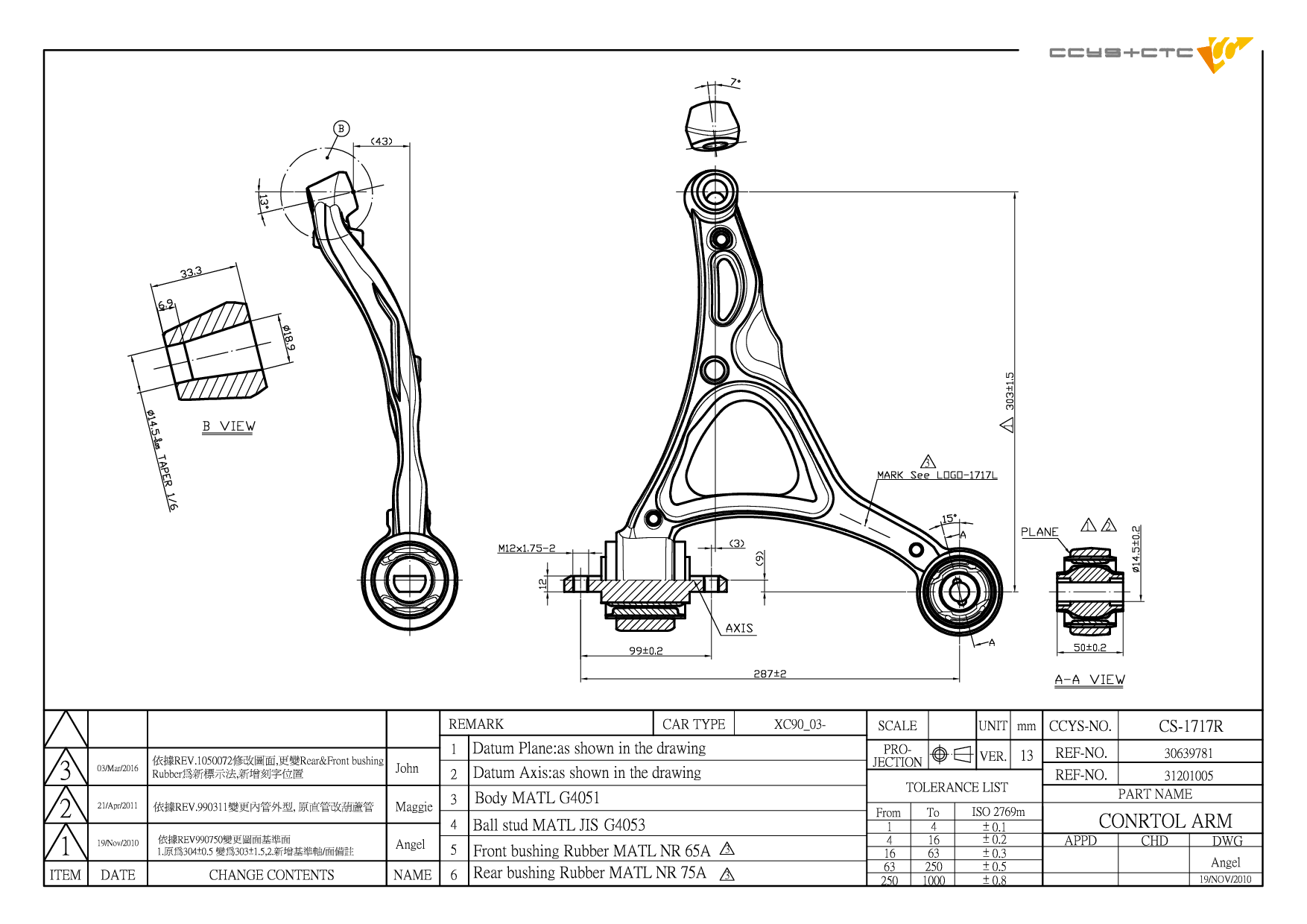

CS-1717R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 30 645 846 / 30639781 / 30681615 / 31201005 / 31304046 / 36012861 / 36050810 |
| Length | 352 mm |
| Width | 332 mm |
| Height | 73 mm |
| Net Weight | 4.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH17020 | REAR AXLE | 30639368 31277881 |
|
 |
CBH17021 | FRONT LOWER ARM REAR | 30645847 31201003 31304040 8672224 |
|
 |
CBJ17008A | FRONT LOWER LH/ RH | 274377 274523 274573 30760868 31201485 |
|
 |
CS-1717L | FRONT LOWER LH | 30 645 845 30639780 30681614 31201004 31304045 36012860 36050809 |
|
 |
CS-1717R | FRONT LOWER RH | 30 645 846 30639781 30681615 31201005 31304046 36012861 36050810 |
| Model (Year) |
|---|
|
XC90 I (275) XC90 I VAN (275) |
