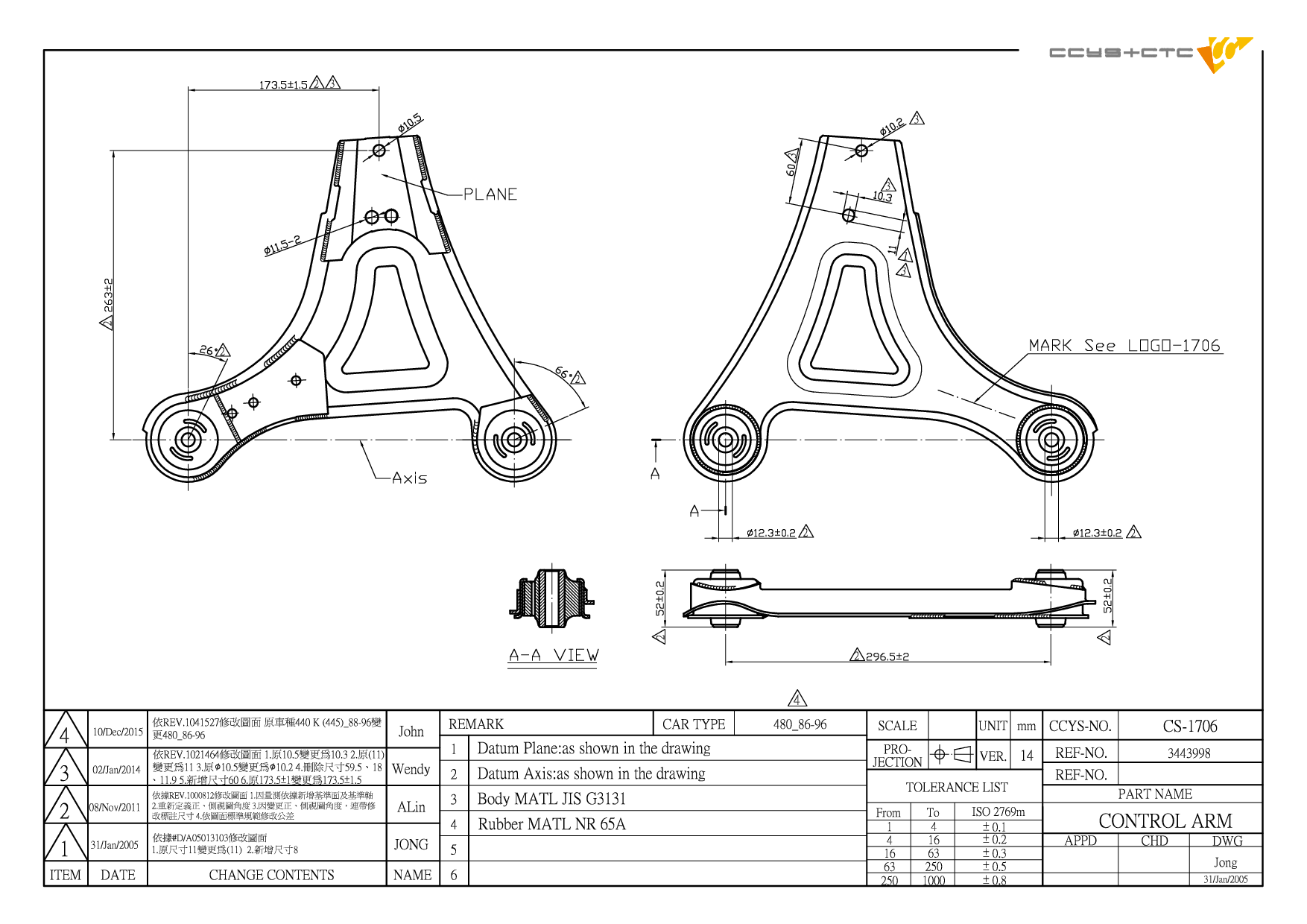

CS-1706
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 3443998 / 34439984 |
| Length | 315 mm |
| Width | 376 mm |
| Height | 52 mm |
| Net Weight | 2.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH17024 | FRONT LOWER ARM INNER | 3411810 |
|
 |
CBH17025 | FRONT LOWER ARM INNER | 3432664 |
|
 |
CBJ17005 | FRONT LOWER LH/ RH | 034654827 3270523 3410519 34105197 3465482 34654822 410519 |
|
 |
CBJ17005A | FRONT LOWER LH/ RH | 034654827 3270523 3410519 34105197 3465482 34654822 410519 |
|
 |
CRE17009 | D= M12X1.25 , C= M14X1.5 | 3342824 3410412 |
|
 |
CRE17011 | D= M12X1.25 , C= M141.5 | 034103697 3410369 410369 |
|
 |
CS-1706 | FRONT LOWER LH | 3443998 34439984 |
|
 |
CS-1707 | FRONT LOWER LH | 3421396 34213967 |
|
 |
CS-1708 | FRONT LOWER RH | 3443999 34439992 |
|
 |
CSL03034L | FRONT LH (A= 155MM) | GJ6A-34-170A GK2A-34-170 GS1D-34-170 |
|
 |
CSL03034R | FRONT RH (A= 155MM) | GJ6A-34-150A GK2A-34-150A GS1D-34-150 |
|
 |
CSL17003L | FRONT LH (A= 160MM) | 3416129 3467713 |
|
 |
CSL17003R | FRONT RH (A= 160MM) | 3416130 3467714 |
| Model (Year) |
|---|
|
440 (445) 460 (464) 480 (482) |
