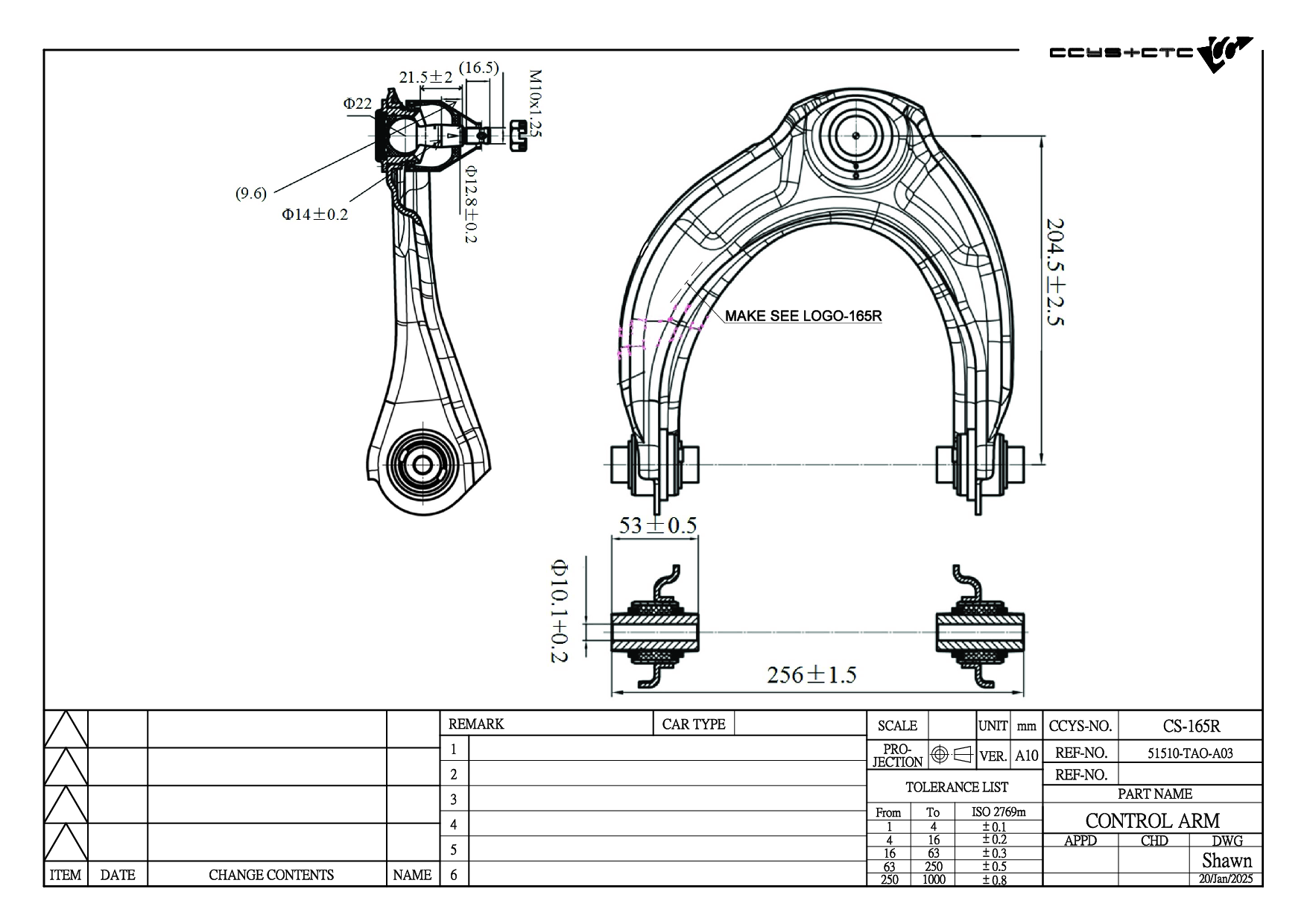

CS-165R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 51510-TA0-A01 / 51510-TA0-A02 / 51510-TA0-A03 |
| Length | 265 mm |
| Width | 254 mm |
| Height | 78 mm |
| Net Weight | 1.59 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01035 | FRONT UPPER ARM INNER | 51450-SDA-023 51450-SDA-A01 51450-SDA-A11 51450-SDA-A12 51450-SDA-A13 51450-SEA-003 51450-SEA-E01 51450-SEC-A01 51450-SFE-003 51450-SJA-013 51450-SJK-003 51460-SDA-023 51460-SDA-A01 51460-SDA-A11 51460-SDA-A12 51460-SDA-A13 51460-SEA-003 51460-SEA-E01 514 |
|
 |
CBH01037 | FRONT LOWER ARM OUTER | 51350-TP6-C00 51360-TP6-C00 51810-S1A-E01 51810-SDA-A01 51810-SJK-003 51810-SM4-003 51810-SM4-004 51810-SN7-000 51810-SN7-003 51810-SS0-003 51810-SV4-003 51810-SV4-004 51810-TA0-A01 51810-TP6-A01 |
|
 |
CBH01038 | FRONT LOWER ARM INNER | 51350-TP6-C00 51360-TP6-C00 51393-SDA-A01 51393-SDA-A02 51393-SEA-004 51393-TP6-A01 |
|
 |
CBH01041 | FRONT LOWER ARM REAR | 51391-TA0-A01 |
|
 |
CBH01055 | FRONT AXLE LH/RH | 51306-TA0-A01 51306-TA0-J01 51306-TE1-A01 |
|
 |
CBJ01010 | FRONT LOWER LH/ RH | 51220-TA0-A01 51220-TA0-A02 51350-TP6-C00 51360-TP6-C00 |
|
 |
CS-152L | FRONT LOWER LH | 51360-TA0-000 51360-TA0-A00 51360-TE1-A00 |
|
 |
CS-152R | FRONT LOWER RH | 51350-TA0-000 51350-TA0-A00 51350-TE1-A00 |
|
 |
CS-165L | FRONT UPPER LH | 51520-TA0-A01 51520-TA0-A02 51520-TA0-A03 |
|
 |
CS-165R | FRONT UPPER RH | 51510-TA0-A01 51510-TA0-A02 51510-TA0-A03 |
|
 |
CSL01025L | FRONT LH (A= 80MM) | 51321-SDA-A04 51321-SDR-003 51321-SEA-E01 51325-TA0-A01 |
|
 |
CSL01025R | FRONT RH (A= 80MM) | 51320-SDA-A04 51320-SDR-003 51320-SEA-E01 51320-TA0-A01 |
|
 |
CSL01033L | REAR AXLE LEFT | 52325-TA0-A01 |
|
|
CSL01033R | REAR AXLE RIGHT | 52320-TA0-A01 |
|
 |
CTE01008L | FRONT AXLE LH (C= M14X1.5) | 53560-SDA-A01 |
|
 |
CTE01008R | FRONT AXLE RH (C= M14X1.5) | 53540-SDA-A01 |
|
 |
CTE01011L | FRONT AXLE LH (C= M14X1.5) | 53560-TA0-A01 53560-TR0-A01 53560-TR0-A02 |
|
 |
CTE01011R | FRONT AXLE RH (C= M14X1.5) | 53540-TA0-A01 53540-TR0-A01 53540-TR0-A02 |
| Model (Year) |
|---|
|
ACCORD VIII (CP) | INSPIRE ACCORD VIII (CU) ACCORD VIII Estate (CW) |
