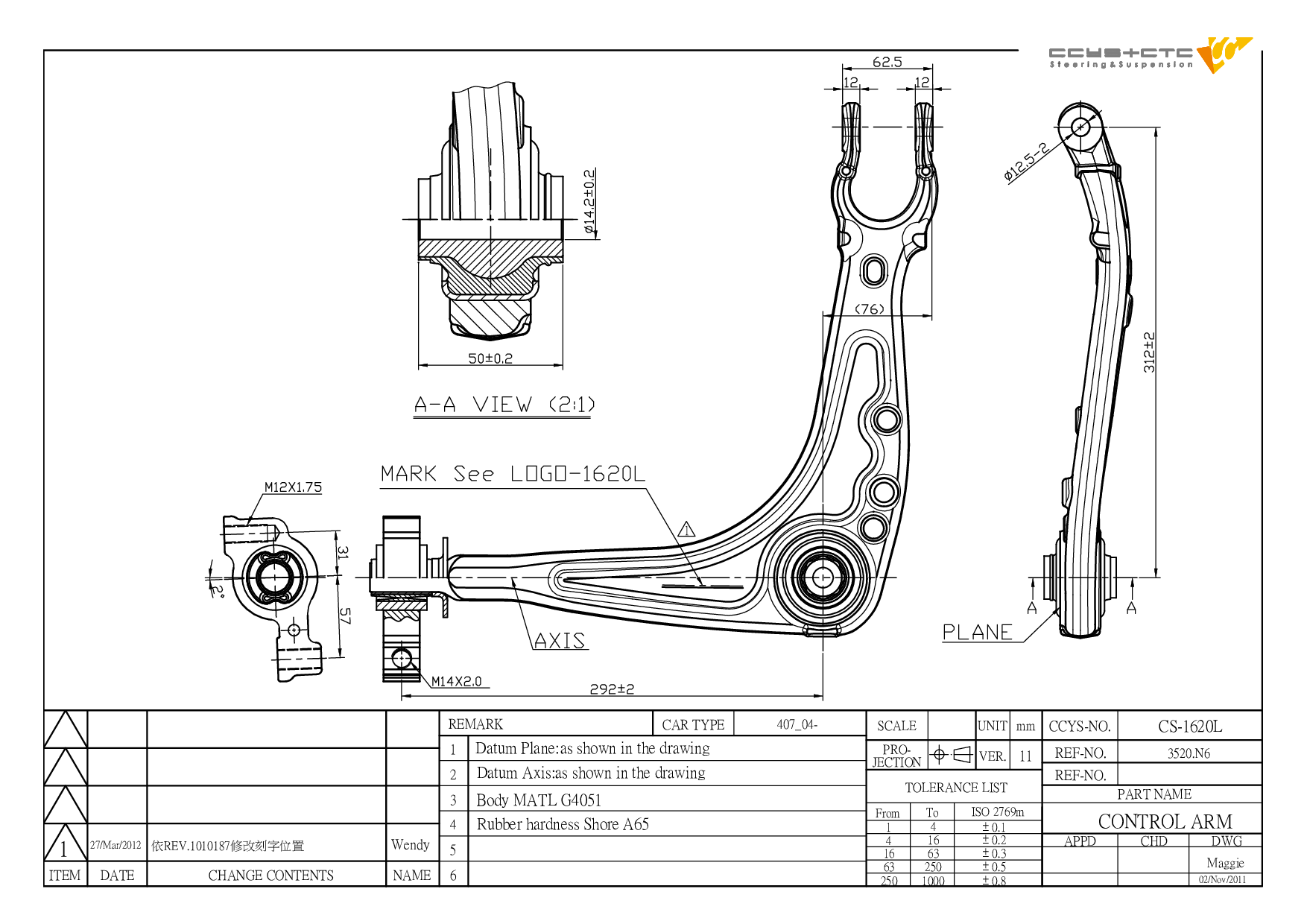

Control Arm/PEUGEOT/407 (6D_)/407 Coupe (6C_)/407 SW (6E_)

CS-1620L

Designation Control Arm
Position FRONT LOWER LH
OE No. 16 109 319 80 / 3520.N6 / 3520.W1 / 96 502 568 80 / 96 639 806 80
Length 393 mm
Width 401 mm
Height 61 mm
Net Weight 5.12 kg
For vehicles without electronic suspension
for vehicles with coil spring suspension
CTE No. DESIGNATION POSITION OE NO.
CBH16025 FRONT LOWER ARM INNER
3523.AQ
96 873 817 80
CBH16026 FRONT LOWER ARM REAR
3520.N6
3521.J6
CS-1620L FRONT LOWER LH
16 109 319 80
3520.N6
3520.W1
96 502 568 80
96 639 806 80
CS-1620R FRONT LOWER RH
16 109 322 80
3521.J6
3521.S4
3521.S5
96 502 548 80
96 639 807 80
96 639 809 80
CSL16014L FRONT AXLE LH
5087.52
CSL16014R FRONT AXLE RH
5087.53
Model (Year)
C5 III (RD_)
C5 III Break (RW_)
Model (Year)
407 (6D_)
407 Coupe (6C_)
407 SW (6E_, 6D_)
508 I (8D_)
508 SW I (8E_)
