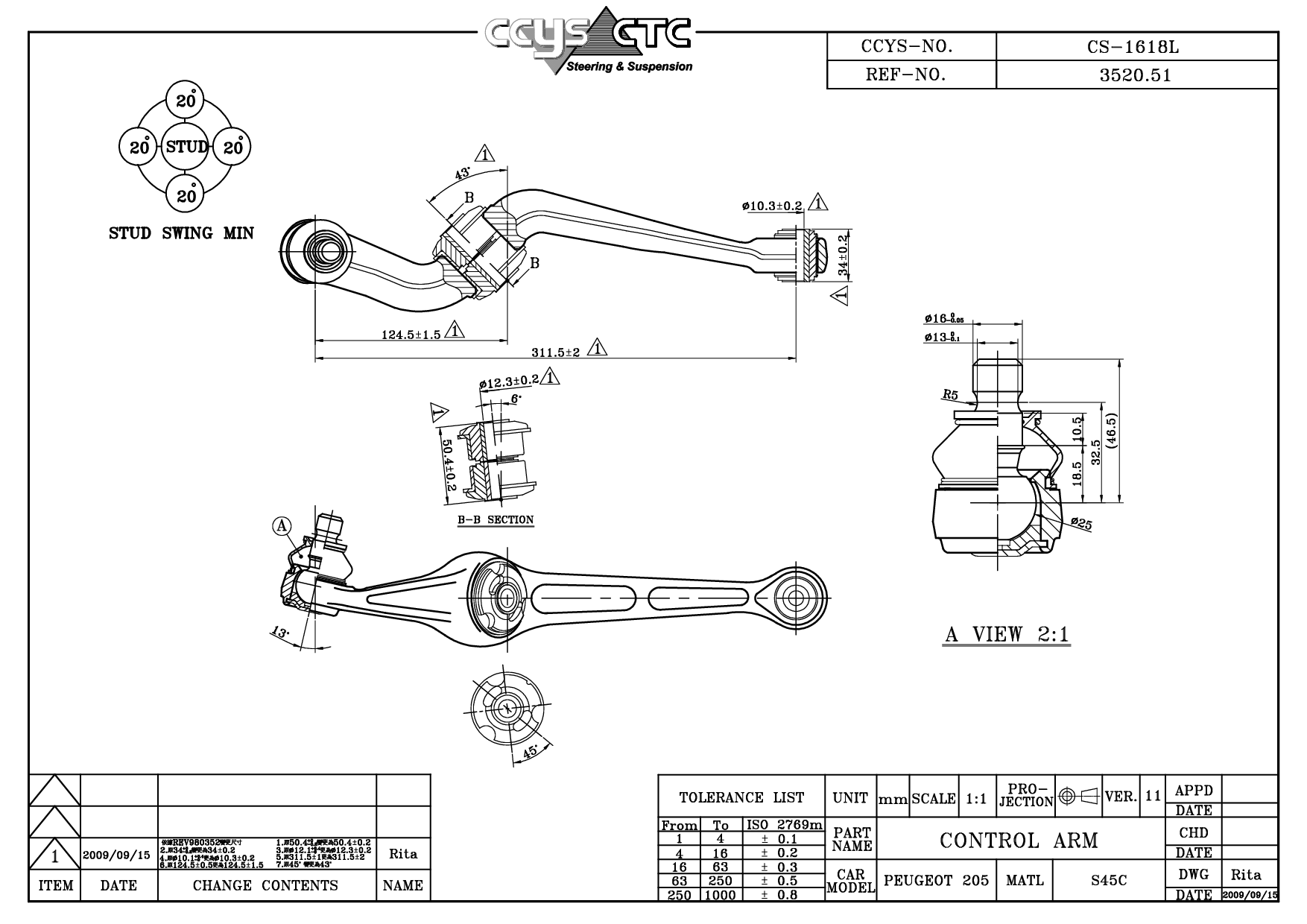

CS-1618L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1607307180 / 3520.48 / 3520.49 / 3520.50 / 3520.51 / 91 516 336 / 91516334 / 9455305059 |
| Length | 356 mm |
| Width | 74 mm |
| Height | 80 mm |
| Net Weight | 3.34 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16019 | FRONT LOWER ARM OUTER | 3523.25 3523.27 3523.29 3523.35 3523.49 3523.58 91 515 653 |
|
 |
CBH16020 | FRONT LOWER ARM INNER | 3523.20 3523.73 |
|
 |
CRE16001 | D= M14X1.5 , C= M12X1.0 | 3812.95 381232 |
|
 |
CS-1618L | FRONT LOWER LH | 1607307180 3520.48 3520.49 3520.50 3520.51 91 516 336 91516334 9455305059 |
|
 |
CS-1618R | FRONT LOWER RH | 1607307280 3521.31 3521.33 3521.34 91 516 337 91516335 9455305060 |
| Model (Year) |
|---|
|
C15 Box Body/MPV (VD_) C15 Estate C15 Platform/Chassis (VDPD) LNA VISA VISA Convertible |
| Model (Year) |
|---|
|
104 104 Coupe 205 Hatchback Van 205 I (741A/C) 205 I Convertible (741B, 20D) 205 II (20A/C) |
| Model (Year) |
|---|
|
14 (121_) |
| Model (Year) |
|---|
|
SAMBA SAMBA Convertible |
