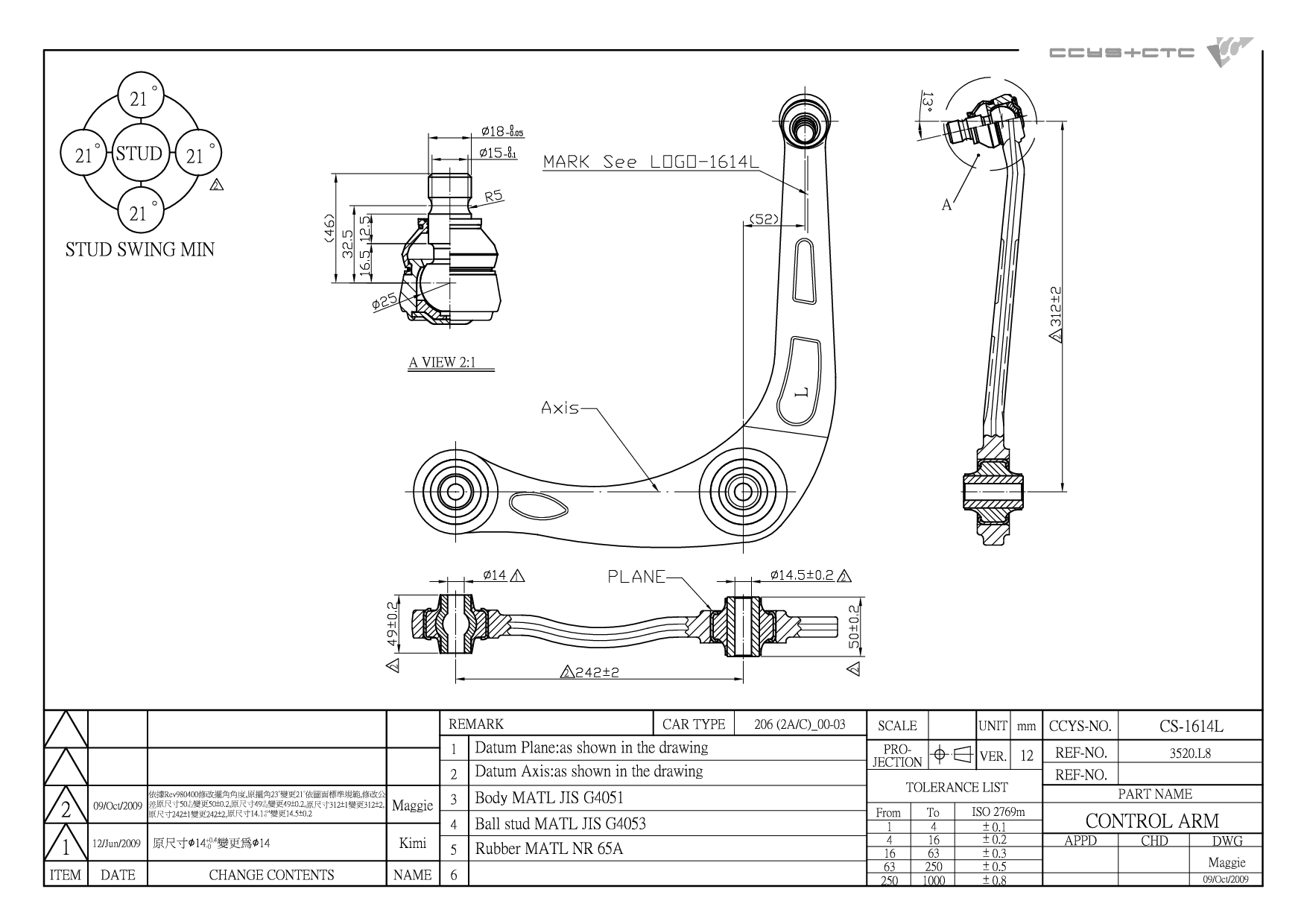

CS-1614L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 3520.L8 / 3520.S3 / 3520.V7 |
| Length | 358.2 mm |
| Width | 382 mm |
| Height | 65.5 mm |
| Net Weight | 4.58 kg |
PEUGEOT 206 CC
Hatchback for PRO no from 9440
9441 fitting Position Lower Construction year from 09.2002
Hatchback for PRO no from 9440
9441 fitting Position Lower Construction year from 09.2002
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16009 | FRONT LOWER ARM REAR | 3523.77 3523.92 |
|
 |
CBH16010 | FRONT LOWER ARM INNER | 3523.76 3523.AG 3830.07 96239153 |
|
 |
CRE16002 | D= M14X1.5 , C= M14X1.5 | 3812.C5 |
|
 |
CS-1603L | FRONT LOWER LH | 1607308680 1612159880 3520.G8 3520.L7 3520.S4 3520.W0 3528.W8 |
|
 |
CS-1603R | FRONT LOWER RH | 1607308880 1612159980 3521.C8 3521.H9 3521.P5 3521.S1 |
|
 |
CS-1614L | FRONT LOWER LH | 3520.L8 3520.S3 3520.V7 |
|
 |
CS-1614R | FRONT LOWER RH | 3521.J0 3521.JO 3521.P4 3521.R9 |
|
 |
CSL16011 | FRONT (A= 335MM) | 16 073 234 80 16 466 219 80 5087.45 5087.59 5087.66 5087.71 5087.74 96288787 98 000 861 80 98 088 682 80 E459713 |
| Model (Year) |
|---|
|
206 CC (2D) 206 Hatchback (2A/C) 206 Saloon 206 SW (2E/K) |
