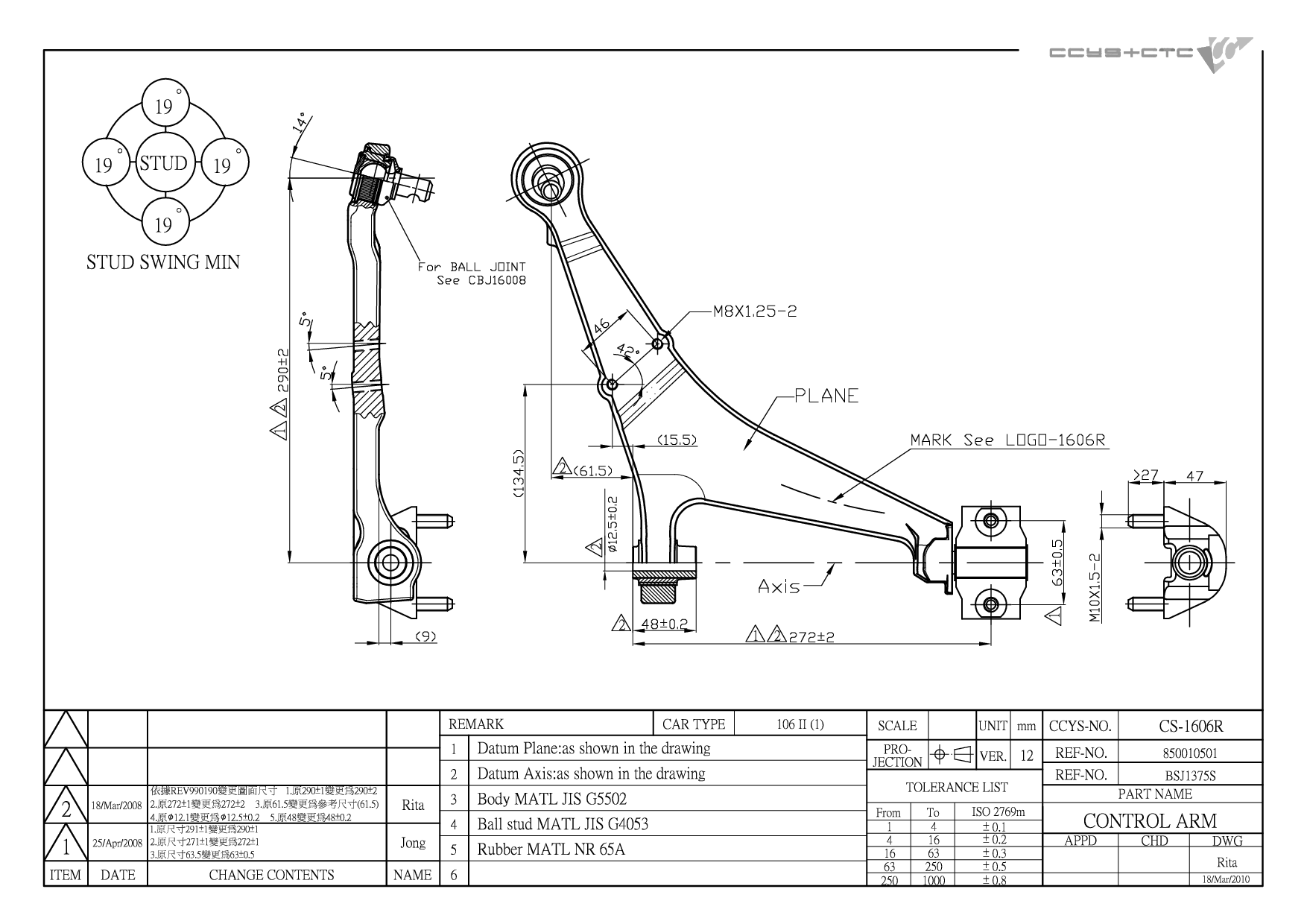

CS-1606R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 3520.79 / 95658979 |
| Length | 390.2 mm |
| Width | 360.1 mm |
| Height | 79 mm |
| Net Weight | 3.71 kg |
For vehicles without sports suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16015 | FRONT LOWER ARM REAR | 3520.80 3520.81 3520.92 3520.93 9451135580 9451135680 |
|
 |
CBH16016 | FRONT LOWER ARM INNER | 3520.80 3520.81 3520.92 3520.93 9451135580 9451135680 |
|
 |
CBJ16008 | FRONT LOWER LH/ RH | 16 144 392 80 16 144 466 80 3640.36 96093233 |
|
 |
CS-1606L | FRONT LOWER LH | 3520.78 95658978 |
|
 |
CS-1606R | FRONT LOWER RH | 3520.79 95658979 |
|
 |
CS-1616L | FRONT LOWER LH | 3520.80 3520.92 9451135580 |
|
 |
CS-1616R | FRONT LOWER RH | 3520.81 3520.93 9451135680 |
|
 |

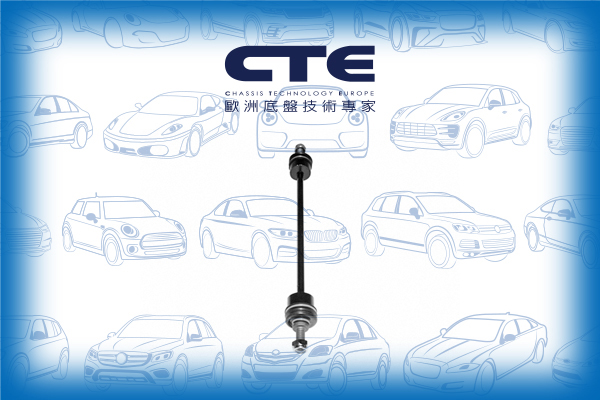

CSL16012 | FRONT (A= 297MM) | 5087.33 96 147 514 |
|
 |
CSL25002 | FRONT (A= 323MM) | 5087.40 96177836 9631583680 |
| Model (Year) |
|---|
|
AX (ZA-_) SAXO (S0, S1) | CHANSON SAXO Hatchback van (S3_) |
| Model (Year) |
|---|
|
106 I (1A, 1C) 106 II (1A_, 1C_) 106 Van I Hatchback Van (1S_) |
