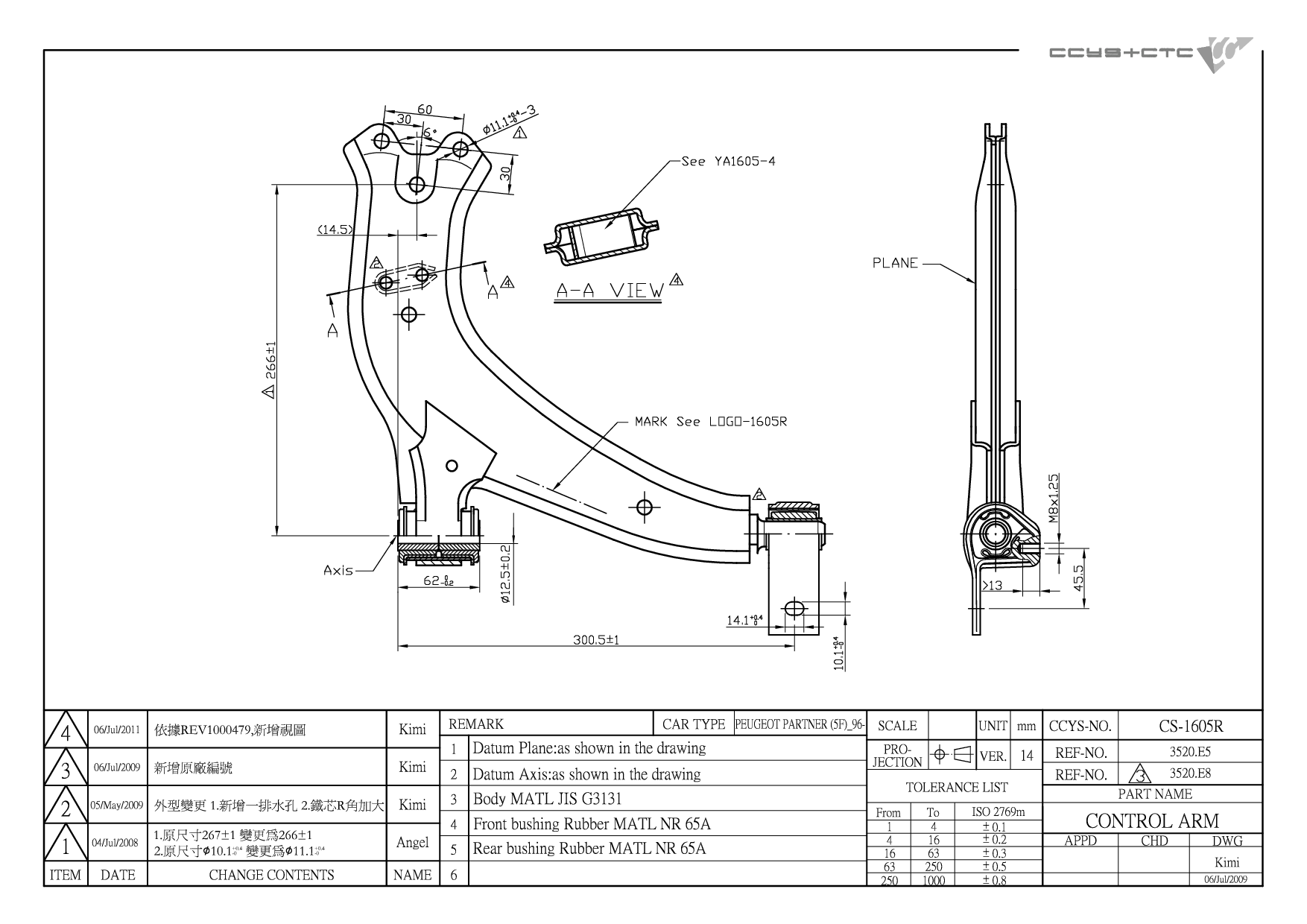

CS-1605R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 16 144 477 80 / 3521 56 / 3521.55 / 3521.56 / 3521.68 / 3521.69 / 3521.78 / 3521.79 / 3521.86 / 3521.87 / 3521.90 / 3521.91 / 3521.92 / 3521.94 / 3521.95 / 3521.96 / 3521.97 / 3521.98 / 3521.99 / 3521.A1 / 3521.A2 / 3521.A3 / 3521.A5 / 3521.A6 / 3521.A7 / 3521.A8 / 3521.C3 / 3521.C4 / 3521.C5 / 3521.C6 / 3521.E3 / 3 |
| Length | 361 mm |
| Width | 387 mm |
| Height | 58 mm |
| Net Weight | 3.4 kg |
Citroen (MF_,GJK_,GFK_,M_,N68) Engine Codce KFX (TU3JP) ,for vehicles with standard suspension
(N0,N1,N2) with Manual Transmission
PEUGEOT (5_,G_) for vehicles with standard suspension
(N0,N1,N2) with Manual Transmission
PEUGEOT (5_,G_) for vehicles with standard suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16005 | FRONT LOWER ARM INNER | 3523.59 3523.62 3523.75 96051398 LEM2019 LEM2024 |
|
 |
CBH16006 | FRONT LOWER ARM INNER | 3520.H5S1 96 110 483 LEM2020 |
|
 |

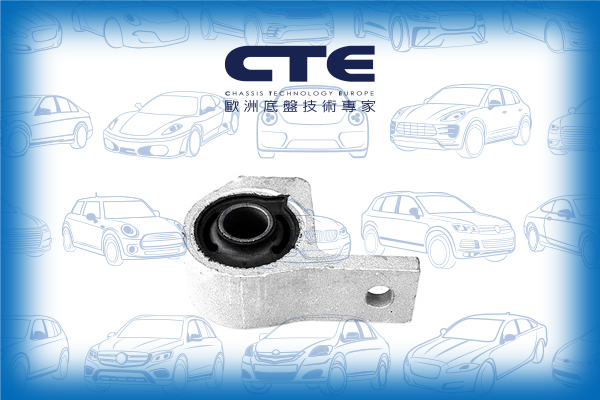

CBH16012 | FRONT LOWER ARM REAR | 3523.83 |
|
 |

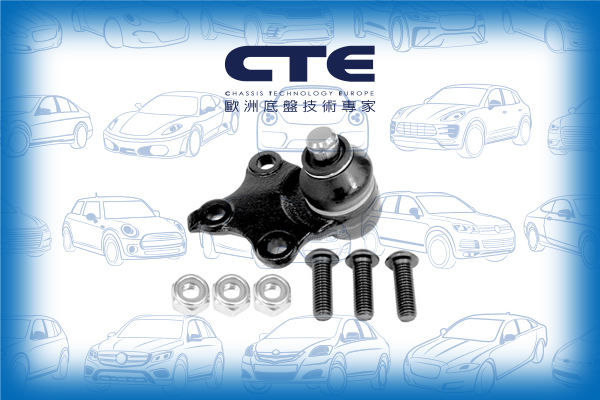

CBJ16004A | FRONT LOWER LH/ RH | 3640.39 3640.43 96087507 |
|
 |

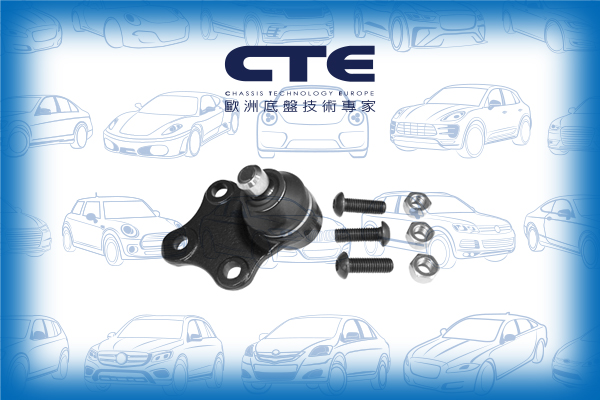

CBJ16005A | FRONT LOWER LH/ RH | 3640.38 3640.42 95 025 445 96 103 696 |
|
 |

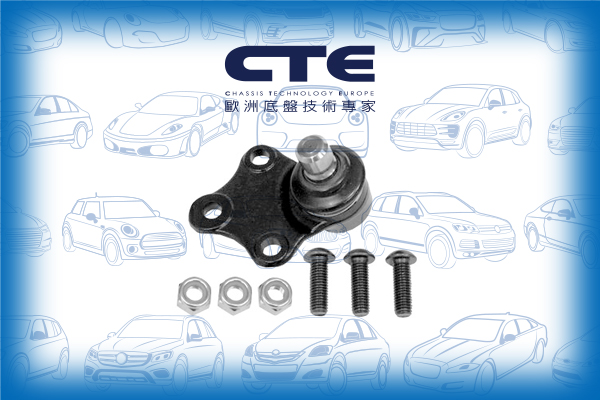

CBJ16006A | FRONT LOWER LH/ RH | 3640.50 3640.51 3640.52 7470019 |
|
 |
CS-1605L | FRONT LOWER LH | 16 144 470 80 16 144 476 80 3520.83 3520.84 3520.98 3520.99 3520.A2 3520.A8 3520.A9 3520.C6 3520.C7 3520.E0 3520.E1 3520.E4 3520.E5 3520.E6 3520.E7 3520.E8 3520.E9 3520.F1 3520.F2 3520.F3 3520.F5 3520.F6 3520.F7 3520.F8 3520.G3 3520.G4 3520.G5 3520.G6 352 |
|
 |
CS-1605R | FRONT LOWER RH | 16 144 477 80 3521 56 3521.55 3521.56 3521.68 3521.69 3521.78 3521.79 3521.86 3521.87 3521.90 3521.91 3521.92 3521.94 3521.95 3521.96 3521.97 3521.98 3521.99 3521.A1 3521.A2 3521.A3 3521.A5 3521.A6 3521.A7 3521.A8 3521.C3 3521.C4 3521.C5 3521.C6 3521.E3 3 |
|
 |

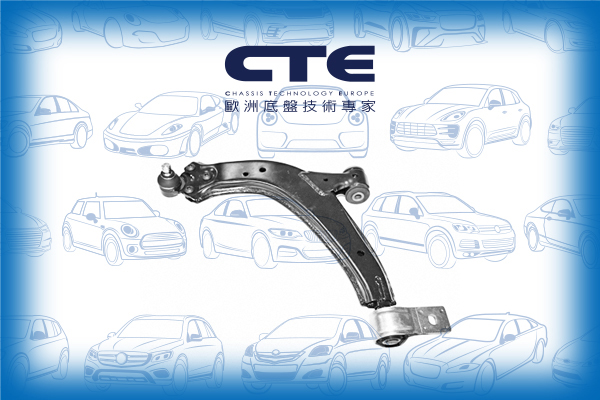

CS-1607L | FRONT LOWER LH | 3520.H4 3520.H5 3520.H6 3520.H8 CS-1605L+CBJ16006A |
|
 |
CS-1607R | FRONT LOWER RH | 3521.E4 3521.E5 3521.E6 3521.E8 CS-1605R+CBJ16006A |
|
 |

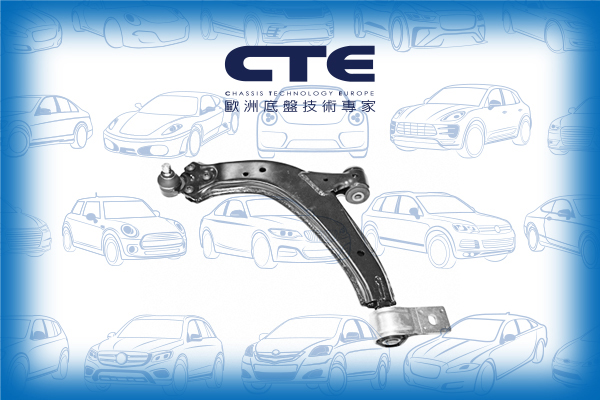

CS-1609L | FRONT LOWER LH | 3520.A2 3520.F5 3520.F7 3520.G3 3520.G5 CS-1605L+CBJ16005A |
|
 |

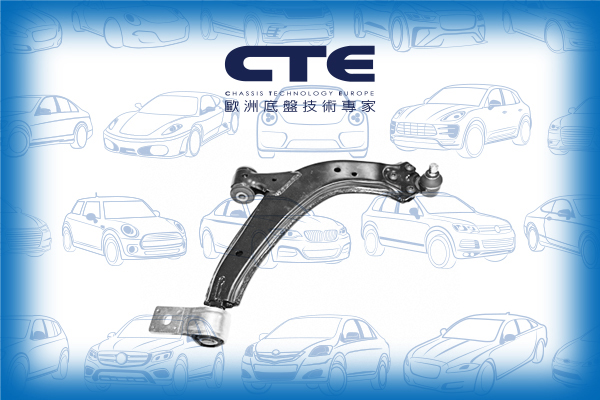

CS-1609R | FRONT LOWER RH | 3521.92 3521.A7 3521.C3 3521.C5 CS-1605R+CBJ16005A |
|
 |

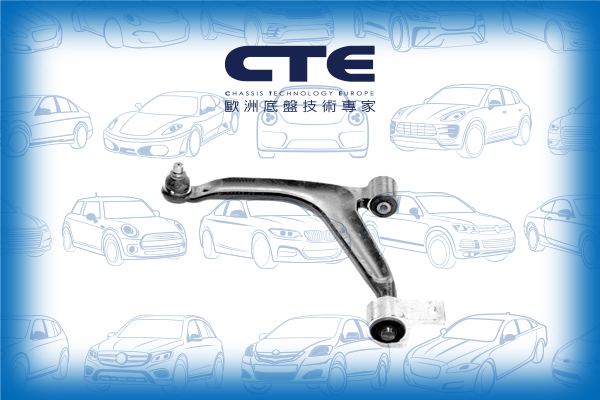

CS-1615L | FRONT LOWER LH | 3520.H9 3520.J3 3520.J4 3520.J9 3520.K0 3520.K1 3520.K2 3520.K9 3520.L2 3520.Q3 3520.Q4 3520.Q5 3520.Q8 3520.V3 3520.V4 |
|
 |

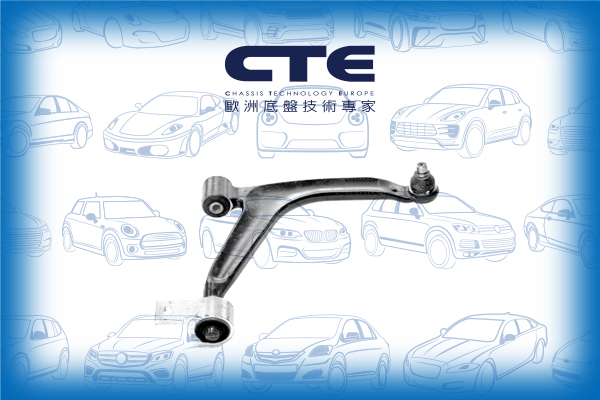

CS-1615R | FRONT LOWER RH | 3521.E9 3521.F3 3521.F4 3521.F9 3521.G0 3521.G1 3521.G2 3521.G9 3521.H4 3521.L4 3521.L5 3521.L6 3521.L9 3521.R4 3521.R5 |
|
 |
CSL25005 | FRONT (A= 301MM) | 5087.39 5087.46 5087.61 93 802 209 96 152 213 |
| Model (Year) |
|---|
|
BERLINGO / BERLINGO FIRST Box Body/MPV (M_) BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) XSARA (N1) XSARA Break (N2) XSARA Coupe (N0) XSARA Estate Van XSARA Hatchback Van (N3_) XSARA PICASSO (N68) ZX (N2) ZX Break (N2) ZX Hatchback Van (N2) |
| Model (Year) |
|---|
|
306 (7B, N3, N5) 306 Break (7E, N3, N5) 306 Convertible (7D, N3, N5) 306 Estate Van (N_, 7_) 306 Hatchback (7A, 7C, N3, N5) 306 Hatchback Van PARTNER Box Body/MPV (5_, G_) | RANCH PARTNER MPV (5_, G_) PARTNER MPV (5_, G_) | RANCH PARTNER Platform/Chassis (5_, G_) |
