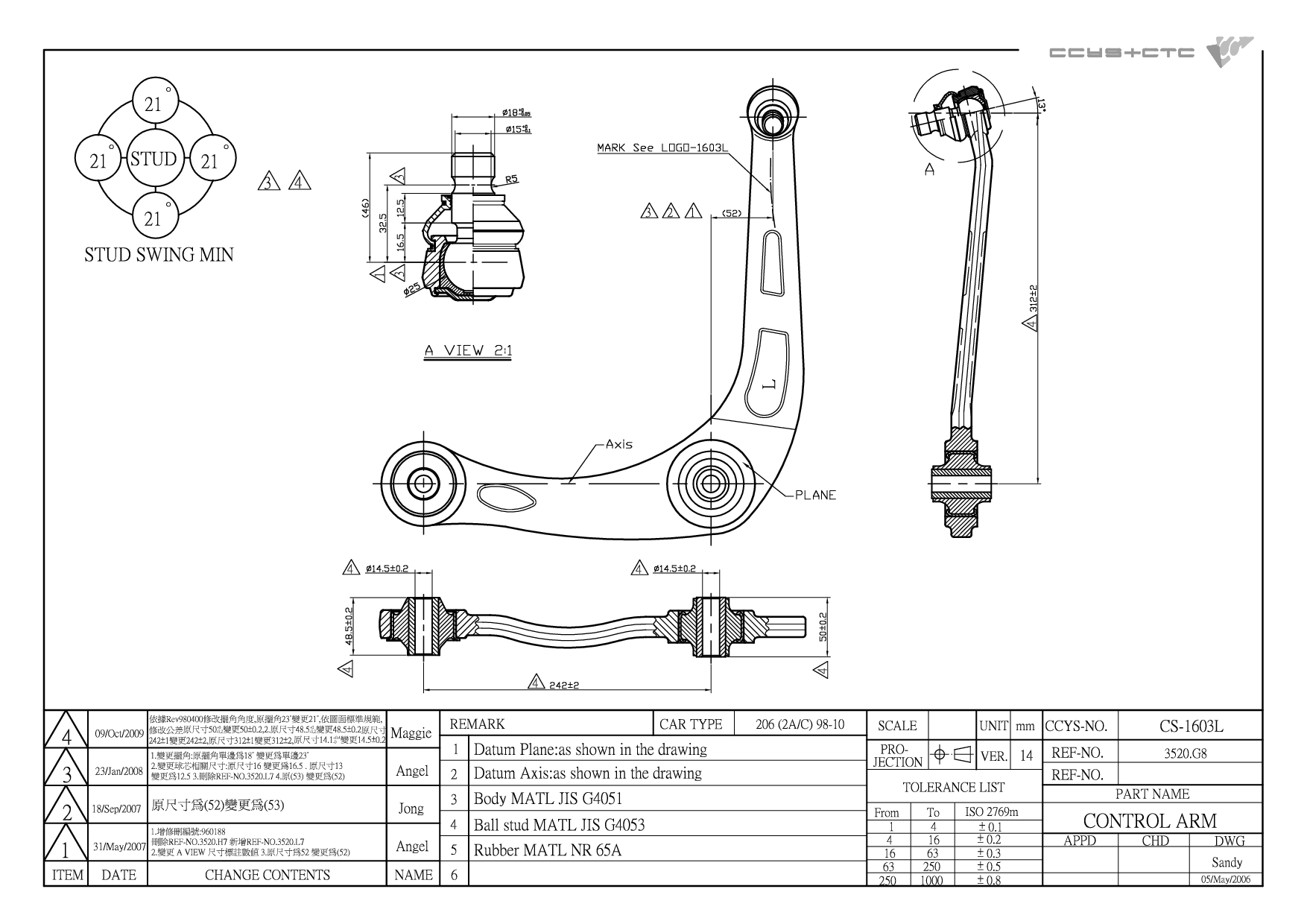

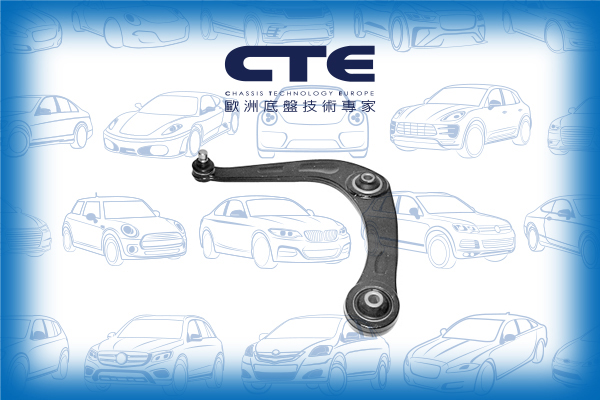

CS-1603L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1607308680 / 1612159880 / 3520.G8 / 3520.L7 / 3520.S4 / 3520.W0 / 3528.W8 |
| Length | 358.4 mm |
| Width | 381.6 mm |
| Height | 65.1 mm |
| Net Weight | 4.4 kg |
Peugeot (2A
C) Vin code 9439 to 9441
Construction year from 10.2002
C) Vin code 9439 to 9441
Construction year from 10.2002
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16010 | FRONT LOWER ARM INNER | 3523.76 3523.AG 3830.07 96239153 |
|
 |
CBH16013 | FRONT LOWER ARM REAR | 3523.80 |
|
 |
CRE16002 | D= M14X1.5 , C= M14X1.5 | 3812.C5 |
|
 |
CS-1603L | FRONT LOWER LH | 1607308680 1612159880 3520.G8 3520.L7 3520.S4 3520.W0 3528.W8 |
|
 |

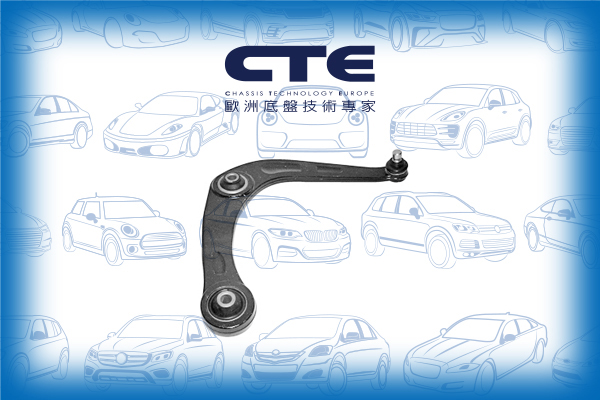

CS-1603R | FRONT LOWER RH | 1607308880 1612159980 3521.C8 3521.H9 3521.P5 3521.S1 |
|
 |
CS-1614L | FRONT LOWER LH | 3520.L8 3520.S3 3520.V7 |
|
 |
CS-1614R | FRONT LOWER RH | 3521.J0 3521.JO 3521.P4 3521.R9 |
|
 |
CSL16011 | FRONT (A= 335MM) | 16 073 234 80 16 466 219 80 5087.45 5087.59 5087.66 5087.71 5087.74 96288787 98 000 861 80 98 088 682 80 E459713 |
| Model (Year) |
|---|
|
206 Hatchback (2A/C) 206 Saloon 206 SW (2E/K) 206 Van 206+ (2L_, 2M_) |
