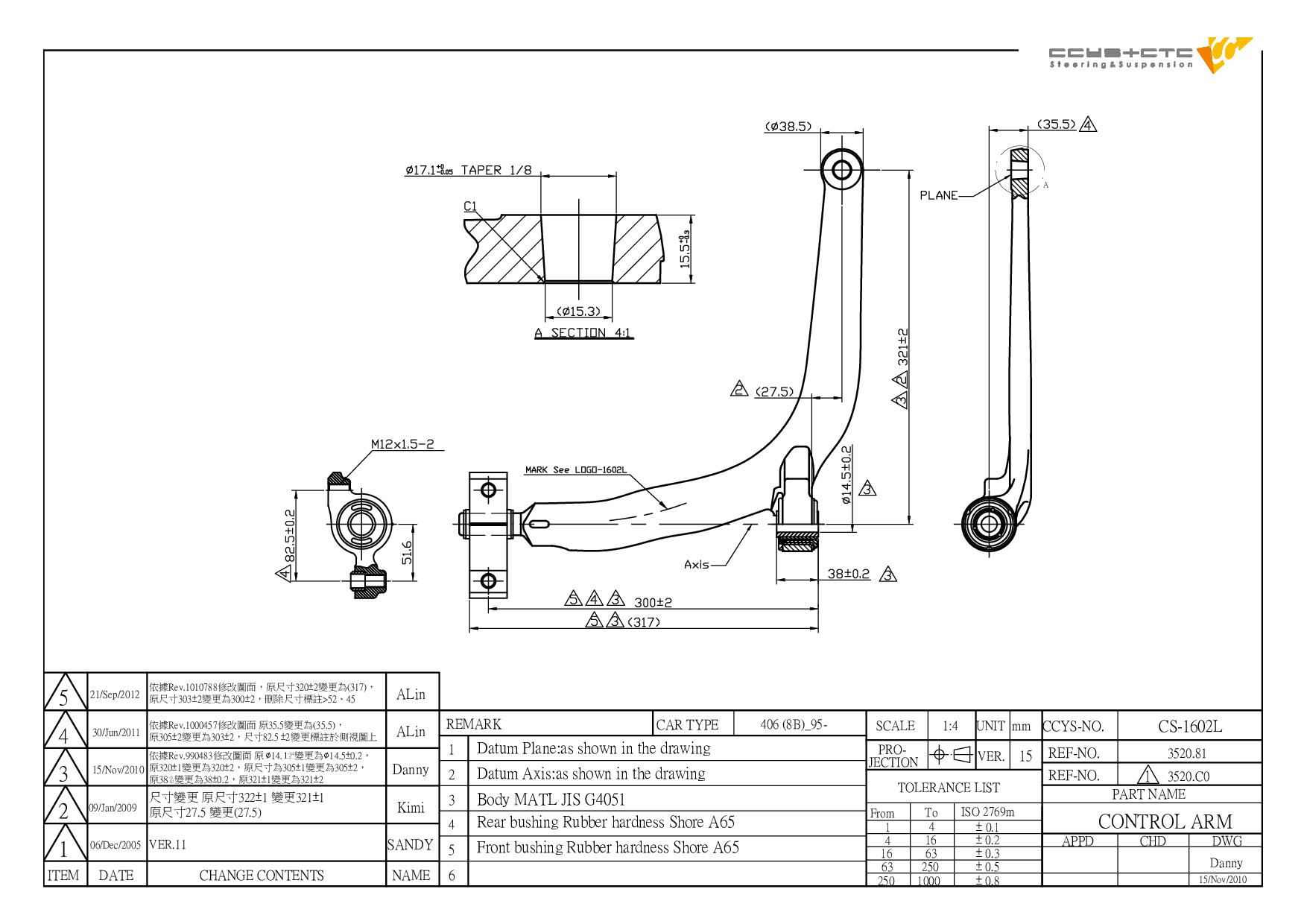

CS-1602L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 3520.C0 / 3520.H1 |
| Length | 367.3 mm |
| Width | 365.9 mm |
| Height | 62.8 mm |
| Net Weight | 4.78 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH16003 | FRONT LOWER ARM INNER | 3523.60 |
|
 |
CBH16004 | FRONT LOWER ARM REAR | 3523.61 5185.80 96172459 |
|
 |
CBJ16012 | FRONT LOWER LH/RH | 3640.28 3640.34 3640.71 95 028 039 96 233 739 |
|
 |
CS-1602L | FRONT LOWER LH | 3520.C0 3520.H1 |
|
 |
CS-1602R | FRONT LOWER RH | 3521.80 3521.E1 |
|
 |
CSL16008 | REAR (A= 245MM) | 5178.39 96287831 |
|
 |
CSL16010 | REAR (A= 160.5MM) | 5178.38 96 152 300 80 |
|
 |
CSL25002 | FRONT (A= 323MM) | 5087.40 96177836 9631583680 |
|
 |
CSL25006 | FRONT (A= 322MM) | 5087.48 |
| Model (Year) |
|---|
|
406 (8B) |
