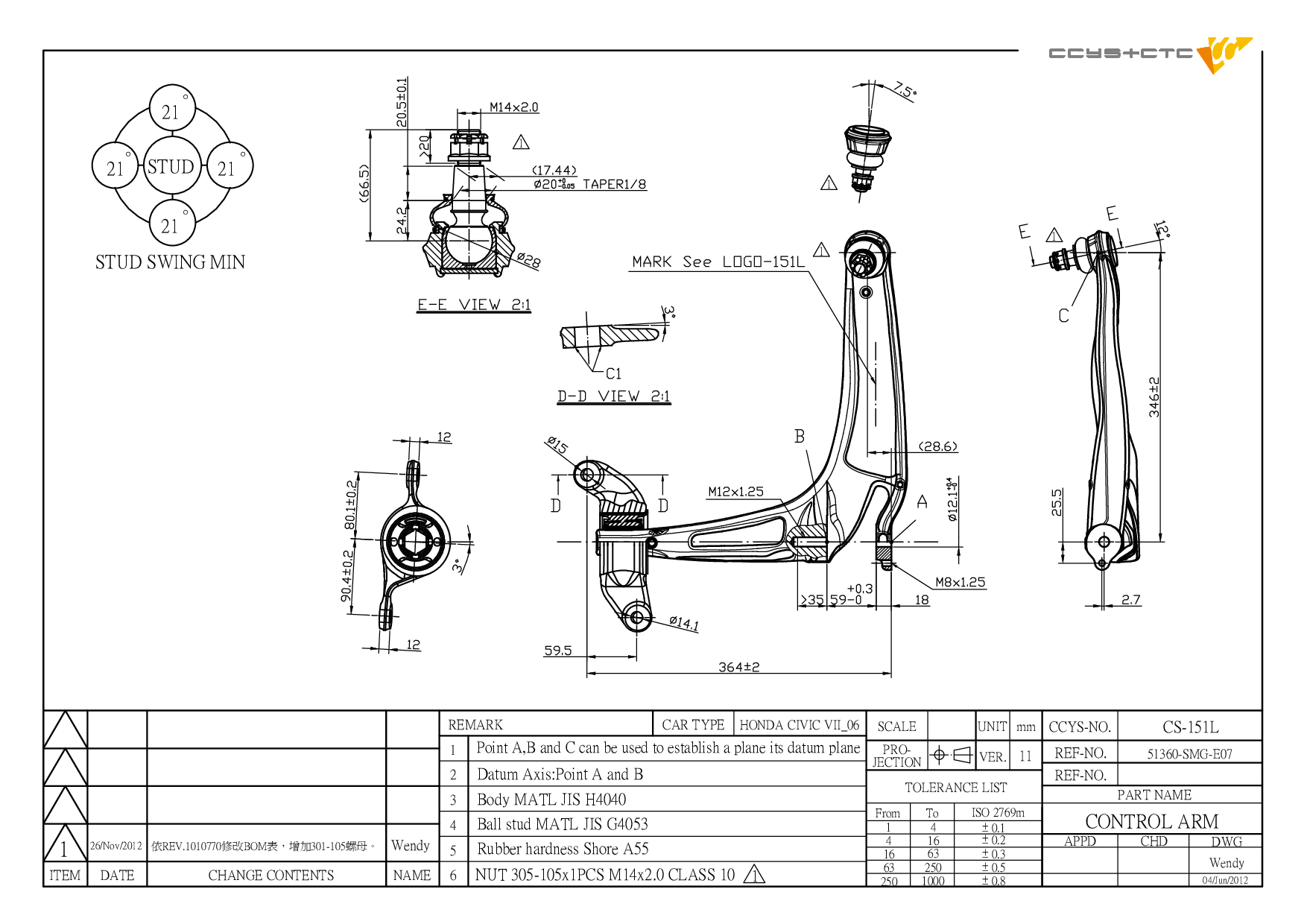

CS-151L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 51360-SMG-E01 / 51360-SMG-E02 / 51360-SMG-E03 / 51360-SMG-E04 / 51360-SMG-E05 / 51360-SMG-E06 / 51360-SMG-E07 |
| Length | 480 mm |
| Width | 399 mm |
| Height | 107 mm |
| Net Weight | 3.86 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

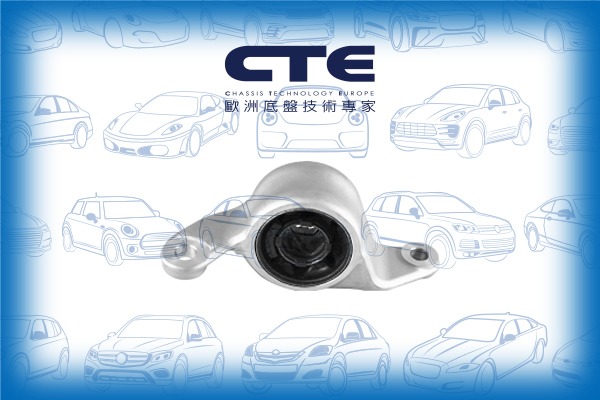

CBH01040L | FRONT LOWER ARM REAR | 51396-SMG-E00 51396-SMG-E01 51396-SMG-E02 51396-SMG-E03 51396-SMG-E04 51396-SMG-E05 |
|
 |

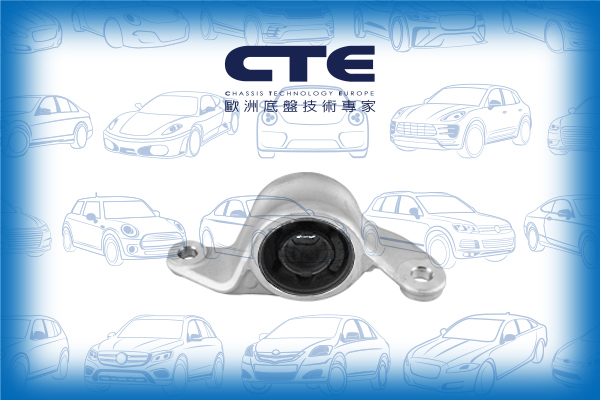

CBH01040R | FRONT LOWER ARM REAR | 51395-SMG-E00 51395-SMG-E01 51395-SMG-E02 51395-SMG-E03 51395-SMG-E04 51395-SMG-E05 |
|
 |

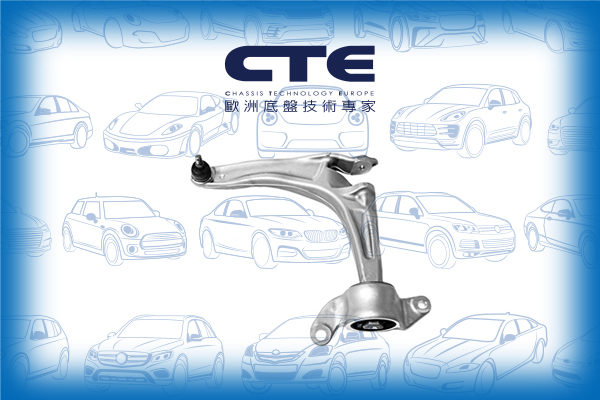

CS-151L | FRONT LOWER LH | 51360-SMG-E01 51360-SMG-E02 51360-SMG-E03 51360-SMG-E04 51360-SMG-E05 51360-SMG-E06 51360-SMG-E07 |
|
 |

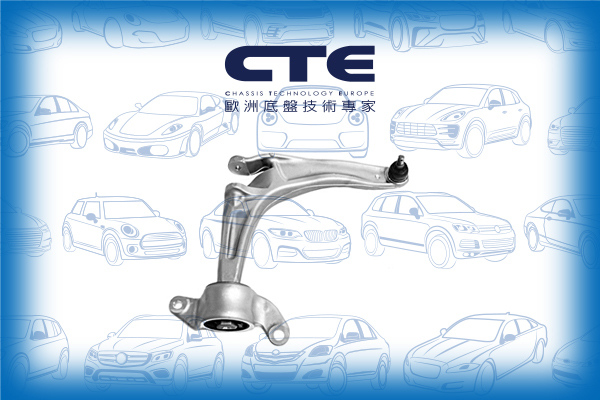

CS-151R | FRONT LOWER RH | 51350-SMG-E01 51350-SMG-E02 51350-SMG-E03 51350-SMG-E04 51350-SMG-E05 51350-SMG-E06 51350-SMG-E07 |
|
 |

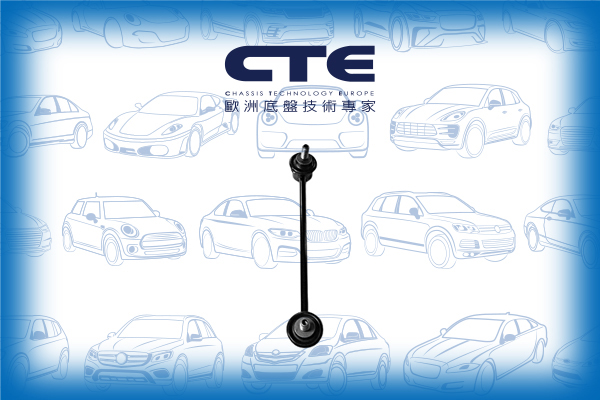

CSL01024 | FRONT (A= 226MM) | 51320-SMG-E01 |
| Model (Year) |
|---|
|
CIVIC VIII Saloon (FD, FA) |
