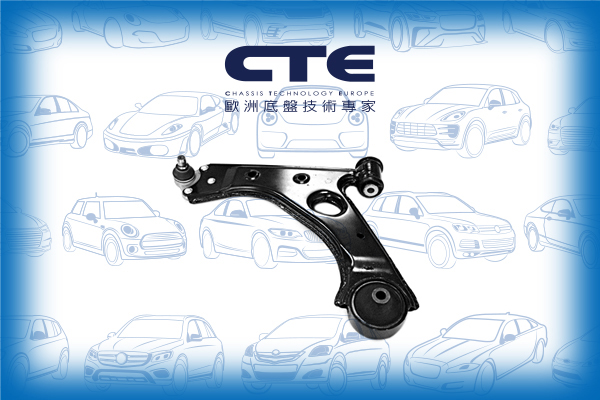

CS-1511L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 013426552 / 03 52 542 / 055703230 / 13426552 / 3 52 542 / 5352039 / 55703230 |
| Length | 336 mm |
| Width | 427 mm |
| Height | 85 mm |
| Net Weight | 2.93 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

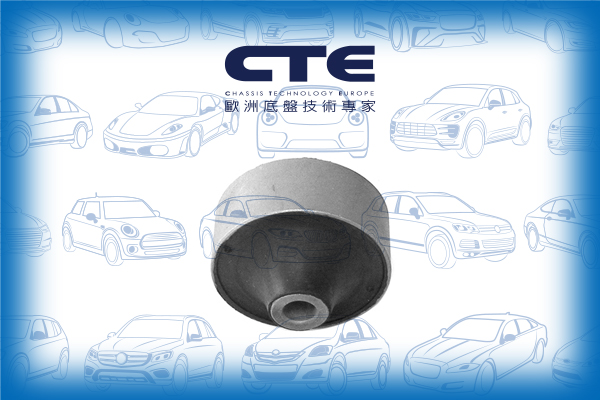

CBH15018 | FRONT LOWER ARM REAR | 13167940 3 52 864 |
|
 |
CBH15019 | FRONT LOWER ARM INNER | 03 52 380 13260666 13426552 13426553 3 52 542 3 52 543 51783056 51783057 51892271 5352038 5352039 55703230 55703231 55703232 |
|
 |
CBJ15008A | FRONT LOWER LH/ RH | 3 52 067 352087 93188808 93190907 |
|
 |
CS-1511L | FRONT LOWER LH | 013426552 03 52 542 055703230 13426552 3 52 542 5352039 55703230 |
|
 |

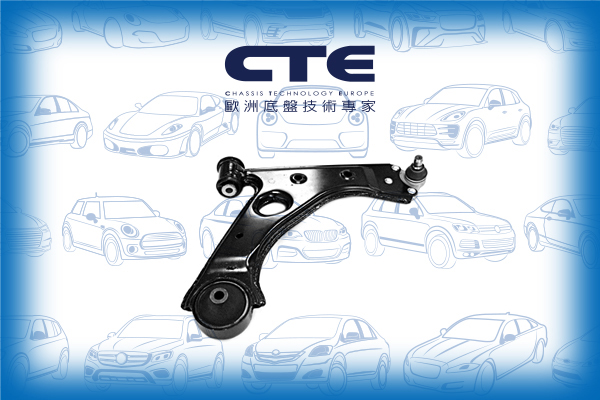

CS-1511R | FRONT LOWER RH | 013426553 03 52 543 055703231 13426553 3 52 543 5352038 55703231 |
| Model (Year) |
|---|
|
ADAM (M13) CORSA D (S07) CORSA D Hatchback Van (S07) |
| Model (Year) |
|---|
|
ADAM (M13) CORSA Mk III (D) (S07) CORSAVAN Mk III (D) Hatchback Van (S07) |
