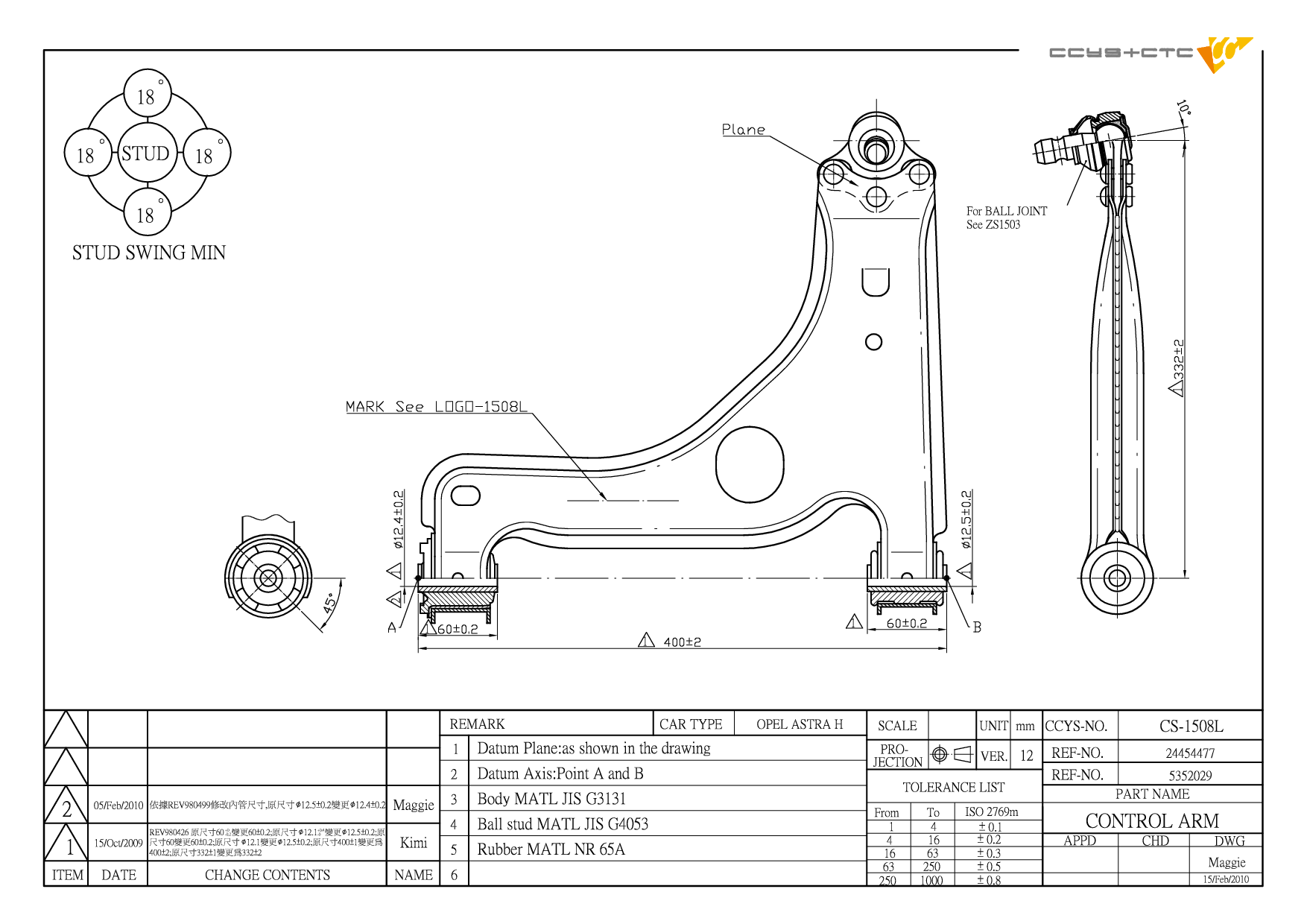

CS-1508L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 24454477 / 5352029 |
| Length | 387.1 mm |
| Width | 400.3 mm |
| Height | 89.7 mm |
| Net Weight | 3.63 kg |
VAUXHALL ASTRA Mk IV (G) Coupe (T98) Construction year from 05.2004 (A04) year from 04.2005 Mk V (H) (A04) code Z 17 DTJ year from 01.2006 to 06.2006 1.6i (L67) year from 11.2006 1.7 code A 17 DTR CHEVROLET VIN from 42125090 to 4G000001
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15005 | FRONT LOWER ARM INNER | 03 52 357 03 52 364 090468636 090498738 3 52 313 3 52 323 3 52 357 352 300 352 364 4566899 4645974 90157161 90468636 90498738 9191165 |
|
 |
CBJ15002A | FRONT LOWER LH/ RH | 03 52 800 03 52 829 090487561 090512982 3 52 800 3 52 829 90487561 90512982 90542995 |
|
 |
CS-1508L | FRONT LOWER LH | 24454477 5352029 |
|
 |
CS-1508R | FRONT LOWER RH | 24454478 5352030 |
| Model (Year) |
|---|
|
ZAFIRA (F75) | NABIRA |
| Model (Year) |
|---|
|
ASTRA H (A04) ASTRA H CLASSIC Estate (A04) | ASTRA H FAMILY ASTRA H CLASSIC Hatchback (A04) | ASTRA H FAMILY ASTRA H CLASSIC Saloon (A04) | ASTRA H FAMILY ASTRA H Estate (A04) ASTRA H Estate Van (L70) ASTRA H GTC (A04) ASTRA H Saloon (A04) | ASTRA A+ ASTRA H TwinTop (A04) MERIVA B MPV (S10) MERIVA B VAN (S10) ZAFIRA / ZAFIRA FAMILY B (A05) ZAFIRA B Box Body/MPV (A05) |
| Model (Year) |
|---|
|
9-3 Convertible (YS3F) |
| Model (Year) |
|---|
|
ASTRA Mk IV (G) Coupe (T98) ASTRA Mk IV (G) Estate (T98) ASTRA Mk V (H) (A04) ASTRA Mk V (H) Estate (A04) ASTRA Mk V (H) Sport Hatch (A04) ASTRA Mk V (H) TwinTop (A04) ASTRAVAN Mk V (H) Estate Van (A04) MERIVA Mk II (B) (S10) ZAFIRA Mk II (B) (A05) |
