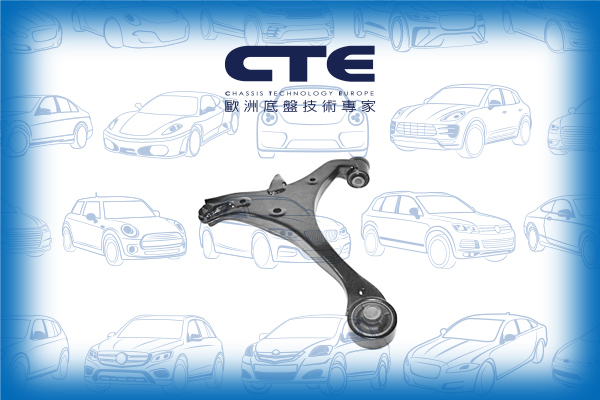

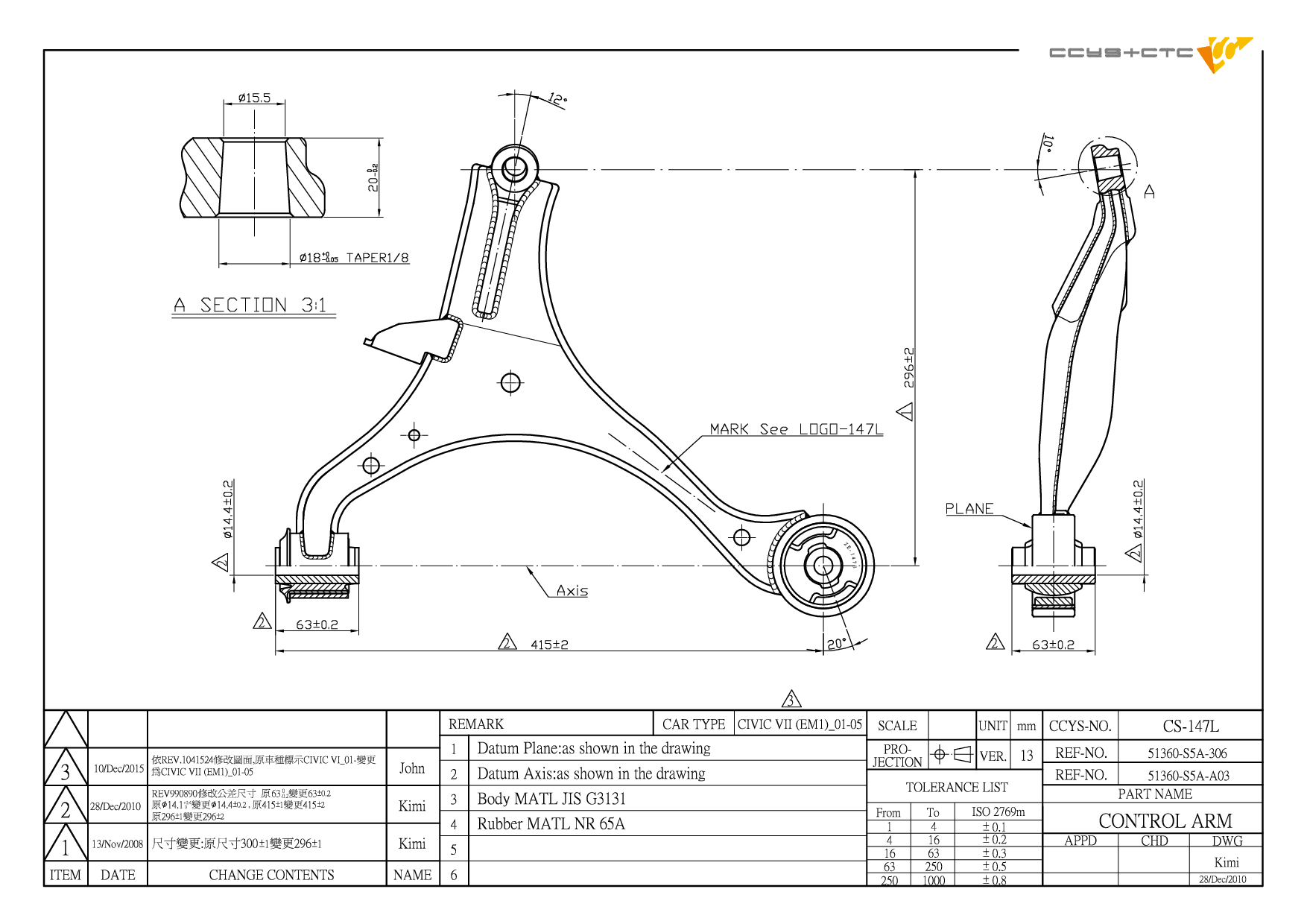

CS-147L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 51360-S5A-020 / 51360-S5A-030 / 51360-S5A-306 / 51360-S5A-800 / 51360-S5A-850 / 51360-S5A-A02 / 51360-S5A-A03 / 51360-S5A-A10 / 51360-S5A-E50 / 51360-S6A-000 / 51360-S6A-A00 / 51360-S6D-G00 |
| Length | 453.5 mm |
| Width | 357.5 mm |
| Height | 70 mm |
| Net Weight | 3.48 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

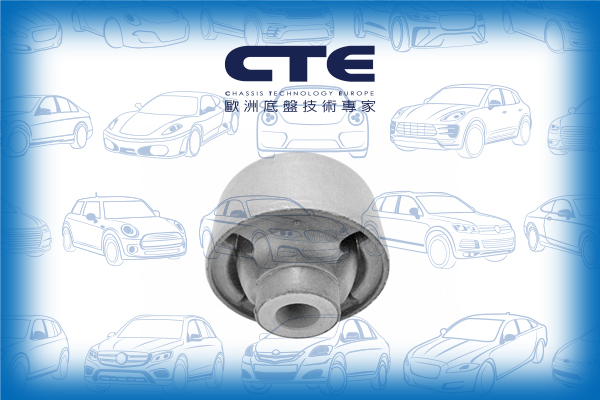

CBH01033 | FRONT LOWER ARM REAR | 51391-S5A-004 51391-S5A-014 51391-S5A-024 |
|
 |

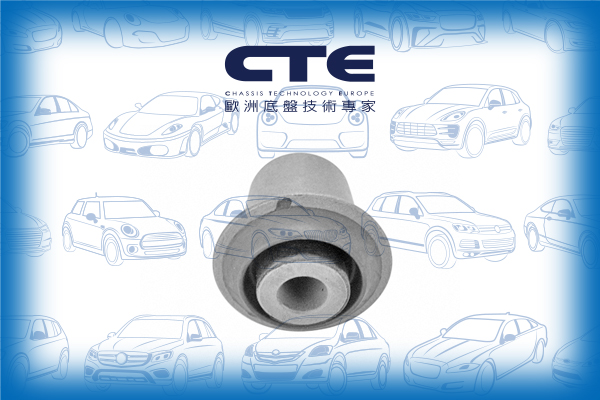

CBH01034 | FRONT LOWER ARM INNER | 51392-S5A-004 51392-S5A-701 51392-S5A-801 51392-S5A-851 52370-S5A-030 |
|
 |
CS-147L | FRONT LOWER LH | 51360-S5A-020 51360-S5A-030 51360-S5A-306 51360-S5A-800 51360-S5A-850 51360-S5A-A02 51360-S5A-A03 51360-S5A-A10 51360-S5A-E50 51360-S6A-000 51360-S6A-A00 51360-S6D-G00 |
|
 |
CS-147R | FRONT LOWER RH | 51350-S5A-020 51350-S5A-030 51350-S5A-306 51350-S5A-800 51350-S5A-850 51350-S5A-A02 51350-S5A-A03 51350-S5A-A10 51350-S5A-E50 51350-S6A-000 51350-S6A-A00 51350-S6D-G00 |
|
 |

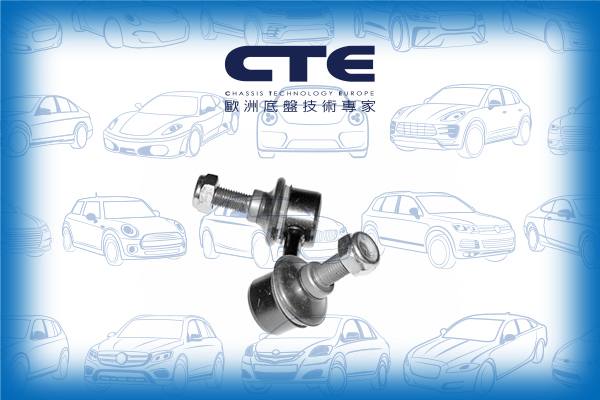

CSL01014L | FRONT LH (A= 55MM) | 51321-S5A-003 51321-S5A-003A 51321-S5A-305 |
|
 |

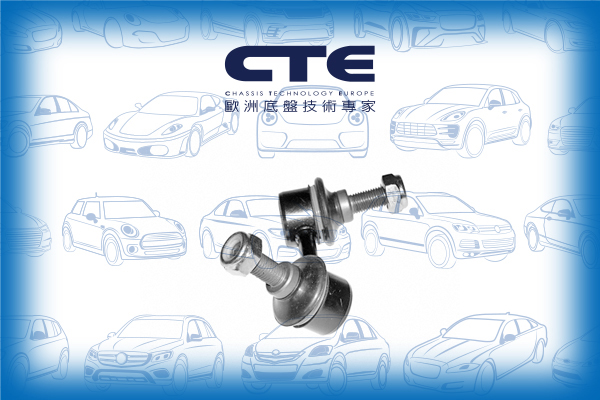

CSL01014R | FRONT RH (A= 55MM) | 51320-S5A-003 51320-S5A-003A 51320-S5A-305 |
|
 |

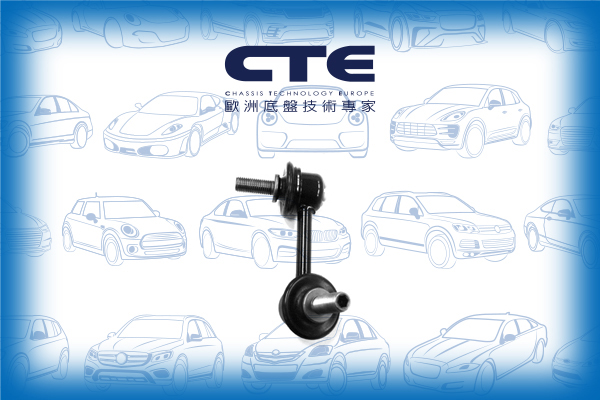

CSL01029L | REAR LH (A= 72MM) | 52321-S5A-013 |
|
 |

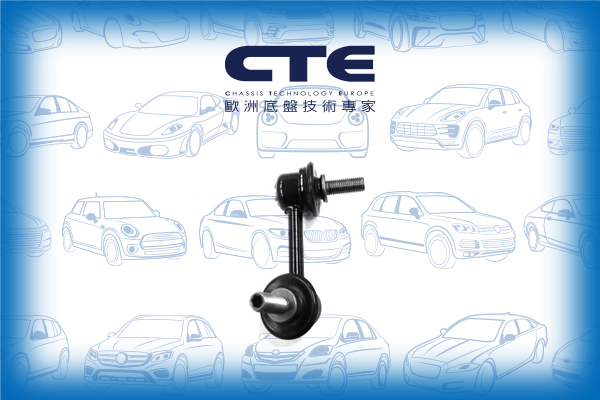

CSL01029R | REAR RH (A= 72MM) | 52320-S5A-013 |
|
 |
CTE01009 | FRONT AXLE LH/ RH (C= M14X1.5) | 53541-S5A-003 53541-S7A-003 53542-SCV-A01 |
| Model (Year) |
|---|
|
CIVIC VII Coupe (EM2) CIVIC VII Hatchback (EU, EP, EV) CIVIC VII Saloon (ES, ET) | CIVIC FERIO |
