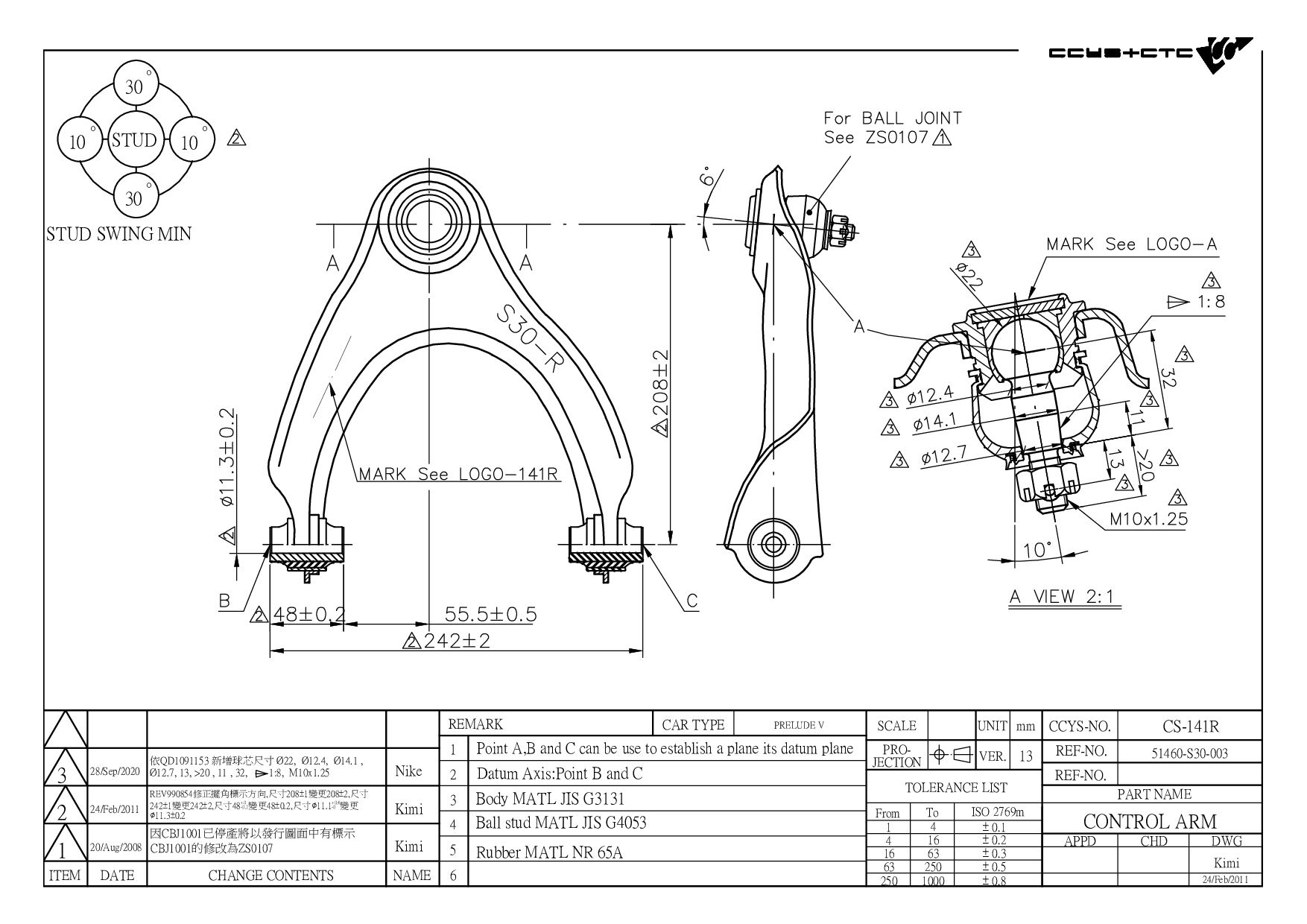

CS-141R
| Designation | Control Arm |
| Position | FRONT UPPER RH |
| OE No. | 51450-S30-003 |
| Length | 271 mm |
| Width | 244 mm |
| Height | 85 mm |
| Net Weight | 1.38 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01012 | FRONT UPPER ARM INNER | 51450-S01-023 51450-S01-A02 51450-S04-010 51450-S04-013 51450-S10-020 51450-S30-003 51460-S01-023 51460-S01-A02 51460-S04-010 51460-S04-013 51460-S10-020 51460-S30-003 |
|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |

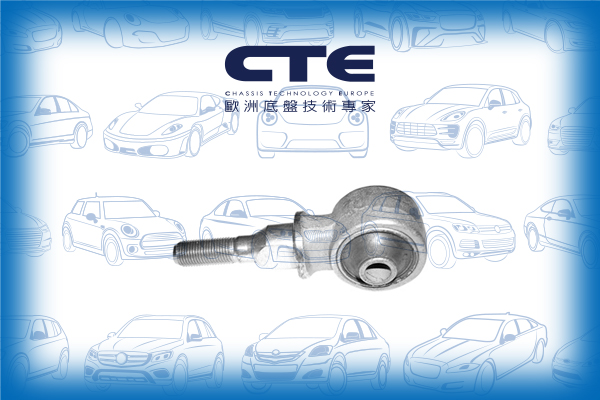

CBH01031 | FRONT UPPER ARM INNER | 51450-SS0-003 51450-SS0-A01 51460-SS0-003 51460-SS0-A01 52390-S30-003 52400-S30-003 |
|
 |

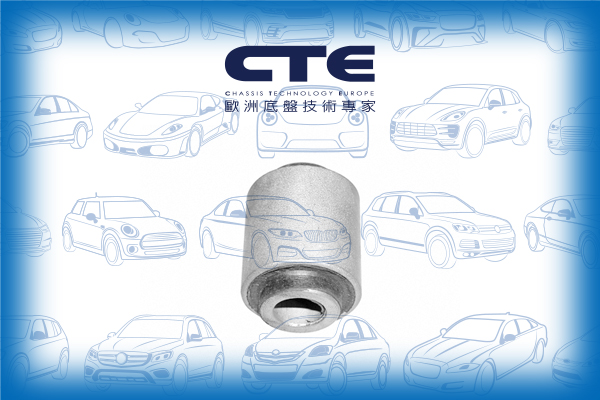

CBH01032 | REAR LINK INNER | ||
 |

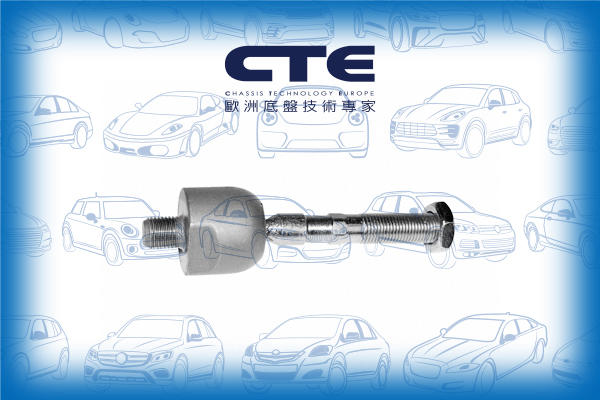

CRE01016 | D= M14X1.5 , C= M14X1.5 | 53521-SL4-014 |
|
 |
CRE01021 | D= M14X1.5 , C= M14X1.25 | 53010-SS0-000 53010-SW5-000 53010-SW5-003 53010-SW5-003A |
|
 |

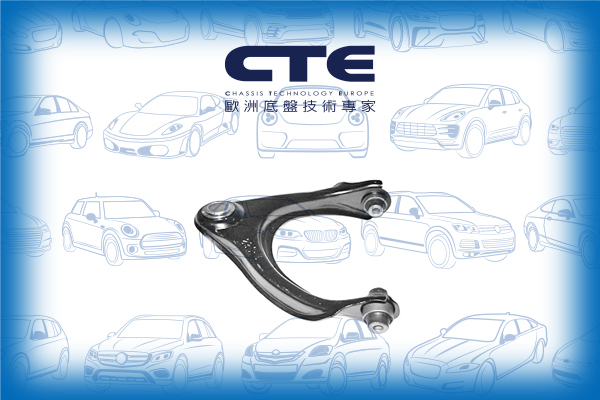

CS-141L | FRONT UPPER LH | 51460-S30-003 |
|
 |

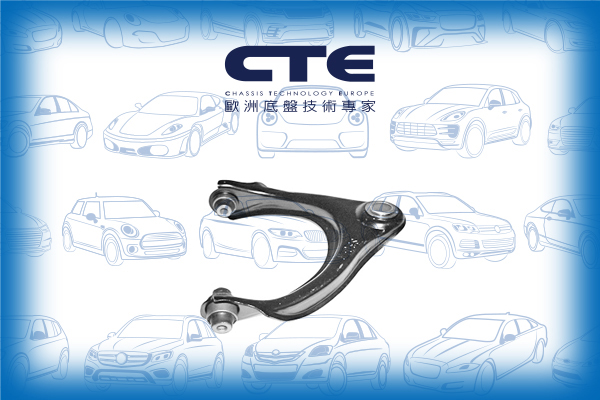

CS-141R | FRONT UPPER RH | 51450-S30-003 |
| Model (Year) |
|---|
|
PRELUDE V (BB_) |
