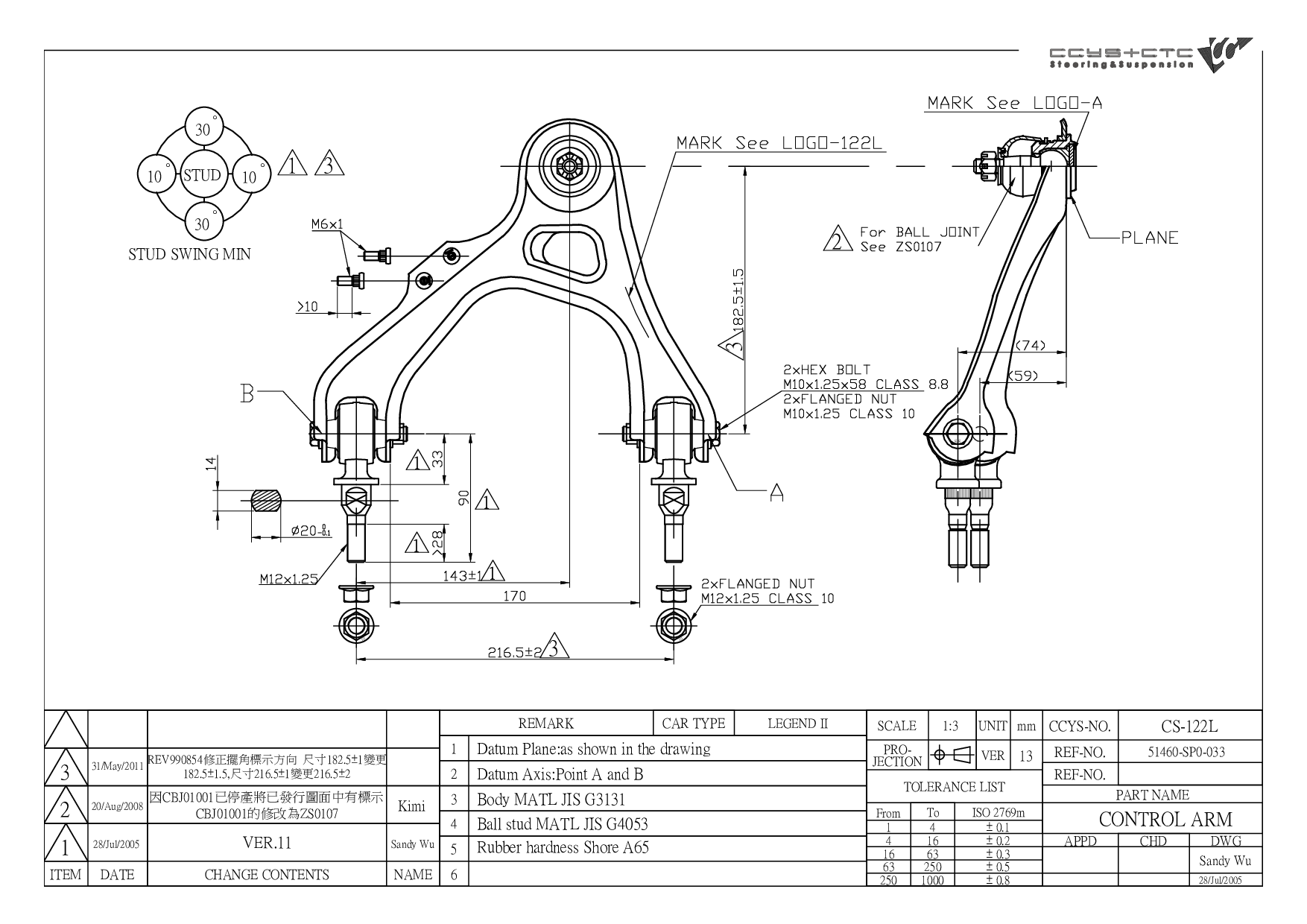

CS-122L
| Designation | Control Arm |
| Position | FRONT UPPER LH |
| OE No. | 51460-SP0-033 / 51460-SP0-A01 / 51460-SP0-A02 |
| Length | 280 mm |
| Width | 302 mm |
| Height | 104 mm |
| Net Weight | 1.7 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01018 | FRONT UPPER ARM OUTER | 52390-SP0-013 52400-SP0-013 |
|
 |
CBH01019 | FRONT UPPER ARM INNER | 52390-SP0-013 52400-SP0-013 |
|
 |
CRE01014 | D= M14X1.5 , C= M16X1.25 | 53521-SP0-004 |
|
 |
CS-122L | FRONT UPPER LH | 51460-SP0-033 51460-SP0-A01 51460-SP0-A02 |
|
 |
CS-122R | FRONT UPPER RH | 51450-SP0-033 51450-SP0-A01 51450-SP0-A02 |
|
 |
CS-123L | REAR UPPER LH | 52400-SP0-013 |
|
 |
CS-123R | REAR UPPER RH | 52390-SP0-013 |
|
 |
CSL01023 | FRONT (A= 79MM) | 51320-SP0-003 |
| Model (Year) |
|---|
|
LEGEND II LEGEND II Coupe |
