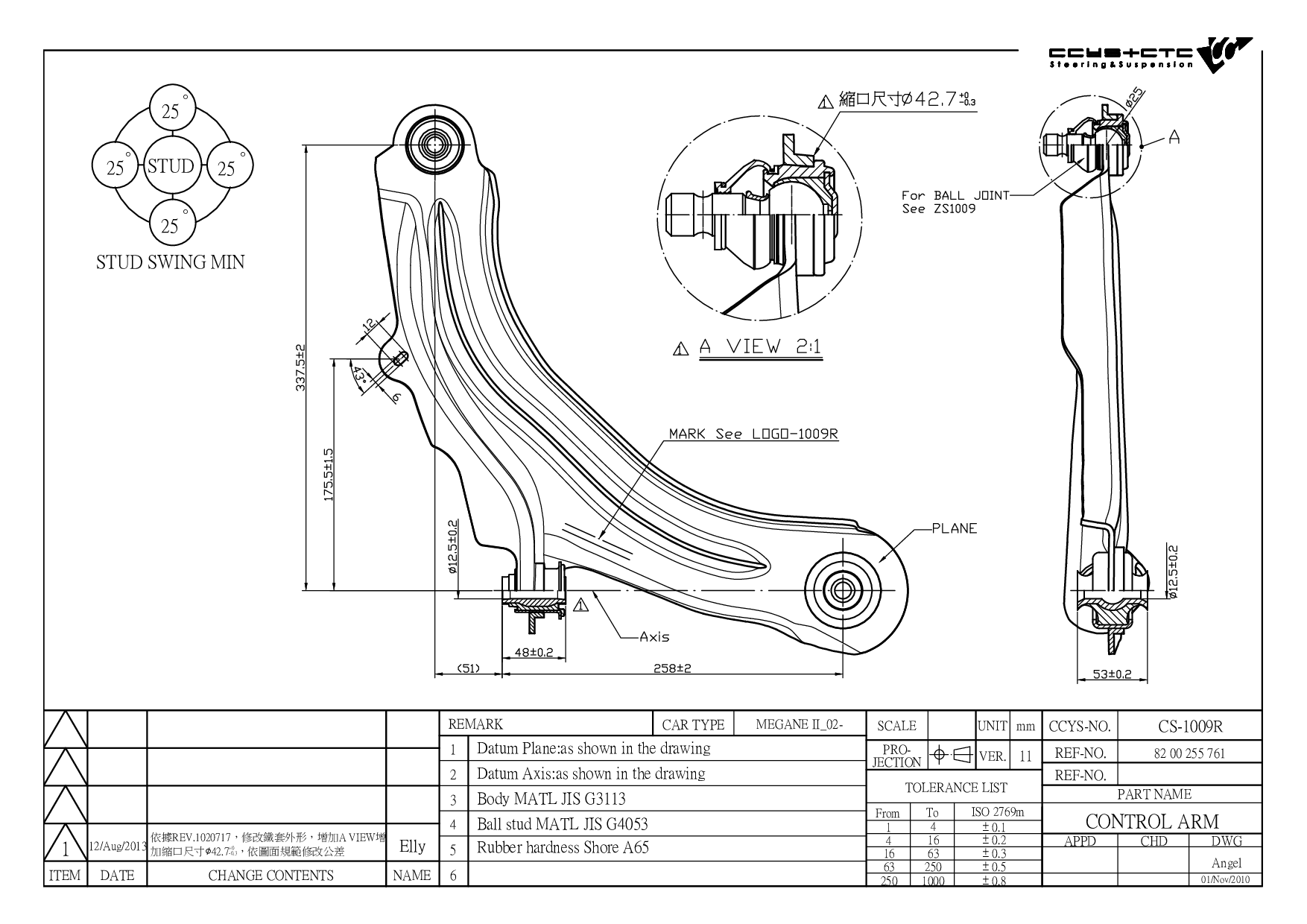

CS-1009R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 82 00 243 086 / 82 00 255 761 |
| Length | 416.2 mm |
| Width | 403.4 mm |
| Height | 79.8 mm |
| Net Weight | 3 kg |
RENAULT MEGANE II (BM0
1_,CM0
1_) Construction year to 01.2003
12.2002
01.2003
1_,CM0
1_) Construction year to 01.2003
12.2002
01.2003
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH10010 | FRONT LOWER ARM REAR | 54 50 461 62R 54 50 468 17R 54 50 485 06R 54 50 499 68R 54 50 503 99R 54 50 505 10R 54 50 523 54R 54 50 557 11R 62 5B 422 88R 82 00 041 166 |
|
 |
CBH10011 | FRONT LOWER ARM INNER | 82 00 242 025 |
|
 |
CBJ10005 | FRONT LOWER LH/ RH | 401604793R 82 00 298 455S 82 00 298 760 82 00 298 761 |
|
 |
CBJ10008 | FRONT LOWER LH/ RH | 70 00 437 138 77 00 437 137 82 00 041 279 82 00 041 282 82 00 243 086 82 00 243 089 82 00 255 760 82 00 255 761 82 00 739 482 82 00 739 484 |
|
 |
CRE10005 | D= M14X1.5 , C= M14X1.5 | 77 01 474 448 |
|
 |
CS-1006L | FRONT LOWER LH | 54 50 547 52R 545017775R 545053170R 545059335R 82 00 298 454 82 00 364 388 82 00 457 208 82 00 679 063 |
|
 |
CS-1006R | FRONT LOWER RH | 54 50 429 11R 545003037R 545040131R 545045743R 7474022 82 00 298 455 82 00 364 391 82 00 457 209 82 00 679 067 82 00 725 673 |
|
 |

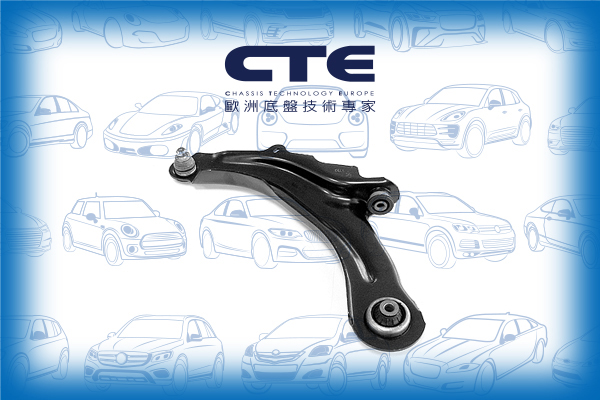

CS-1009L | FRONT LOWER LH | 82 00 243 089 82 00 255 760 |
|
 |
CS-1009R | FRONT LOWER RH | 82 00 243 086 82 00 255 761 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |
CSL10003 | FRONT (A= 283.5MM) | 415 320 01 89 54 61 819 25R 82 00 166 159 82 00 669 065 A415 320 01 89 |
| Model (Year) |
|---|
|
MEGANE II (BM0/1_, CM0/1_) |
