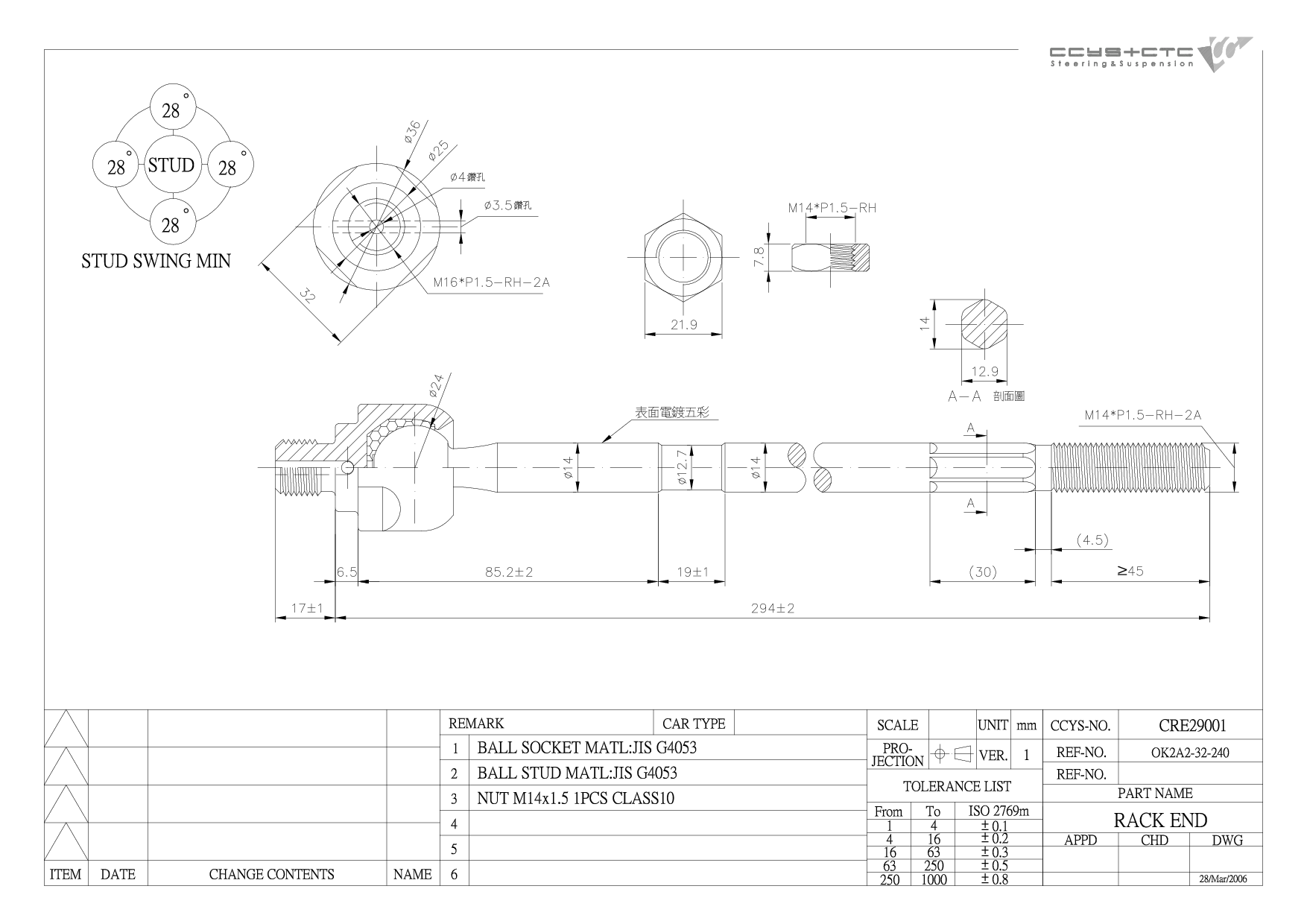

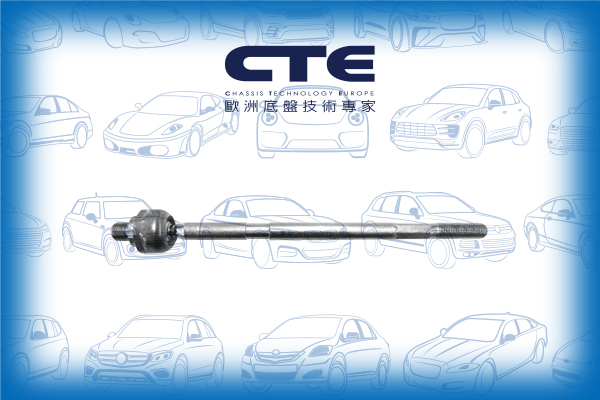

CRE29001
| Designation | Rack End |
| Position | D= M14X1.5 , C= M16X1.5 |
| OE No. | 0K2A2-32-240 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.52 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH29009L | FRONT LOWER ARM LH REAR | ||
|
CBH29009R | FRONT LOWER ARM RH REAR | ||
|
CBH29010 | FRONT LOWER ARM INNER | ||
 |
CRE29001 | D= M14X1.5 , C= M16X1.5 | 0K2A2-32-240 |
|
 |
CS-2909L | FRONT LOWER LH | 0K2C0-34-350 0K2C0-34-350A 0K2NA-34-350 0K2NA-34-350A 0K2NA-34-350B 0K2NA-34-350P OK2C0-34-350 OK2NA-34-350 OK2NA-34-350A OK2NA-34-350B |
|
 |
CS-2909R | FRONT LOWER RH | 0K2C0-34-300 0K2C0-34-300A 0K2NA-34-300 0K2NA-34-300A 0K2NA-34-300B OK2C0-34-300 OK2NA-34-300 OK2NA-34-300A OK2NA-34-300B |
|
 |
CSL29005L | FRONT LH (A= 273.5MM) | 0K2N1-34-170A 0K2N1-34-170AAS |
|
 |
CSL29005R | FRONT RH (A= 273.5MM) | 0K2N1-34-150A 0K2N1-34-150AAS |
|
|
CSL29011 | REAR AXLE LH/RH | 0K2A1-34-150B |
| Model (Year) |
|---|
|
CARENS I MPV (FC, FJ) | X-TREK |
