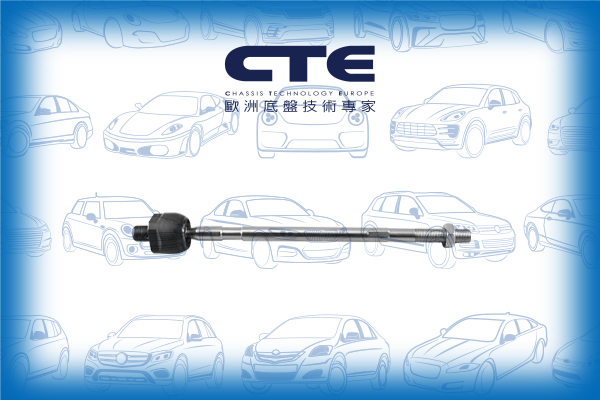

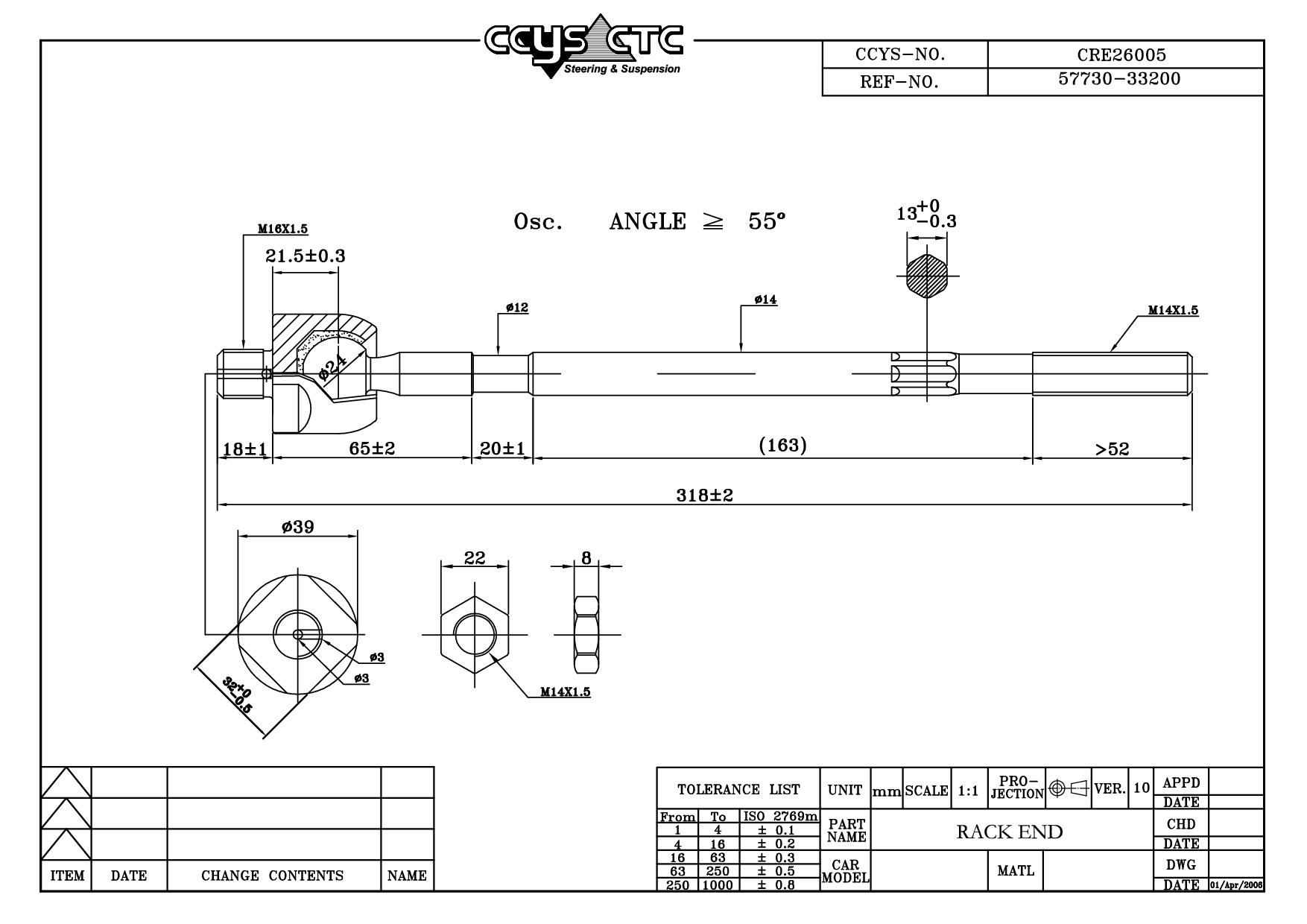

CRE26005
| Designation | Rack End |
| Position | D= M14X1.5 , C= M16X1.5 |
| OE No. | 57730-33200 |
| Length | 318 mm |
| Width | 39 mm |
| Height | 39 mm |
| Net Weight | 0.54 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ05010 | FRONT LOWER LH/ RH | 4013A033 4013A034 4013A175 AW 311699 MB 133618 MB 241883 MB 349963 MB 349964 MB 518041 MB 518042 MB 518205 MB 518712 MB 518713 MB 518960 MB 518961 MB 573093 MB 573094 MB 573098 MB 860817 MB 860818 MB 891787 MB 891788 MN 133617 |
|
 |
CBJ26003 | FRONT LOWER LH/RH | 54500-1J500 54500-1J600 54500-1J700 54500-22000 54500-22100 54500-22200 54500-27000 54500-29000 54500-29500 54501-1J500 54501-1J600 54501-1J700 54501-22000 54501-22100 54501-22200 54501-27000 54501-29000 54501-29500 54503-22000 54503-22A00 54503-25A00 545 |
|
 |
CRE26002 | D= M14X1.5 , C= M16X1.5 | 56540-28020 57730-33100 |
|
 |
CRE26005 | D= M14X1.5 , C= M16X1.5 | 57730-33200 |
|
 |
CRE26009 | D= M14X1.5 , C= M16X1.5 | 57716-34000 57724-3A000 57755-17000 57785-26200 |
|
 |
CSL05009 | FRONT (A= 89MM) | 4056A038 42311-60A00 42311-85C00 42420-65D00 42420-67D00 56830-36000 56830-36100 56830-36101 MB 518780 MB 518781 MB 573540 |
|
 |
CSL26003 | FRONT (A= 50MM) | 54830-2D000 54830-34000 54830-34500 |
|
 |
CSL26032 | FRONT AXLE LH/ RH | 54830-36000 54830-36100 54830-36101 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
SONATA II (Y-2) |
