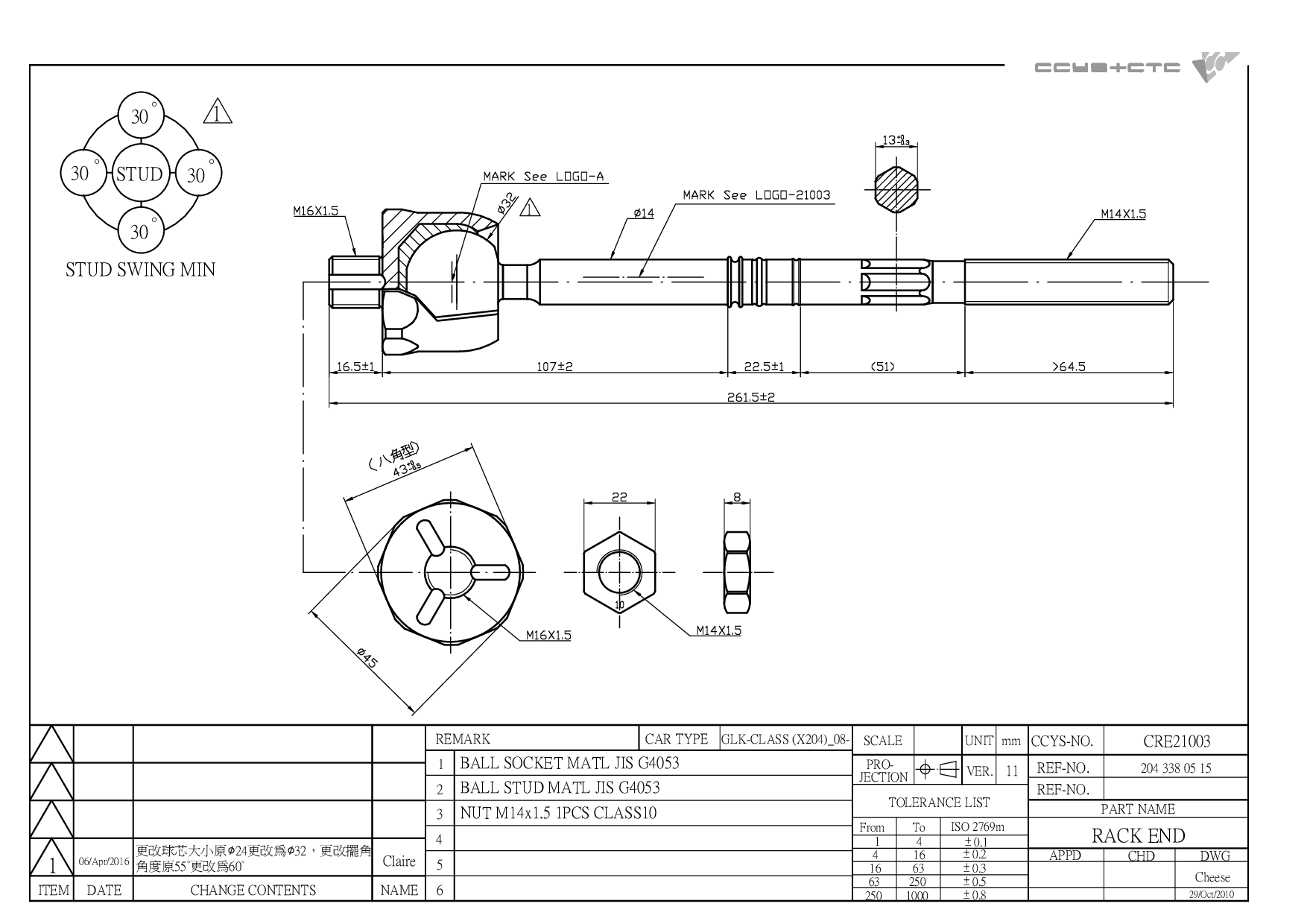

CRE21003
| Designation | Rack End |
| Position | D= M14X1.5 , C= M16X1.5 |
| OE No. | 204 338 03 15 / 204 338 05 15 / A204 338 03 15 / A204 338 05 15 |
| Length | 262 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net Weight | 0.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21035 | FRONT UPPER ARM INNER | 204 333 11 14 A204 333 11 14 |
|
 |
CBH21060 | REAR AXLE LOWER ARM INNER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |
CBH21061 | REAR AXLE LOWER ARM OUTER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |
CRE21003 | D= M14X1.5 , C= M16X1.5 | 204 338 03 15 204 338 05 15 A204 338 03 15 A204 338 05 15 |
|
 |
CS-2135L | FRONT UPPER LH | 204 330 73 11 204 330 90 11 A204 330 73 11 A204 330 90 11 |
|
 |
CS-2135R | FRONT UPPER RH | 204 330 74 11 204 330 91 11 A204 330 74 11 A204 330 91 11 |
|
 |
CS-2139L | FRONT UPPER LH | 204 330 73 11 204 330 90 11 A204 330 73 11 A204 330 90 11 CS-2135L+CBH21035 |
|
 |
CS-2139R | FRONT UPPER RH | 204 330 74 11 204 330 91 11 A204 330 74 11 A204 330 91 11 CS-2135R+CBH21035 |
|
 |
CS-2168L | REAR AXLE LOWER LH | 204 350 05 53 205 350 65 03 A204 350 05 53 A205 350 65 03 |
|
 |
CS-2168R | REAR AXLE LOWER RH | 204 350 06 53 205 350 66 03 A204 350 06 53 A205 350 66 03 |
|
 |
CSL21023L | REAR LH | 204 320 05 89 A204 320 05 89 |
|
 |
CSL21023R | REAR RH | 204 320 04 89 A204 320 04 89 |
| Model (Year) |
|---|
|
C-CLASS (W204) C-CLASS Coupe (C204) C-CLASS T-Model (S204) E-CLASS (W212) E-CLASS Coupe (C207) E-CLASS T-Model (S212) GLK-CLASS (X204) S-CLASS (W221, V221) S-CLASS Coupe (C216) |
