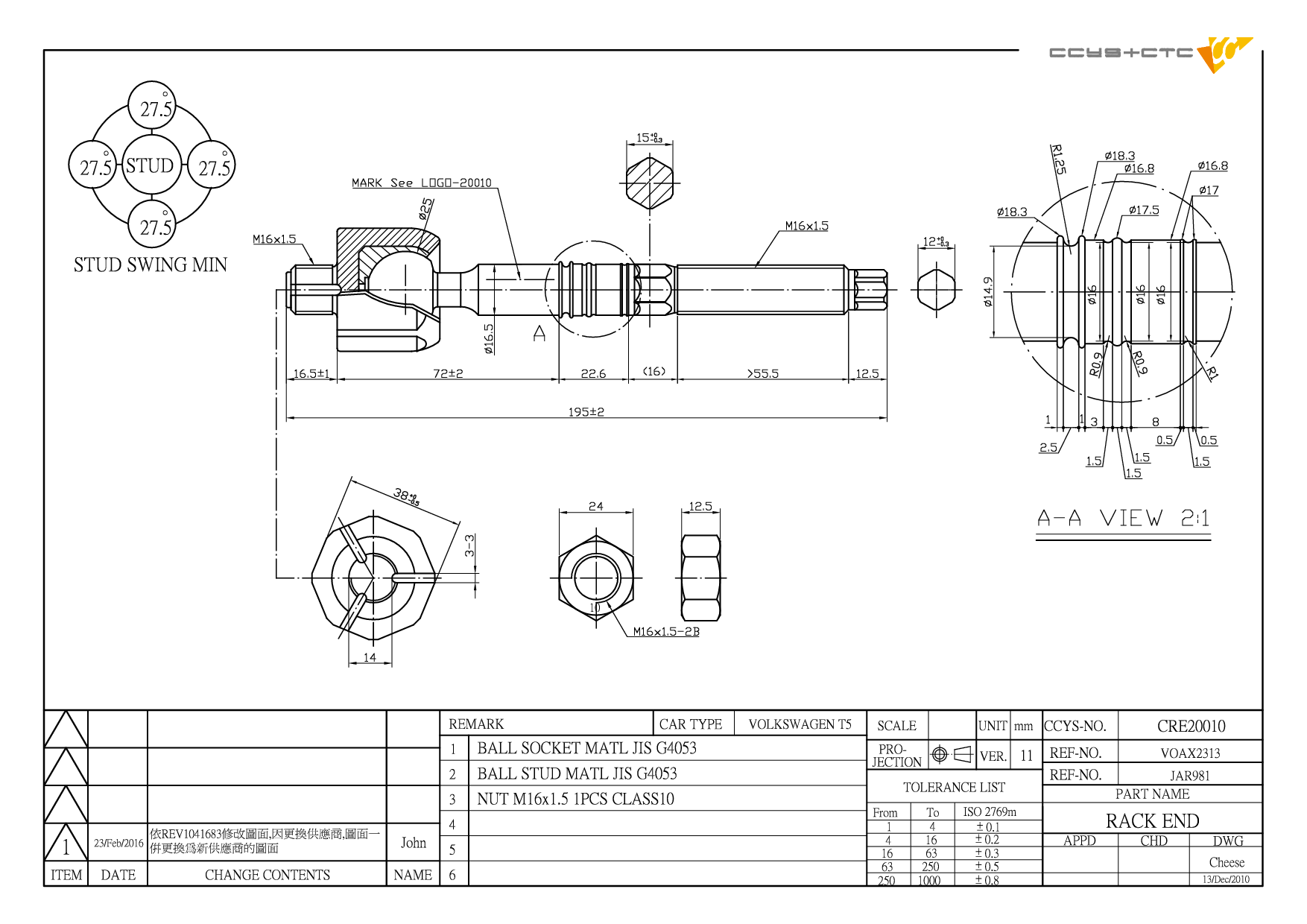

CRE20010
| Designation | Rack End |
| Position | D= M16X1.5 , C= M16X1.5 |
| OE No. | 7H0 422 807 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.51 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ20009 | FRONT LOWER LH/ RH | 7576024 7E0 407 361 7E0 407 361A 7H0 407 361 7H0 407 361A 7H8 407 361 7H8 407 361A 7H8 407 362 |
|
 |
CBJ20009A | FRONT LOWER LH/ RH | 7576024 7E0 407 361 7E0 407 361A 7H0 407 361 7H0 407 361A 7H8 407 361 7H8 407 361A 7H8 407 362 |
|
 |
CRE20010 | D= M16X1.5 , C= M16X1.5 | 7H0 422 807 |
|
 |
CSL20015 | FRONT (A= 260MM) | 7H0 411 317 7H0 411 317A 7H5 411 317 7H5 411 317A 7H5 411 317B 7H5 411 317D 7H5 411 317E |
|
 |
CSR20001L | FRONT AXLE LH | 7E0 419 803 7H0 419 803B 7H0 419 803C 7H0 419 803D 7H0 419 803E 7H0 419 803F |
|
 |
CSR20001R | FRONT AXLE RH | 7E0 419 804 7H0 419 804B 7H0 419 804C 7H0 419 804D 7H0 419 804E 7H0 419 804F |
|
 |
CTE20004L | FRONT AXLE LH (C= M16X1.5) | 7E0 422 817 7H0 422 817A 7H0 422 817B 7H0 422 817C 7H0 422 817D |
|
 |
CTE20004R | FRONT AXLE RH (C= M16X1.5) | 7E0 422 818 7H0 422 818A 7H0 422 818B 7H0 422 818C 7H0 422 818D |
| Model (Year) |
|---|
|
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) | CARAVELLE TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) | TRANSPORTER / CARAVELLE | EUROVAN | CARAVELLE TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ) | TRANSPORTER / CARAVELLE TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ TRANSPORTER T6 Van (SGA, SGH, SHA, SHH) |
