CRE15005

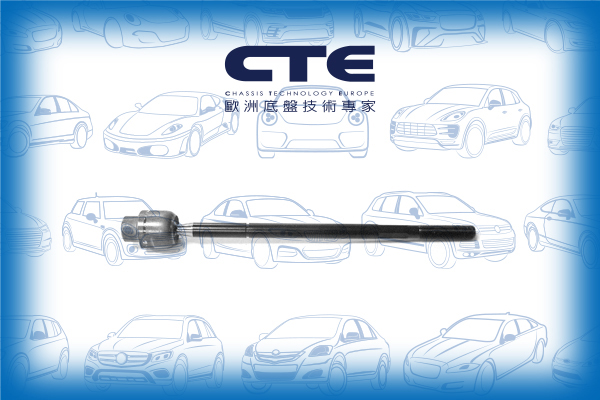

| Designation | Rack End |

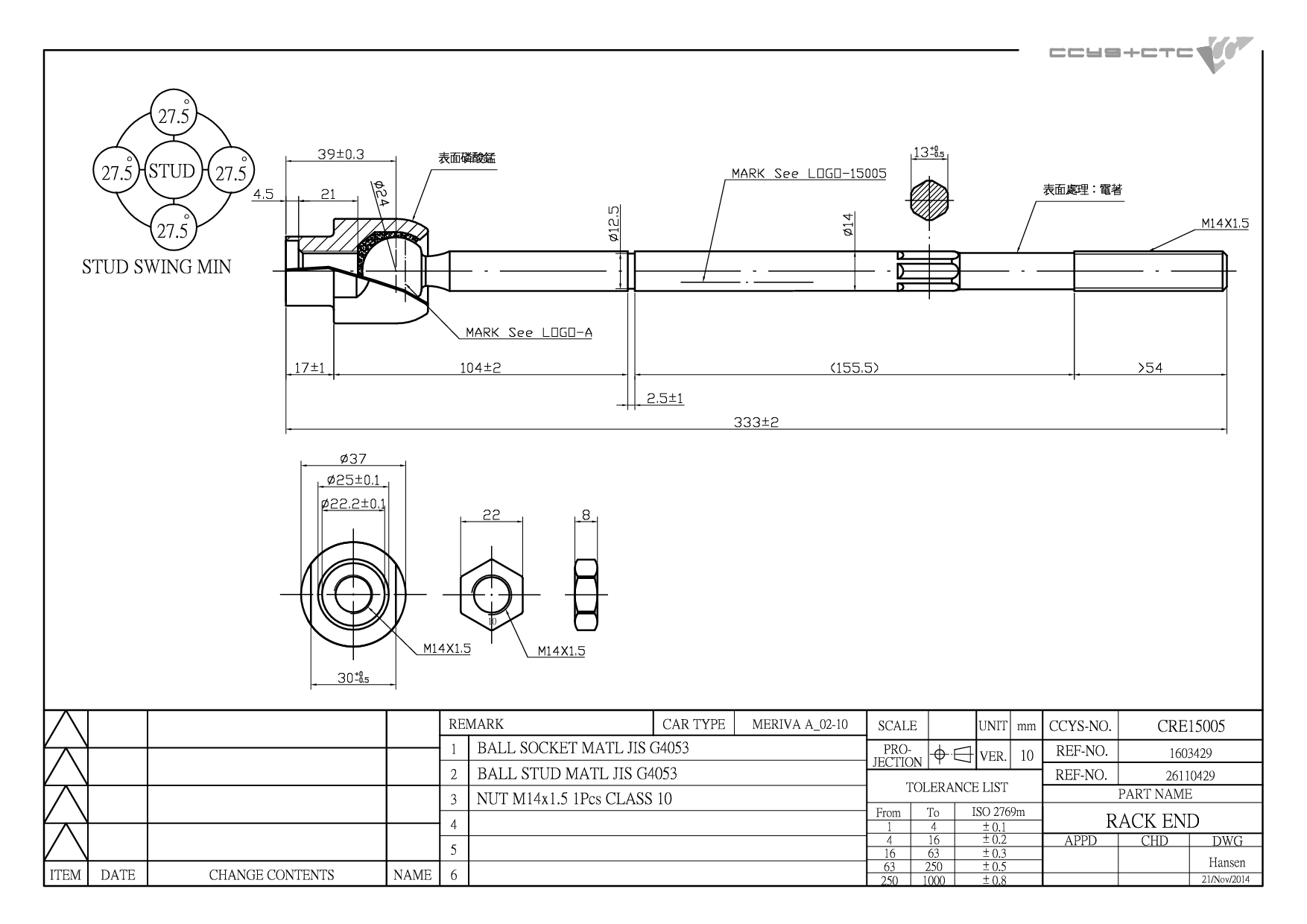

| Position | D= M14X1.5 , C= M14X1.5 |
| OE No. | 1603429 / 26110429 / 93192416 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.63 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15009 | FRONT LOWER ARM INNER | 03 52 309 03 52 366 03 52 377 03 52 378 09199576 09199961 24428980 24428982 3 52 366 3 52 377 3 52 378 352309 9 199 961 9199576 93 188 302 93188303 |
|
 |
CBH15010 | FRONT LOWER ARM REAR | ||
 |
CBH15013 | FRONT LOWER ARM INNER (W/ BRACKET) | 03 52 309 03 52 366 03 52 377 03 52 378 09199576 09199961 24428980 24428982 3 52 366 3 52 377 3 52 378 352309 9 199 961 9199576 93 188 302 93188303 |
|
 |
CBJ15006LA | FRONT LOWER LH | 03 52 085 3 52 085 53 52 025 93174598 93190905 |
|
 |
CBJ15006RA | FRONT LOWER RH | 03 52 086 3 52 086 53 52 026 93174599 93190906 |
|
 |
CRE15005 | D= M14X1.5 , C= M14X1.5 | 1603429 26110429 93192416 |
|
 |
CS-1510L | FRONT LOWER LH | 03 52 088 13279533 3 52 088 5352027 93388568 |
|
 |
CS-1510R | FRONT LOWER RH | 03 52 090 13279534 3 52 090 5352028 93388569 |
|
 |
CSL27006 | FRONT (A= 243.5MM) | 03 50 610 03 50 616 04 686 606 090496116 3 50 610 4 686 606 4686606 52 36 823 90496116 |
| Model (Year) |
|---|
|
MERIVA A MPV (X03) |
