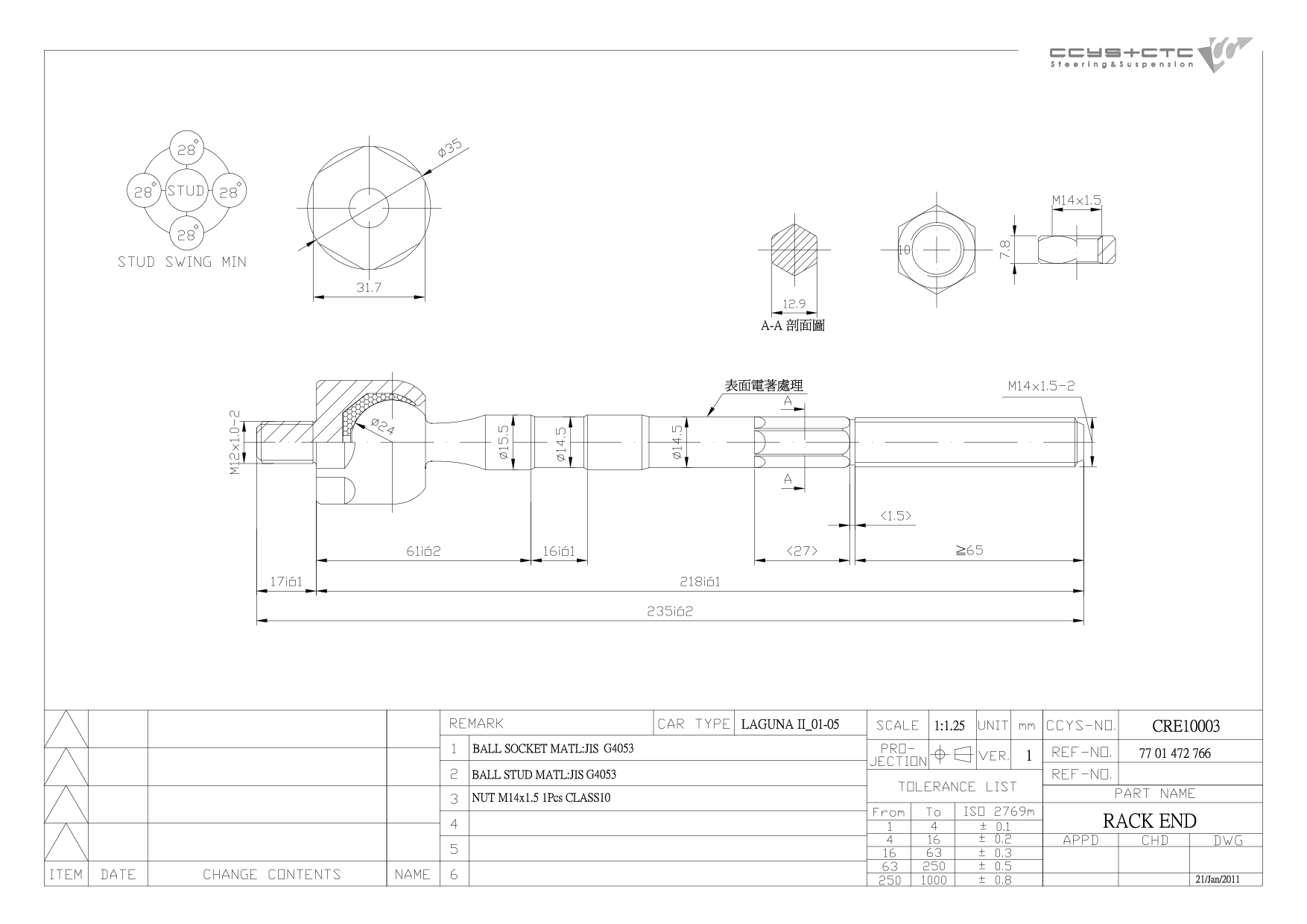

CRE10003
| Designation | Rack End |
| Position | D= M14X1.5 , C= M12X1.0 |
| OE No. | 77 01 472 766 / 77 01 478 551 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.44 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH10008 | FRONT LOWER ARM REAR | 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 869 82 00 049 626 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82 |
|
 |
CBH10009 | FRONT LOWER ARM INNER | 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 868 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82 00 602 617 82 |
|
 |
CRE10003 | D= M14X1.5 , C= M12X1.0 | 77 01 472 766 77 01 478 551 |
|
 |
CS-1005L | FRONT LOWER LH | 54 50 168 05R 82 00 026 654 82 00 232 030 82 00 273 728 82 00 389 134 82 00 452 715 82 00 602 612 |
|
 |
CS-1005R | FRONT LOWER RH | 54 50 020 29R 82 00 026 655 82 00 232 032 82 00 273 729 82 00 389 135 82 00 452 716 82 00 602 613 |
|
 |
CSL15013 | FRONT (A= 279MM) | 44 07 573 44 08 904 44 17 973 54616-00Q0A 54616-00Q0J 54616-00Q1C 54616-00Q1F 54616-00QAC 546180393R 546181944R 6000640472 7711160426 82 00 002 870 8200661217 8660005547 91167000 93450030 93858917 |
| Model (Year) |
|---|
|
LAGUNA II (BG0/1_) LAGUNA II Grandtour (KG0/1_) LAGUNA III (BT0/1) |
