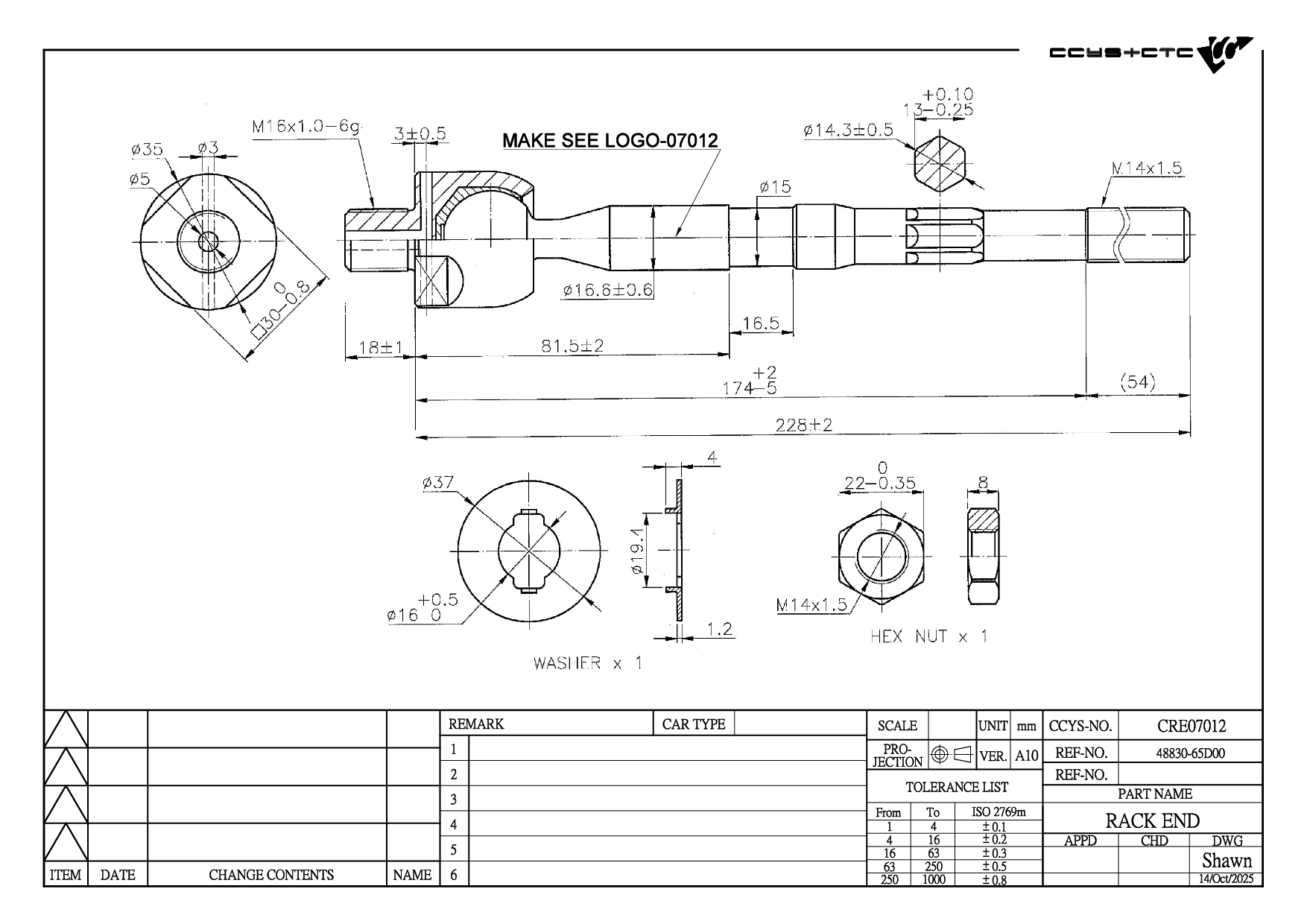

CRE07012
| Designation | Rack End |
| Position | FRONT AXLE LH/ RH |
| OE No. | 48830-65D00 / 48830-65D00-000 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

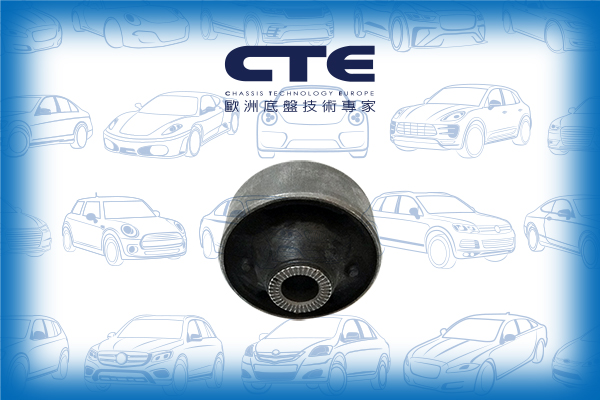

CBH07019 | FRONT LOWER ARM REAR | 45201-78K00 45202-78K00 45251-65J00 |
|
 |

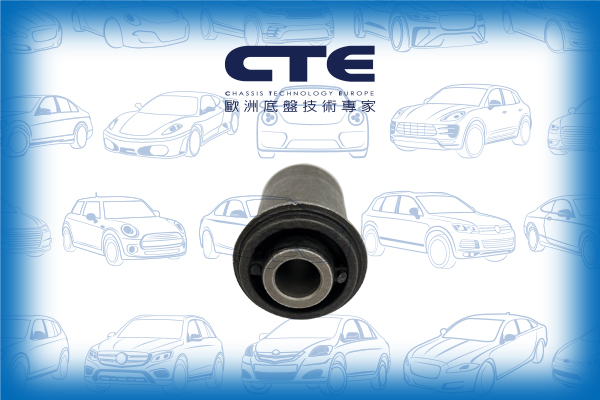

CBH07020 | FRONT LOWER ARM INNER | 45201-78K00 45202-78K00 45261-65J00 |
|
 |

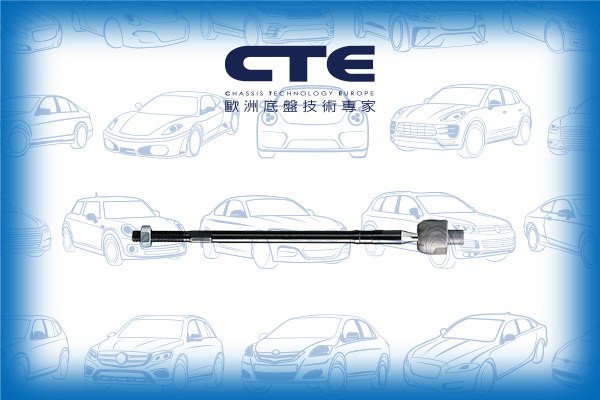

CRE07011 | FRONT AXLE LH/ RH | 48830-65J00 48830-65J00-000 |
|
 |

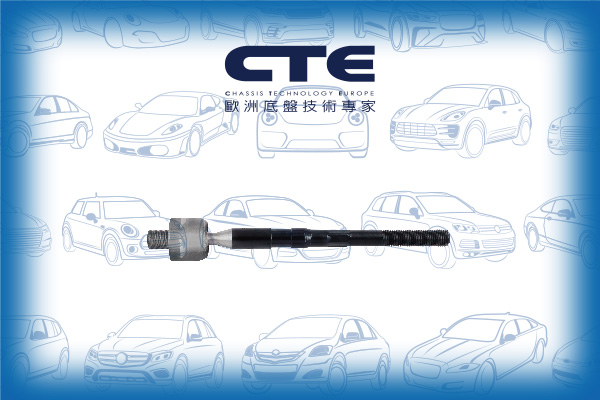

CRE07012 | FRONT AXLE LH/ RH | 48830-65D00 48830-65D00-000 |
|
 |

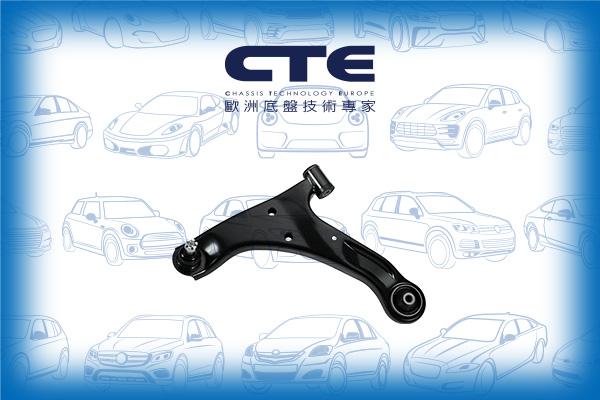

CS-720L | FRONT LOWER LH | 45202-65J00 45202-65J00-000 45202-78K00 45202-78K00-000 |
|
 |

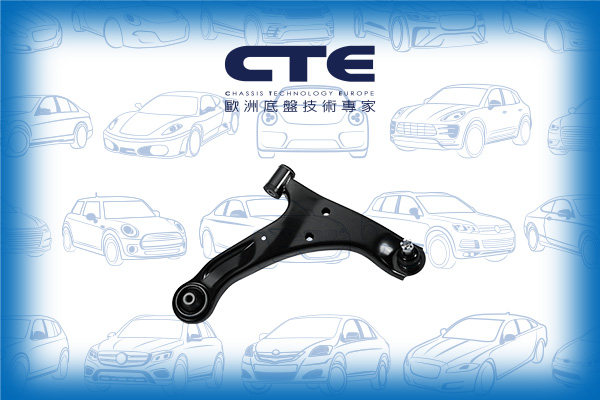

CS-720R | FRONT LOWER RH | 45201-65J00 45201-65J00-000 45201-78K00 45201-78K00-000 |
|
 |

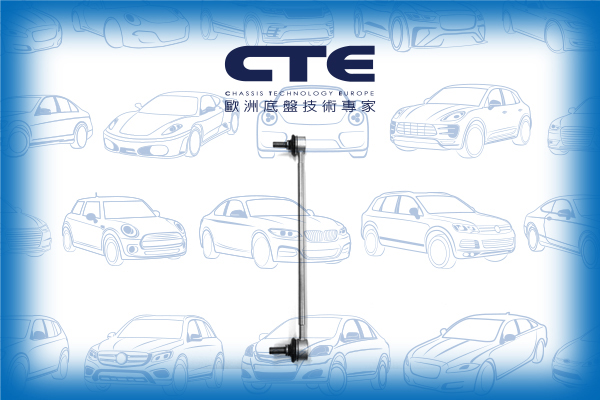

CSL07007 | FRONT (A= 300MM) | 42420-65J00 42420-65J00-000 42420-65J01-000 |
| Model (Year) |
|---|
|
GRAND VITARA I (FT, HT) | GRAND VITARA XL-7 | GRAND ESCUDO GRAND VITARA I Open Off-Road Vehicle (GT) GRAND VITARA II (JT, TE, TD) | GRAND VITARA XL-7 | ESCUDO |
