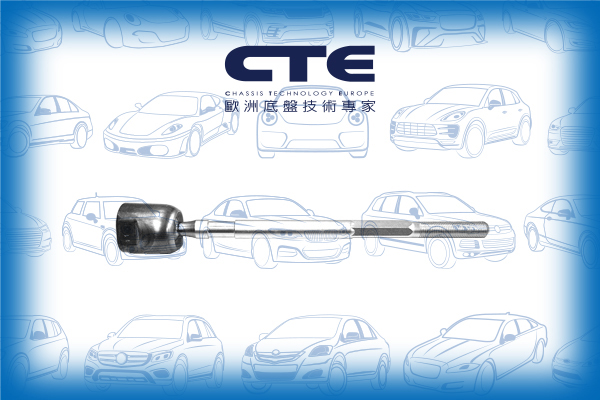

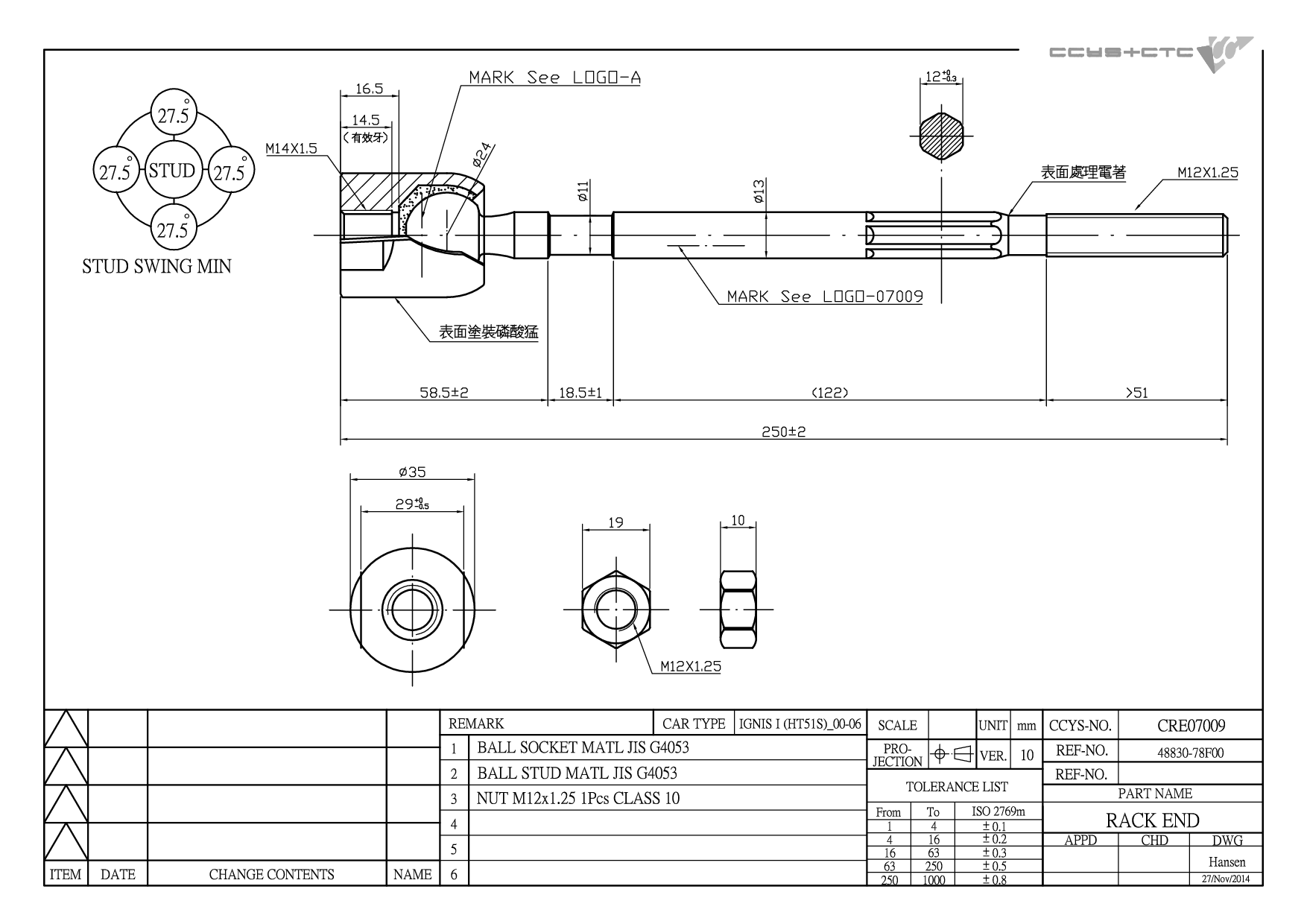

CRE07009
| Designation | Rack End |
| Position | D= M12X1.25 , C= M14X1.5 |
| OE No. | 48830-75F00 / 48830-75F00-000 / 48830-75F01 / 48830-75F01-000 / 48830-78F00 / 48830-78F00-000 / 48830-78F01 / 48830-78F01-000 |
| Length | 260 mm |
| Width | 50 mm |
| Height | 50 mm |
| Net Weight | 0.44 kg |
SUZUKI WAGON R+ HATCHBACK (EM) Construction year to 01.2000 VIN to JSAEMA61S00200000
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

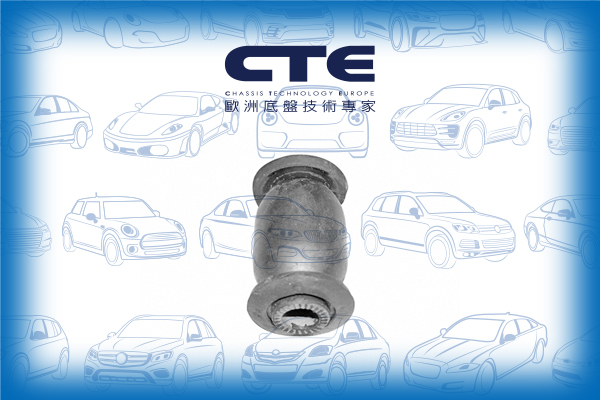

CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |

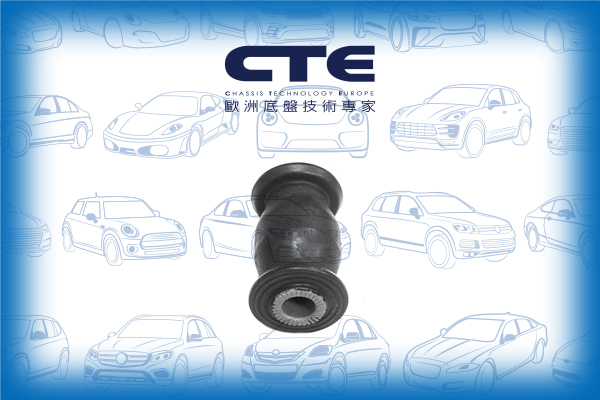

CBH15022 | FRONT LOWER ARM INNER | 009210270 009212530 009214826 09210270 09212530 09214826 45200-83E00 45200-83E00-000 45200-84E00 45200-84E00-000 45200-85E00 4705742 4706665 4707280 9210270 9212530 9214826 |
|
 |

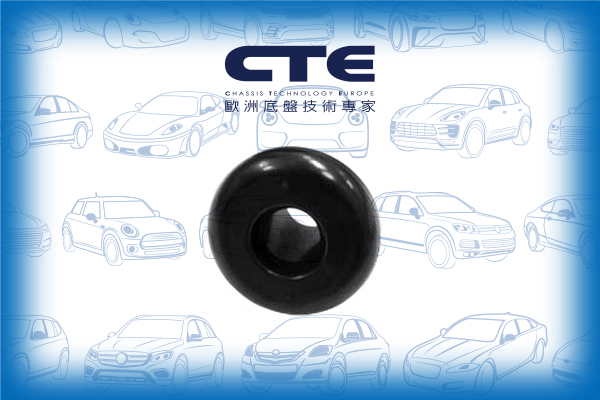

CBH15023 | FRONT LOWER ARM OUTER | 009205432 009209350 009209466 09205432 09209350 09209466 42451-76G00 42451-76G00-000 42451-M76G00 47 05 409 9205432 9209350 9209466 |
|
 |
CRE07009 | D= M12X1.25 , C= M14X1.5 | 48830-75F00 48830-75F00-000 48830-75F01 48830-75F01-000 48830-78F00 48830-78F00-000 48830-78F01 48830-78F01-000 |
|
 |

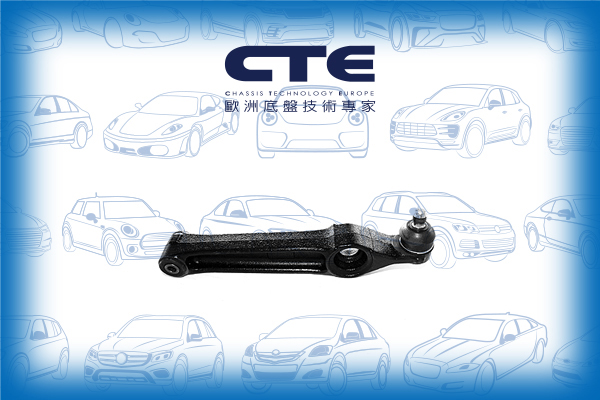

CS-1514 | FRONT LOWER LH/ RH | 009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259 |
|
 |

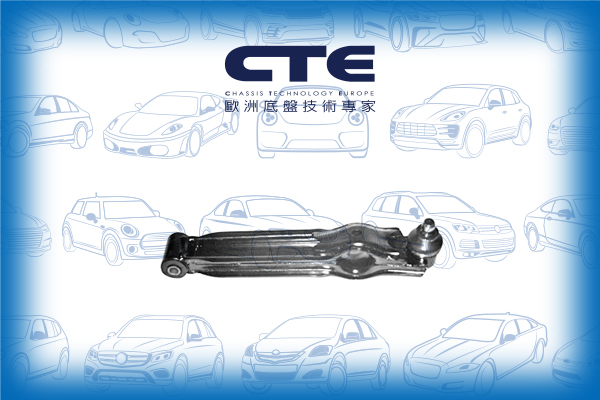

CS-701 | FRONT LOWER LH/ RH | 1AY0-34-300 1YA1-34-300 45200-50500 45200-50E00 45200-69D00 45200-69DV0 45200-69DV1 45200-76G10 45200-76G20 45200-76G21 45200-78000 45200-78002 45200-84000 45200-84001 45200-M50E00 45200-M50E20 45200-M50E30 45200-M50E40 45200-M50E41 45200-M79F00 45200-M79 |
|
 |

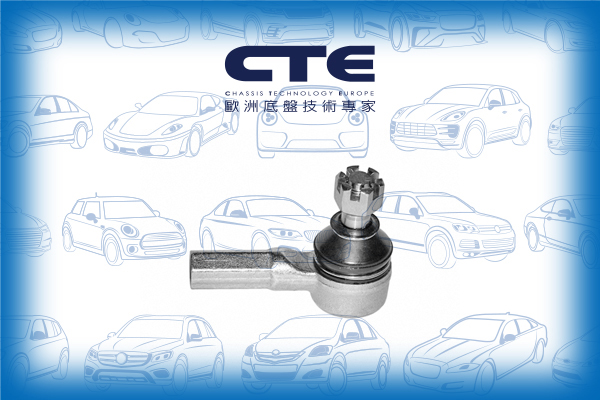

CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
IGNIS I (FH) WAGON R+ (MA) | WAGON R SOLIO WAGON R+ Hatchback (EM) | WAGON R WIDE |
