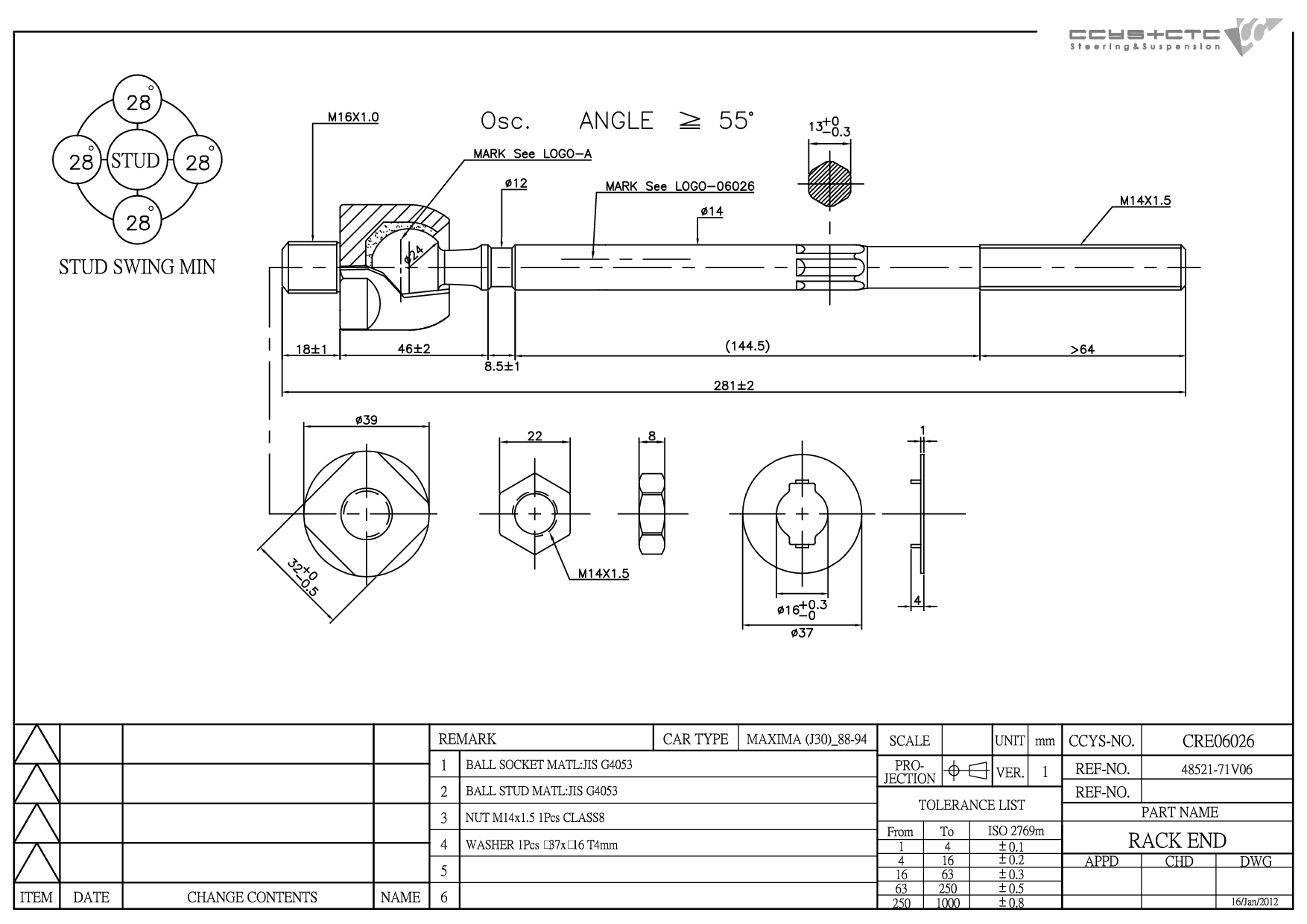

CRE06026
| Designation | Rack End |
| Position | D= M14X1.5 , C= M16X1.0 |
| OE No. | 48521-71V06 |
| Length | 282 mm |
| Width | 40 mm |
| Height | 40 mm |
| Net Weight | 0.48 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06012 | FRONT LOWER ARM REAR | 54570-50J00 |
|
 |
CBH06017 | FRONT LOWER ARM INNER | 54590-01E00 54590-85E00 |
|
 |
CBH06028 | FRONT UPPER ARM INNER (ROTATING SLEEVE) | 54545-90J00 |
|
 |
CBJ06005 | FRONT LOWER LH/ RH | 1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600 |
|
 |
CRE06026 | D= M14X1.5 , C= M16X1.0 | 48521-71V06 |
|
 |
CS-610L | FRONT LOWER LH | 54501-50J00 54501-50J10 54501-50J25 54501-86J00 54501-90J00 54501-90J10 |
|
 |
CS-610R | FRONT LOWER RH | 54500-50J00 54500-50J10 54500-50J25 54500-86J00 54500-90J00 54500-90J10 |
|
 |
CS-630L | FRONT UPPER LH | 54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21 |
|
 |
CS-630R | FRONT UPPER RH | 54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21 |
|
 |
CSL06008 | REAR (A= 116MM) | 15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575 |
|
 |
CSL06010 | FRONT (A= 84.5MM) | 54618-50Y00 54618-60005 54618-60U05 54618-D5000 |
|
 |
CSL06012 | FRONT (A= 84.5MM) | 54618-D5010 54618-D5015 |
|
 |
CSL06020 | FRONT (A= 165MM) | 54618-86J25 54618-90J11 |
|
 |
CSL06027 | REAR (A= 165MM) | 54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10 |
|
 |
CSL06062 | FRONT (A= 158.5MM) | 54618-86J25 54618-90J11 |
| Model (Year) |
|---|
|
MAXIMA III (J30) PRIMERA (P10) |
