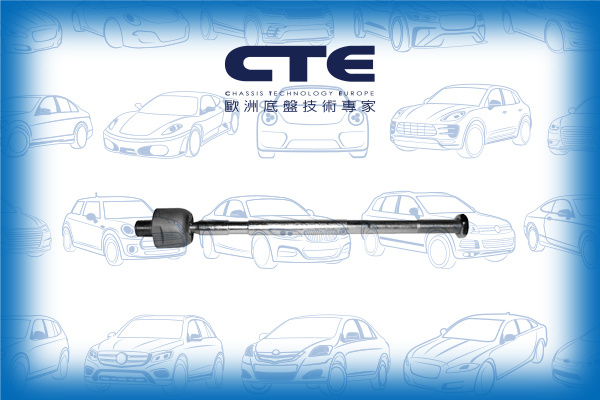

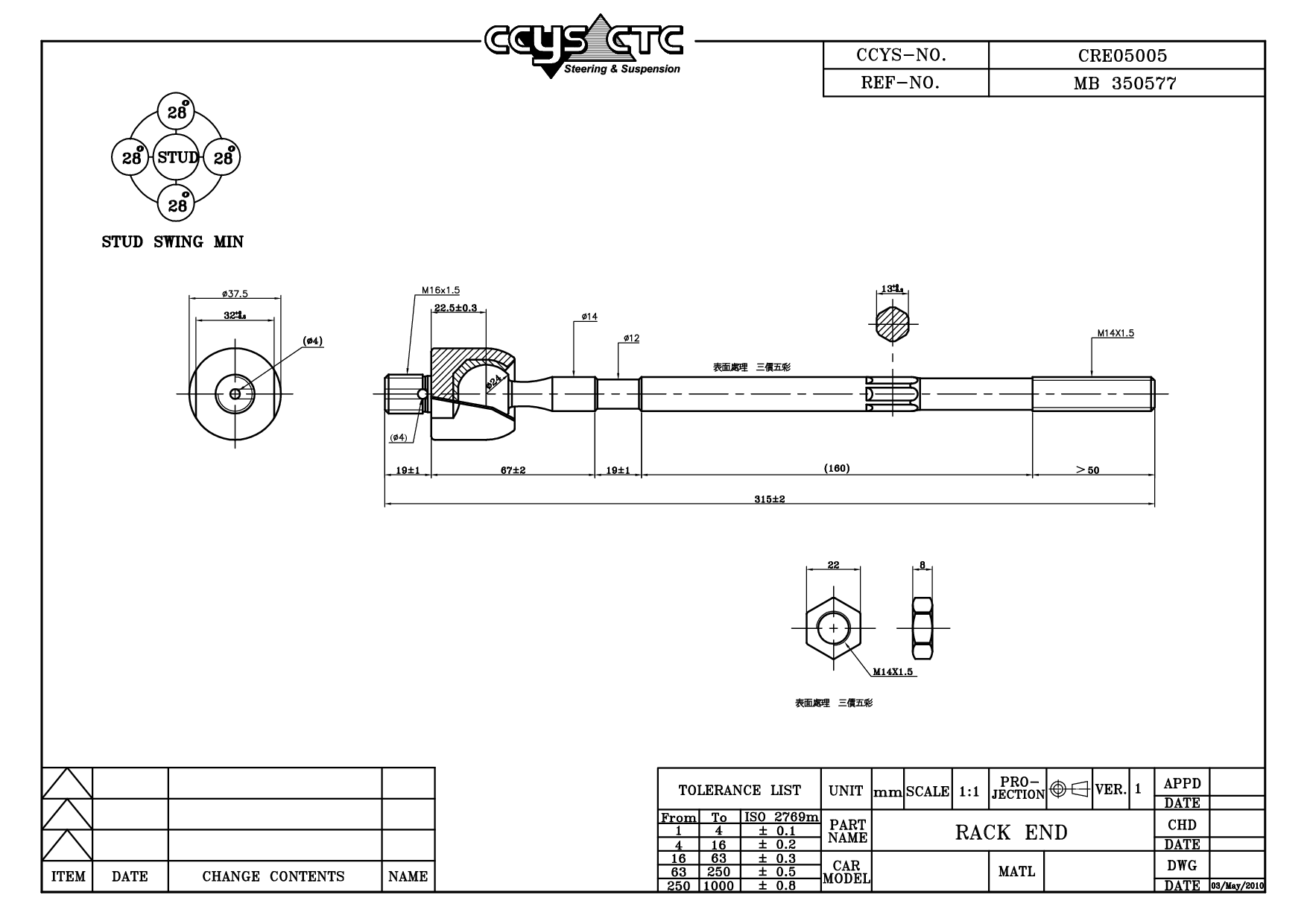

CRE05005
| Designation | Rack End |
| Position | D= M14X1.5 , C= M16X1.5 |
| OE No. | MB 243329 / MB 266152 / MB 315160 / MB 350577 / MR 455425 |
| Length | 315 mm |
| Width | 37.5 mm |
| Height | 37.5 mm |
| Net Weight | 0.56 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ05010 | FRONT LOWER LH/ RH | 4013A033 4013A034 4013A175 AW 311699 MB 133618 MB 241883 MB 349963 MB 349964 MB 518041 MB 518042 MB 518205 MB 518712 MB 518713 MB 518960 MB 518961 MB 573093 MB 573094 MB 573098 MB 860817 MB 860818 MB 891787 MB 891788 MN 133617 |
|
 |
CRE05005 | D= M14X1.5 , C= M16X1.5 | MB 243329 MB 266152 MB 315160 MB 350577 MR 455425 |
|
 |
CSL03012 | REAR AXLE (A=135MM) | ||
 |
CTE05003 | FRONT AXLE LH/ RH (C= M14X1.5) | MB 910859 |
|
 |
CTE05006 | FRONT AXLE LH/ RH (C= M14X1.5) | MB 192430 MB 489434 MB 564991 MB 573885 MB 616286 MB 912519 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
CORDIA (A21_A, AB, AC) GALANT V (E1_A) | SIGMA |
