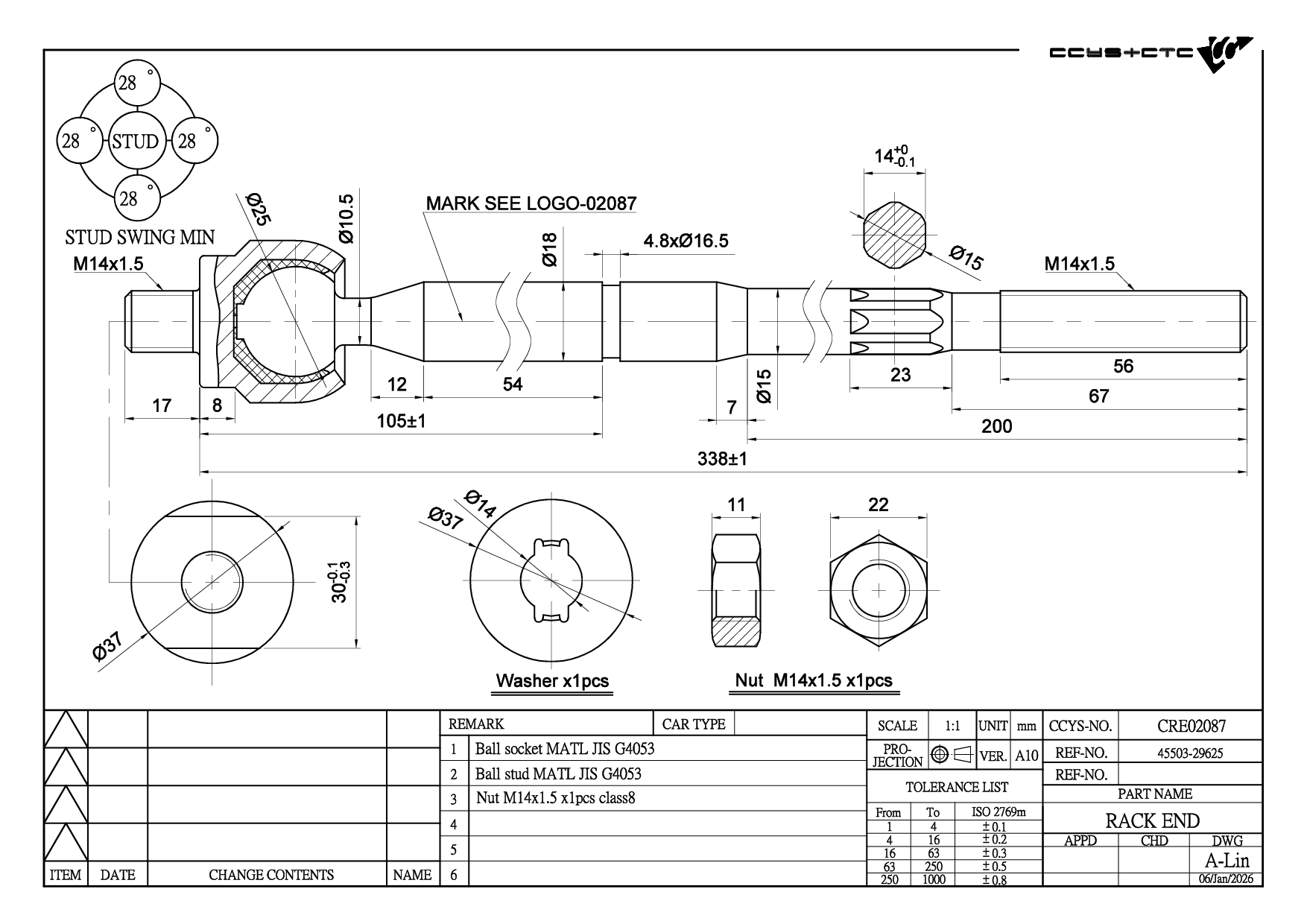

CRE02087
| Designation | Rack End |
| Position | FRONT AXLE LH/ RH |
| OE No. | 45503-29445 / 45503-29625 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.67 kg |
(X3) (T19) (T21) (P1) (M1) (NCP6) (SXN1) (XM1) (NCZ2) (P2) (NCP3)
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02011 | FRONT LOWER ARM REAR | 48655-05011 48655-20140 |
|
 |
CBH02012 | FRONT LOWER ARM INNER | 48654-20150 48654-20160 |
|
 |
CBJ02012A | FRONT LOWER LH/RH | 43330-02020 43330-02040 43330-05020 43330-09030 43330-09040 43330-09060 43330-09130 43330-19095 43330-26265 43330-29045 43330-29046 43330-29047 43330-29055 43330-29056 43330-29065 43330-29265 43330-29315 43330-29325 43330-29375 43340-29025 43340-29026 433 |
|
 |
CRE02087 | FRONT AXLE LH/ RH | 45503-29445 45503-29625 |
|
 |
CS-216L | FRONT LOWER LH | 48069-05010 48069-20260 |
|
 |
CS-216R | FRONT LOWER RH | 48068-05010 48068-20260 |
|
 |
CS-236L | FRONT LOWER LH (W/ BJ) | 48069-05010 48069-20260 CS-216L+CBJ02012A |
|
 |
CS-236R | FRONT LOWER RH (W/ BJ) | 48068-05010 48068-20260 CS-216R+CBJ02012A |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02035 | REAR AXLE LH/RH (A= 104MM) | 48830-02010 48830-05011 48830-12060 48830-20010 48830-32010 48830-32020 |
|
 |
CSL02036L | FRONT LH (A= 70MM) | 48810-05010 48810-05011 48810-05012 48810-20020 48810-44010 |
|
 |
CSL02036R | FRONT RH (A= 70MM) | 48820-05011 48820-05012 48820-20040 48820-44010 |
| Model (Year) |
|---|
|
NX (_Z1_) |
| Model (Year) |
|---|
|
AVALON Saloon (_X3_) bB I (NCP3_) CALDINA Estate (_T19_) CALDINA Estate (_T21_) CARINA E VI (_T19_) CARINA E VI Saloon (_T19_) CARINA E VI Sportswagon (_T19_) CARINA VII Saloon (_T21_) CORONA Hatchback (_T19_) CORONA Saloon (_T19_) CORONA Saloon (_T21_) | CORONA PREMIO ECHO Saloon (_P1_) GAIA (_M1_) ISIS (_M1_) IST (NCP6_) | XA NADIA (SXN1_) PICNIC (_XM1_) | IPSUM PLATZ (NCP1_, SCP1_) RAUM MPV (NCZ2_) VIOS / SOLUNA VIOS (_P4_) YARIS (_P1_) | YARIS/VITZ | ECHO | VITZ/ECHO YARIS VERSO (_P2_) | FUN CARGO | YARIS VERSO / FUN CARGO |
