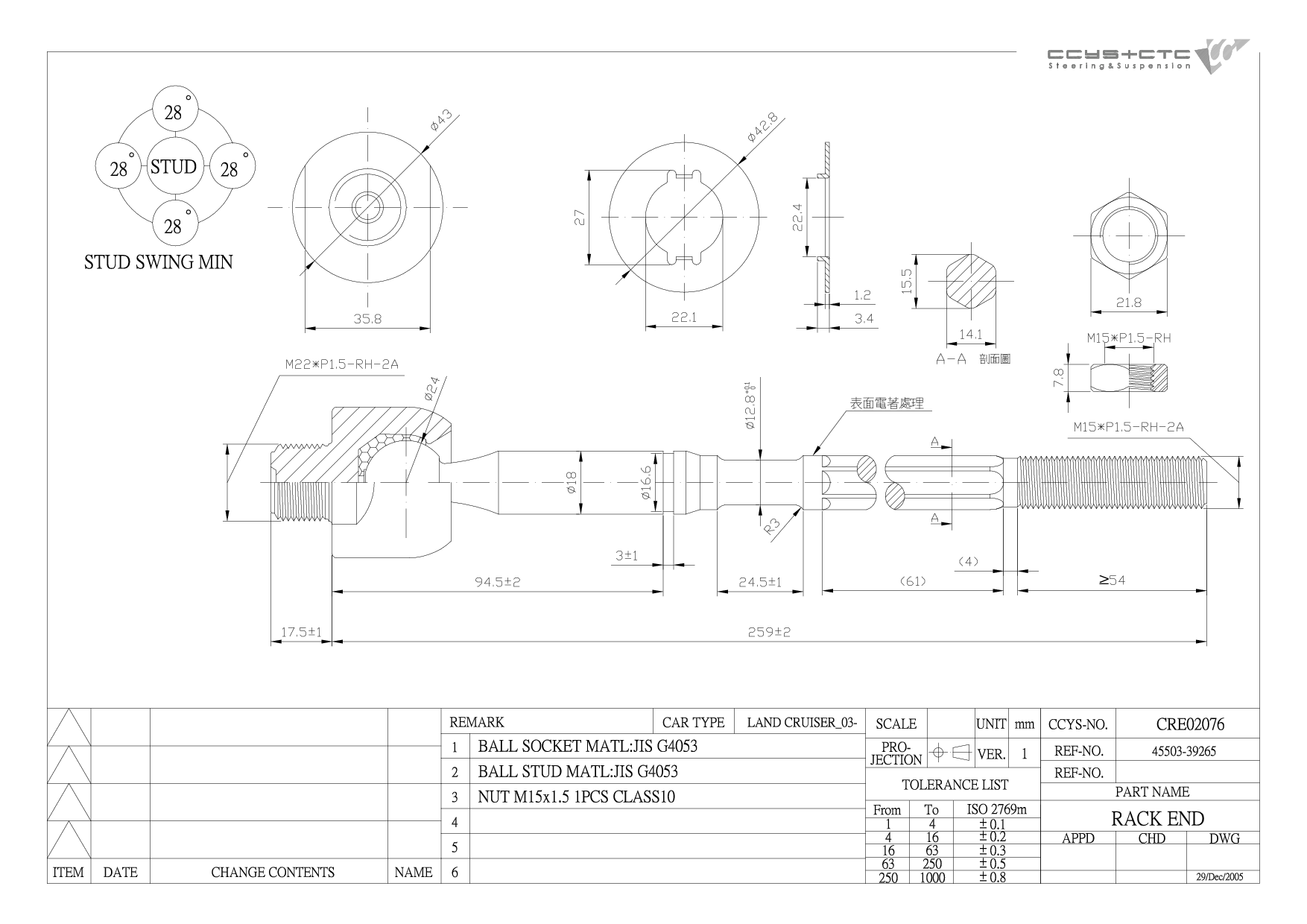

CRE02076
| Designation | Rack End |
| Position | D= M15X1.5 , C= M22X1.5 |
| OE No. | 45503-39235 / 45503-39265 / 45503-39305 |
| Length | 50 mm |
| Width | 50 mm |
| Height | 300 mm |
| Net Weight | 0.7 kg |
(N21) (GSJ1) (J12) (J15) Automatic Transmission for left-hand drive vehicles
(J12) Manual Transmission for right-hand drive vehicles
(J12) Manual Transmission for right-hand drive vehicles
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02063 | FRONT AXLE LH/RH | 48654-04040 48654-60030 |
|
 |
CBH02067 | FRONT LOWER ARM | 4865460050 |
|
 |
CBJ02024 | FRONT LOWER LH/RH | 43330-09295 43330-09490 43330-09510 48068-04030 48068-04040 48068-04060 48068-0K090 48069-04030 48069-04040 48069-04060 48069-0K090 |
|
 |
CRE02076 | D= M15X1.5 , C= M22X1.5 | 45503-39235 45503-39265 45503-39305 |
|
 |
CSL02018 | REAR (A= 142.5MM) | 48830-60010 |
|
 |
CSL02070L | FRONT LH (A= 140MM) | 48810-04010 48810-0K010 48810-0K020 48810-60040 |
|
 |
CSL02070R | FRONT RH (A= 140MM) | 48820-04020 48820-0K030 48820-0K040 48820-60050 |
| Model (Year) |
|---|
|
GX (_J12_) |
| Model (Year) |
|---|
|
4 RUNNER IV (_N21_) 4 RUNNER IV (_N21_) | HILUX SURF FJ CRUISER (GSJ1_) LAND CRUISER PRADO (_J12_) LAND CRUISER PRADO (_J15_) |
| Model (Year) |
|---|
|
PRADO (_J12_) |
