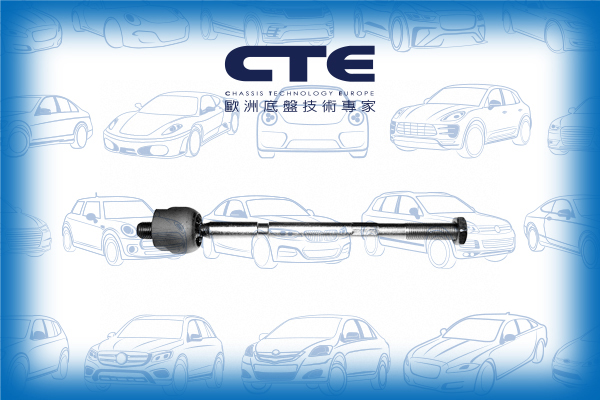

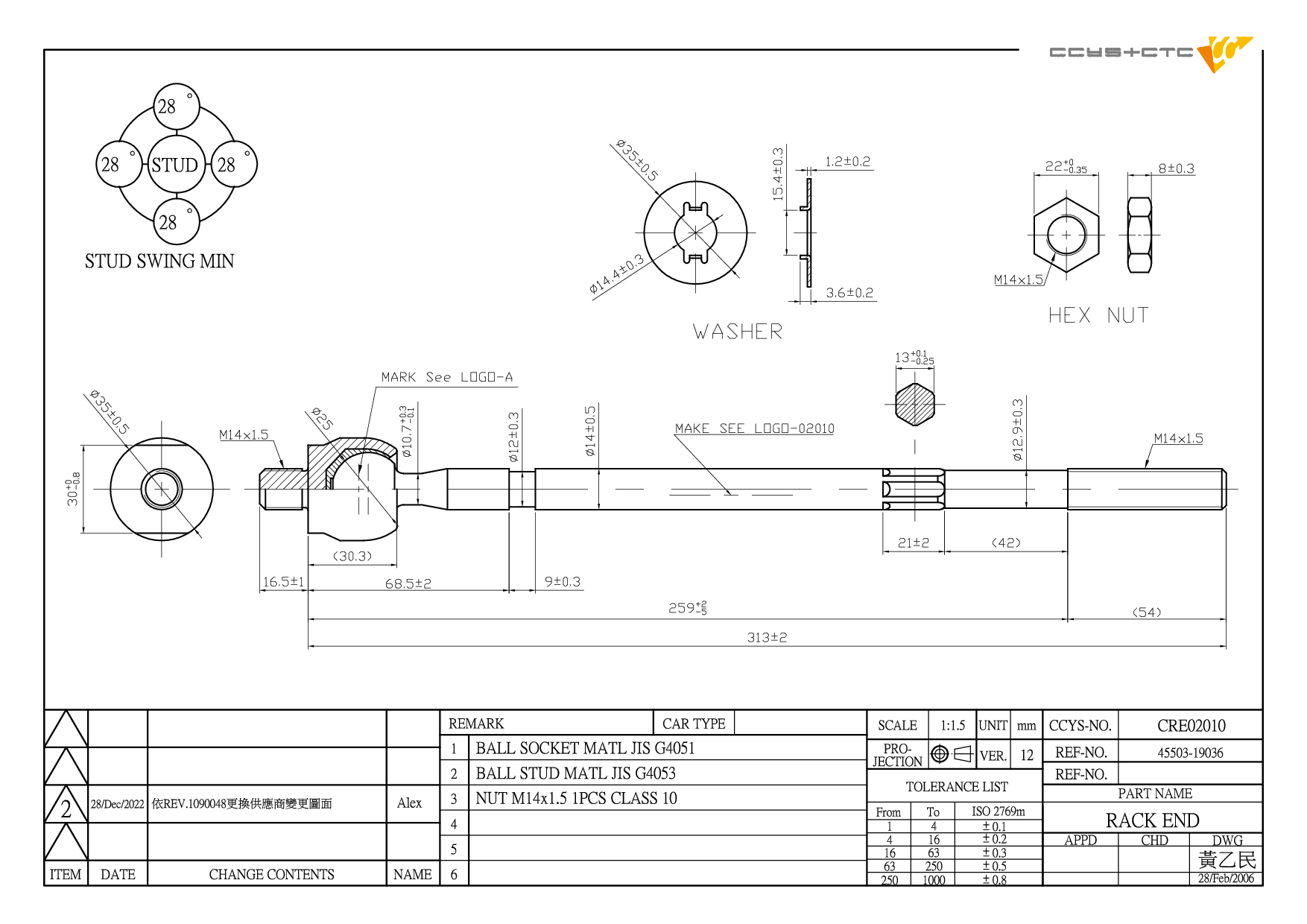

CRE02010
| Designation | Rack End |
| Position | D= M14X1.5 , C= M14X1.5 |
| OE No. | 45503-19036 |
| Length | 329.5 mm |
| Width | 37 mm |
| Height | 37 mm |
| Net Weight | 0.56 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ02012A | FRONT LOWER LH/RH | 43330-02020 43330-02040 43330-05020 43330-09030 43330-09040 43330-09060 43330-09130 43330-19095 43330-26265 43330-29045 43330-29046 43330-29047 43330-29055 43330-29056 43330-29065 43330-29265 43330-29315 43330-29325 43330-29375 43340-29025 43340-29026 433 |
|
 |
CRE02010 | D= M14X1.5 , C= M14X1.5 | 45503-19036 |
|
 |

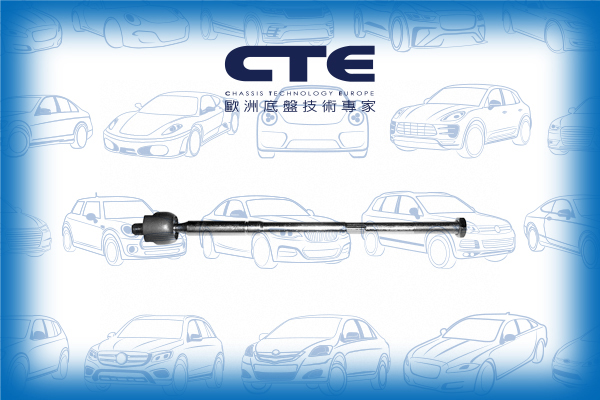

CRE02067 | D= M14X1.5 , C= M14X1.5 | 45503-29515 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02035 | REAR AXLE LH/RH (A= 104MM) | 48830-02010 48830-05011 48830-12060 48830-20010 48830-32010 48830-32020 |
| Model (Year) |
|---|
|
CELICA Coupe (_T18_) CELICA Coupe (_T20_) |
