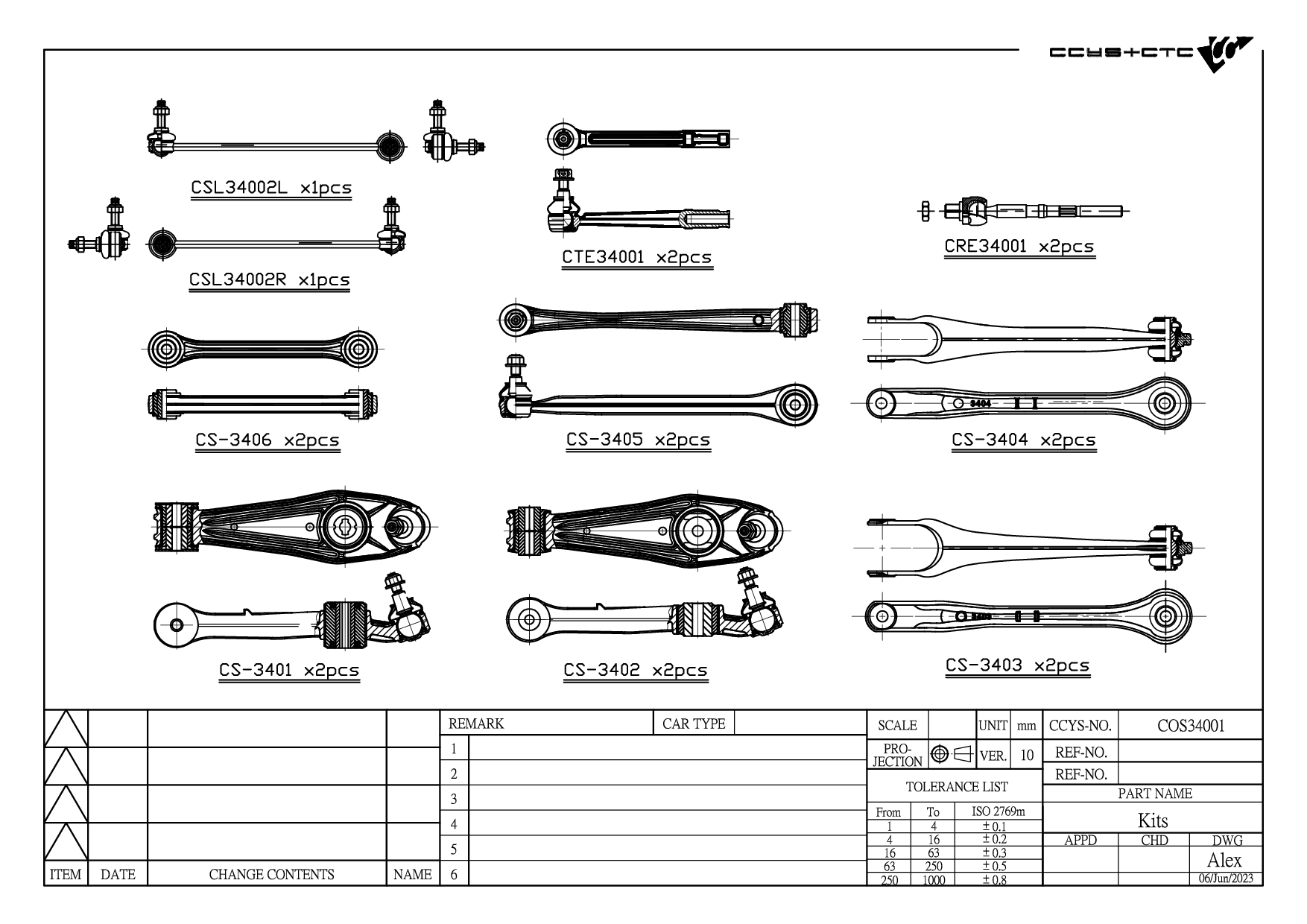

COS34001
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 450 mm |
| Width | 350 mm |
| Height | 225 mm |
| Net Weight | 14.61 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH34002 | REAR AXLE LH/RH | 996 331 045 05 |
|
 |
CBH34005 | REAR AXLE ARM OUTER | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CBH34006 | REAR AXLE ARM INNER | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CBH34007 | REAR AXLE ARM | 996 331 047 02 996 331 047 03 996 331 047 05 996 331 047 06 997 331 047 00 997 331 047 01 |
|
 |
CBH34008 | FRONT LOWER ARM OUTER | 991 341 053 01 997 341 053 03 997 341 053 04 |
|
 |
CBH34009 | FRONT LOWER ARM INNER | 991 341 053 01 997 341 053 03 997 341 053 04 |
|
 |
COS34001 | |||
 |
CRE34001 | D= M14X1.5 , C= M18X1.5 | 997 347 322 00 997 347 322 01 |
|
 |
CS-3401 | FRONT LOWER LH/ RH | 991 341 053 01 991 341 053 21 991 341 053 22 997 341 053 03 997 341 053 04 |
|
 |
CS-3402 | REAR AXLE LH/ RH | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CS-3403 | FRONT UPPER LH/ RH | 997 341 043 00 997 341 143 00 |
|
 |
CS-3404 | REAR AXLE LH/ RH | 997 331 043 01 |
|
 |
CS-3405 | REAR AXLE LH/ RH | 996 331 045 05 996 331 045 06 996 331 045 07 996 331 045 08 996 331 045 10 996 331 045 12 997 331 045 04 |
|
 |
CS-3406 | REAR AXLE LH/ RH | 996 331 047 02 996 331 047 03 996 331 047 05 996 331 047 06 997 331 047 00 997 331 047 01 |
|
 |
CS-3407 | REAR AXLE LH/ RH | 996 341 043 03 996 341 043 06 |
|
 |
CS-3420L | FRONT LOWER LH | 997 341 041 98 |
|
 |
CS-3420R | FRONT LOWER RH | 997 341 042 98 |
|
 |
CS-3431 | FRONT LOWER LH/RH | ||
 |
CS-3432 | FRONT LOWER LH/RH | ||
 |
CS-3433 | FRONT LOWER LH/RH | ||
 |
CSL34004L | FRONT AXLE LH | 997 343 069 00 997 343 069 04 |
|
 |
CSL34004R | FRONT AXLE RH | 997 343 070 00 997 343 070 04 |
|
 |
CTE34001 | FRONT AXLE LH/ RH (C= M14X1.5) | 996 347 131 03 996 347 131 04 |
| Model (Year) |
|---|
|
911 (997) |
