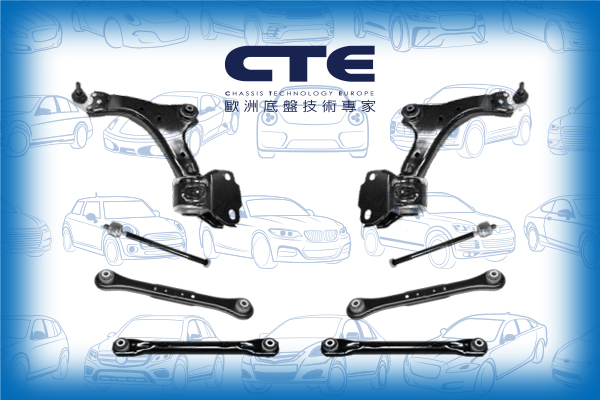

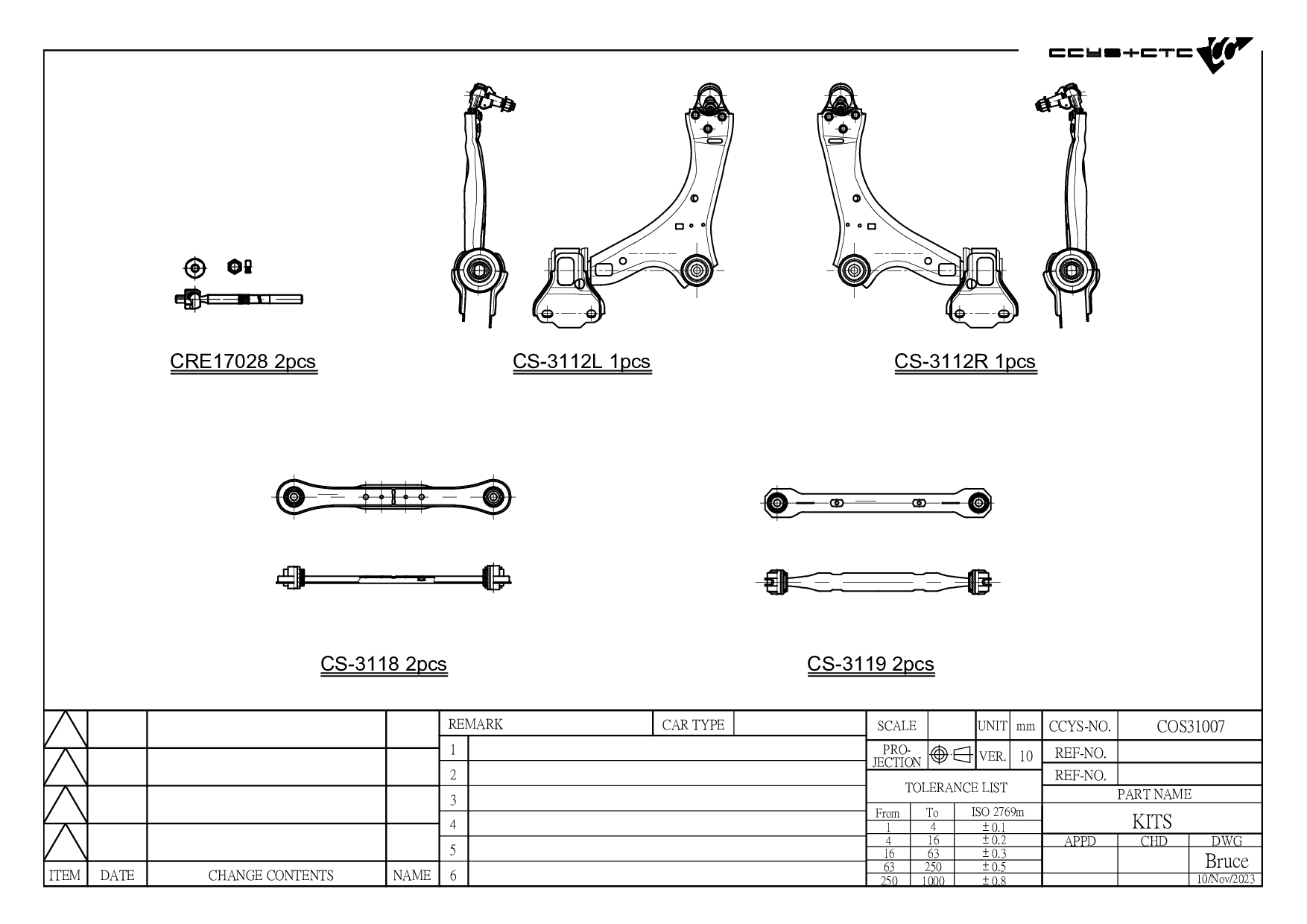

COS31007
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 525 mm |
| Width | 515 mm |
| Height | 223 mm |
| Net Weight | 21.99 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03067L | FRONT LOWER ARM LH REAR | 1888630 31387571 7G9J3A262AB |
|
 |
CBH03067R | FRONT LOWER ARM RH REAR | 1883048 31387572 7G9J3A262BB |
|
 |
CBH17030 | FRONT LOWER ARM INNER | 1507181 1507182 31200775 31200776 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206 |
|
 |

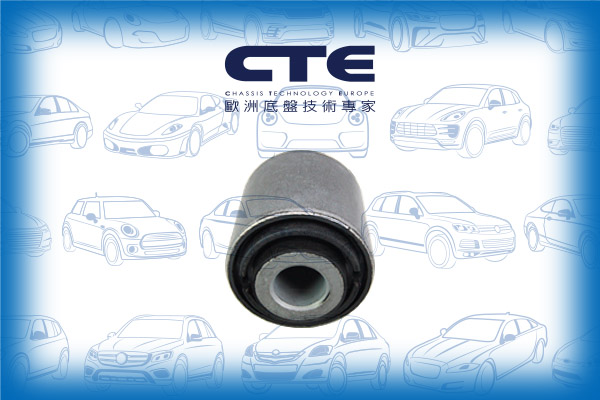

CBH31023 | REAR AXLE LH/RH | ||
 |

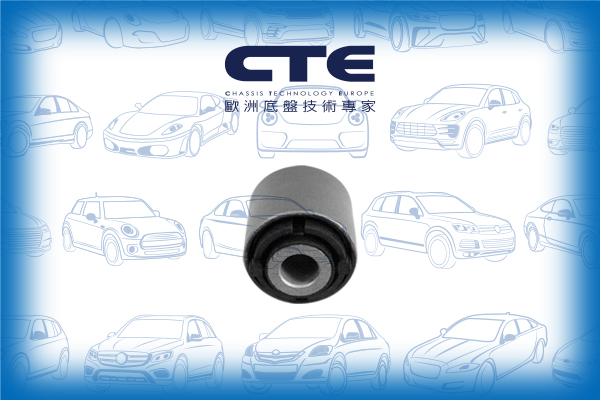

CBH31028 | REAR AXLE ARM | ||
 |

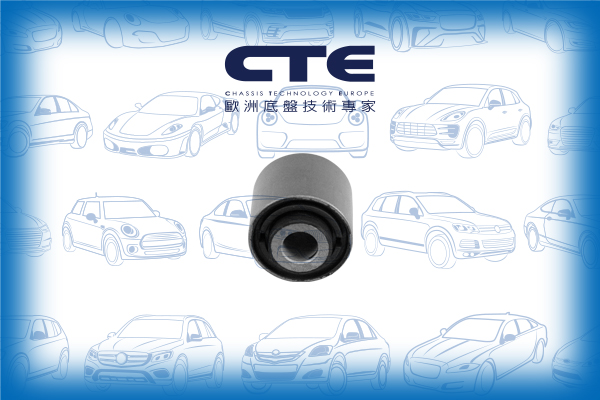

CBH31029 | REAR AXLE ARM | ||
 |

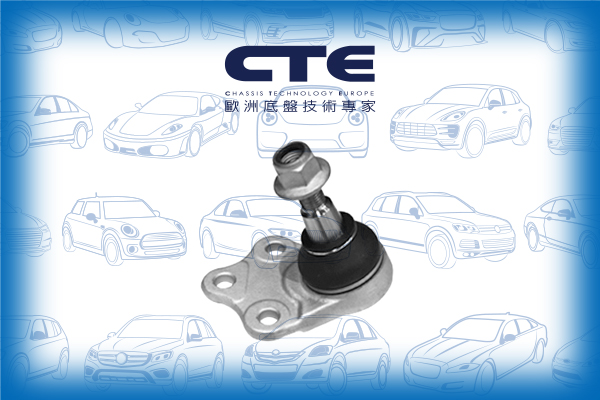

CBJ31006 | FRONT LOWER LH/ RH | LR000068 LR002624 LR002625 LR007205 LR007206 |
|
 |

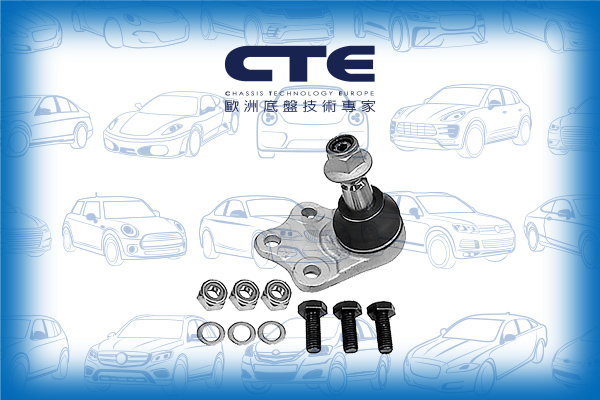

CBJ31006A | FRONT LOWER LH/ RH | LR000068 LR002624 LR002625 LR007205 LR007206 |
|
 |
COS31007 | |||
 |
CRE17028 | D= M18X1.5 , C= M16X1.5 | 1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869 |
|
 |

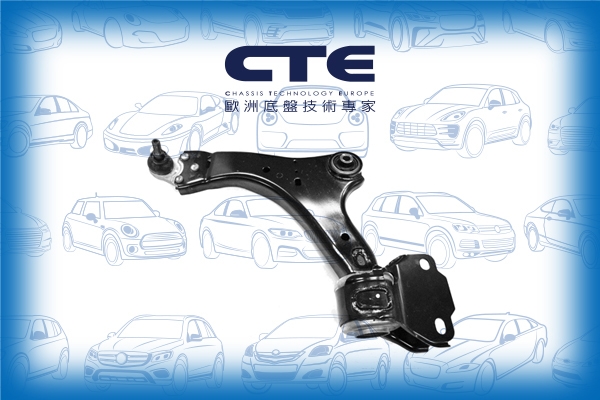

CS-3112L | FRONT LOWER LH | LR000068 LR002625 LR007206 |
|
 |

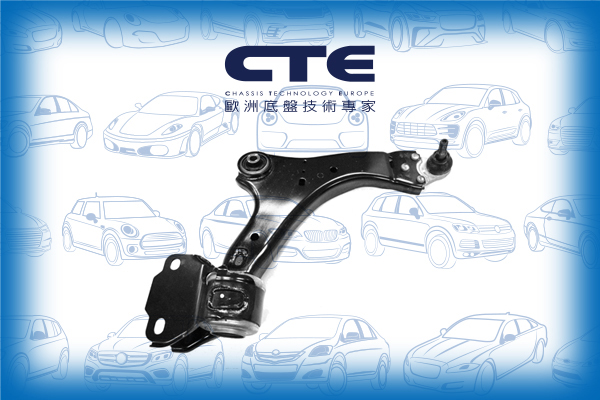

CS-3112R | FRONT LOWER RH | LR002624 LR007205 |
|
 |

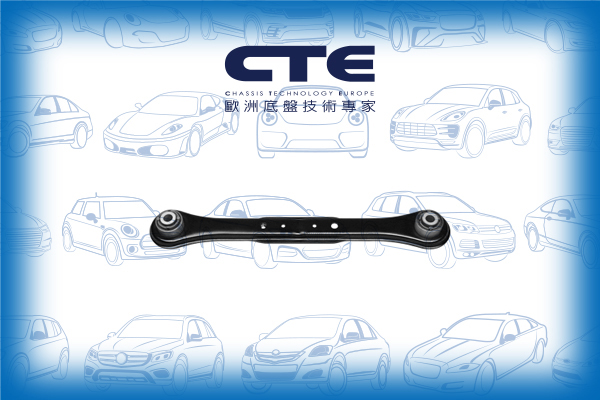

CS-3118 | REAR AXLE LH/RH | LR002575 LR029576 LR032308 |
|
 |

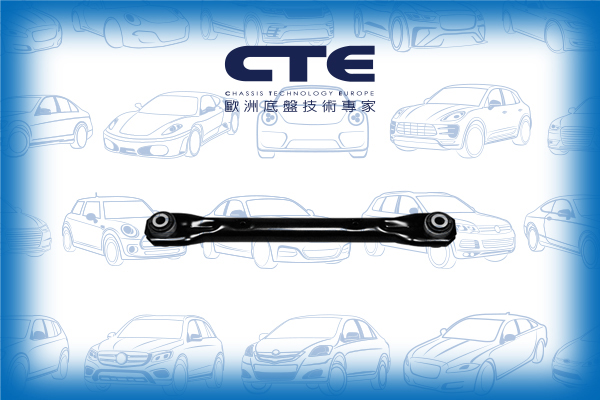

CS-3119 | REAR AXLE LH/RH | LR002576 LR068326 |
|
 |
CTE17015L | FRONT AXLE LH | 1433274 30776249 31280000 31302344 6G91-3290-AA LR002610 |
|
|
CTE17015R | FRONT AXLE RH | 1433273 30776248 31280001 31302345 6G91-3289-AA LR002609 |
| Model (Year) |
|---|
|
FREELANDER 2 (L359) | LR2 |
