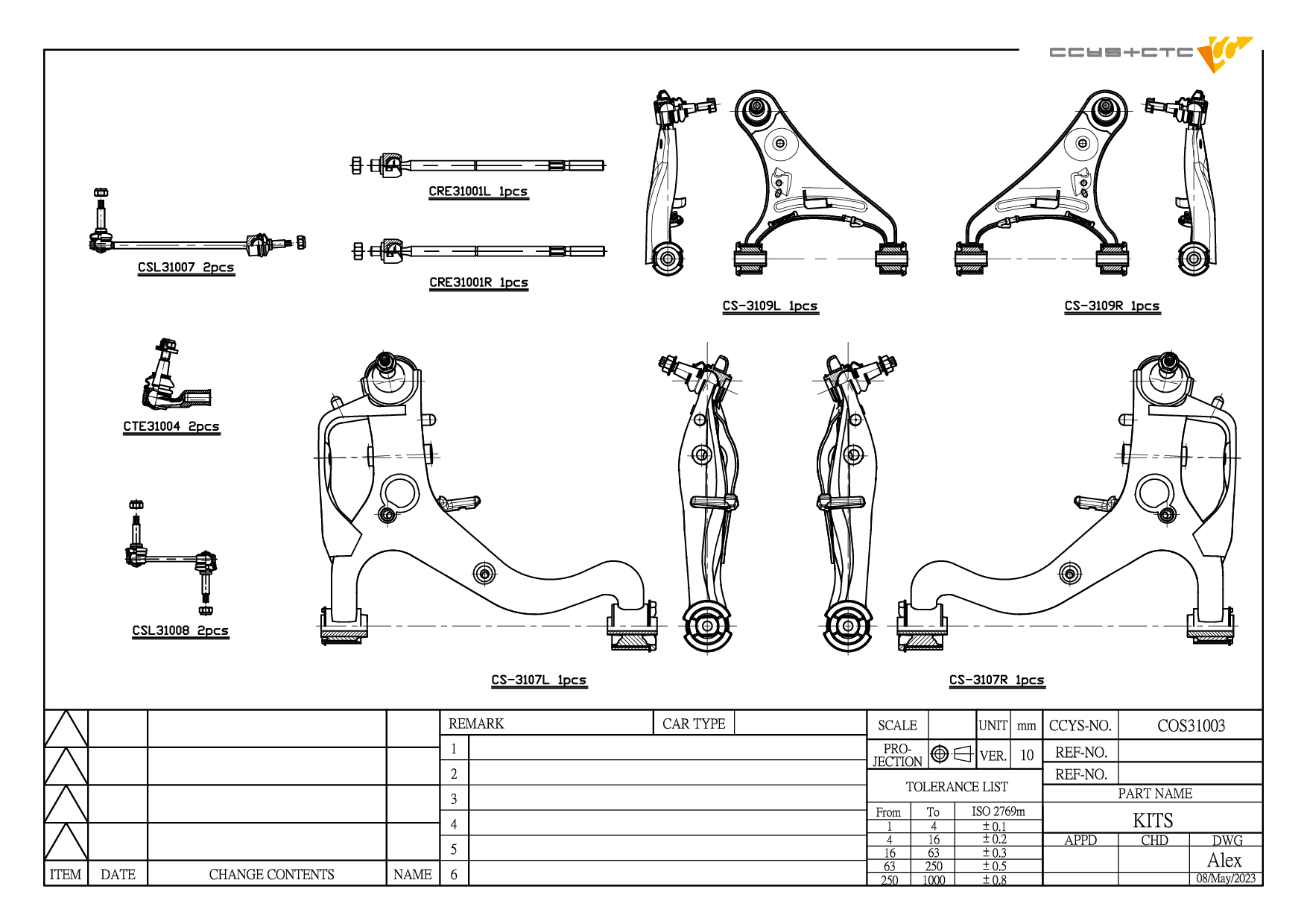

COS31003
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 1060 mm |
| Width | 880 mm |
| Height | 415 mm |
| Net Weight | 29.59 kg |
For vehicles with coil spring suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31007 | FRONT LOWER ARM REAR | LR023715 LR025986 LR055291 RBX500531 |
|
 |
CBH31008 | FRONT LOWER ARM INNER | RBX500311 |
|
 |
CBH31012 | REAR UPPER REAR | LR051621 RGX500131 RGX500300 |
|
|
CBH31013 | REAR UPPER INNER | LR051616 RGX500121 |
|
|
CBH31014 | REAR LOWER REAR | ||
|
CBH31015 | REAR LOWER INNER | ||
 |
CBH31016 | FRONT UPPER ARM INNER | 5H22-5B714-AB LR017011 LR051625 LR056964 RBX500301 RBX500443 |
|
 |
CBJ31003 | FRONT LOWER LH/ RH | 5H223395DA 8H223K209AA 8H223K209AB RBK500040 RBK500140 RBK500180 RBK500230 RBK500240 RBK500280 RBK500300 |
|
 |
CBJ31008 | FRONT UPPER LH/ RH | RBK500030 RBK500161 RBK500170 |
|
 |
COS31002 | |||
 |
COS31003 | |||
 |
CRE31001L | LH D= M16X1.5 , C= M20X1.5 | QFK500020 |
|
 |
CRE31001R | RH D= M16X1.5 , C= M16X1.5 | QFK500010 |
|
 |
CS-3104L | FRONT LOWER LH (AIR SUSP.) | LR014138 LR028249 RBJ500193 RBJ501250 RBJ501350 RBJ501470 RBJ501550 |
|
 |
CS-3104R | FRONT LOWER RH (AIR SUSP.) | LR014136 LR028245 RBJ500183 RBJ501240 RBJ501340 RBJ501460 RBJ501540 |
|
 |
CS-3107L | FRONT LOWER LH (COIL SPRING SUSP.) | LR014139 RBJ501570 |
|
 |
CS-3107R | FRONT LOWER RH (COIL SPRING SUSP.) | LR014137 RBJ501560 |
|
 |
CS-3109L | FRONT UPPER LH | LR014133 LR051615 |
|
 |
CS-3109R | FRONT UPPER RH | LR014132 LR051614 |
|
 |
CS-3115L | REAR UPPER LH | 6H22-5K743-AC LR010525 LR010527 LR051623 LR063718 RGG500051 RGG500052 RGG500053 RGG500292 RGG500293 RGG500450 RGG500510 |
|
 |
CS-3115R | REAR UPPER RH | 6H22-5K742-AC LR010523 LR010526 LR051622 RGG500041 RGG500042 RGG500043 RGG500282 RGG500283 RGG500440 RGG500500 |
|
 |
CS-3116L | REAR LOWER LH | LR019980 |
|
 |
CS-3116R | REAR LOWER RH | LR019979 |
|
 |
CSL31007 | FRONT (A= 286.5MM) | 4H223B438AA 5H225K483BA 5H225K483CA LR014145 RBM500100 RBM500110 RBM500180 RBM500190 |
|
 |
CSL31008 | REAR (A= 116.5MM) | LRLS4045 RGD000311 RGD000312 |
|
 |
CTE31004 | FRONT AXLE LH/ RH (C= M16X1.5) | LR010672 QJB500080 |
| Model (Year) |
|---|
|
DISCOVERY IV (L319) | LR4 DISCOVERY IV VAN (L319) |
