/LAND ROVER/DISCOVERY IV (L319)/DISCOVERY IV VAN (L319)

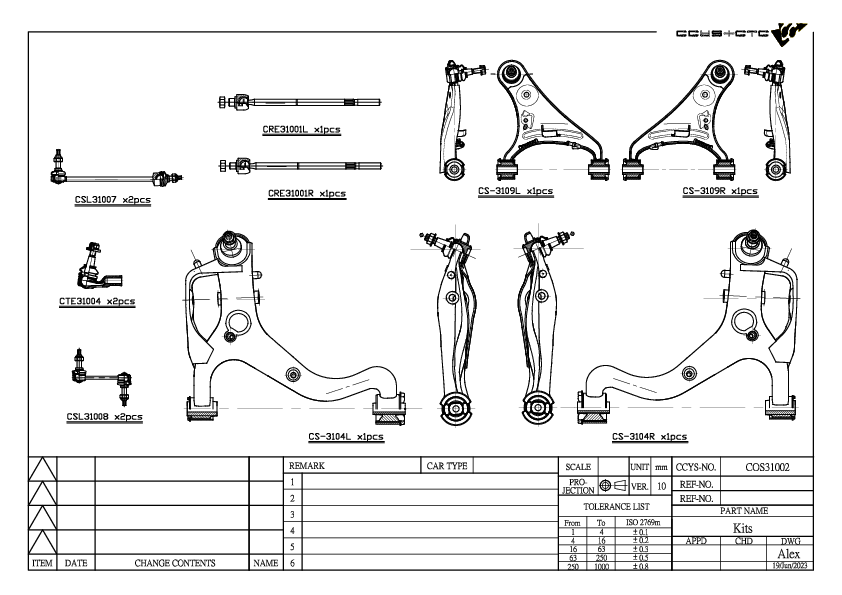

COS31002

Designation Repair Kit
Position FRONT
OE No.
Length 1060 mm
Width 880 mm
Height 415 mm
Net Weight 33.17 kg
For vehicles with air suspension
CTE No. DESIGNATION POSITION OE NO.
CBH31007 FRONT LOWER ARM REAR
  • LR023715
  • LR025986
  • LR055291
  • RBX500531
CBH31008 FRONT LOWER ARM INNER
  • RBX500311
CBH31012 REAR UPPER REAR
  • LR051621
  • RGX500131
  • RGX500300
CBH31013 REAR UPPER INNER
  • LR051616
  • RGX500121
CBH31014 REAR LOWER REAR
CBH31015 REAR LOWER INNER
CBH31016 FRONT UPPER ARM INNER
  • 5H22-5B714-AB
  • LR017011
  • LR051625
  • LR056964
  • RBX500301
  • RBX500443
CBJ31003 FRONT LOWER LH/ RH
  • 5H223395DA
  • 8H223K209AA
  • 8H223K209AB
  • RBK500040
  • RBK500140
  • RBK500180
  • RBK500230
  • RBK500240
  • RBK500280
  • RBK500300
CBJ31008 FRONT UPPER LH/ RH
  • RBK500161
  • RBK500170
COS31002 FRONT
COS31003 FRONT
CRE31001L LH D= M16X1.5 , C= M20X1.5
  • QFK500020
CRE31001R RH D= M16X1.5 , C= M16X1.5
  • QFK500010
CS-3104L FRONT LOWER LH (AIR SUSP.)
  • LR014138
  • LR028249
  • RBJ500193
  • RBJ501250
  • RBJ501350
  • RBJ501470
  • RBJ501550
CS-3104R FRONT LOWER RH (AIR SUSP.)
  • LR014136
  • LR028245
  • RBJ500183
  • RBJ501240
  • RBJ501340
  • RBJ501460
  • RBJ501540

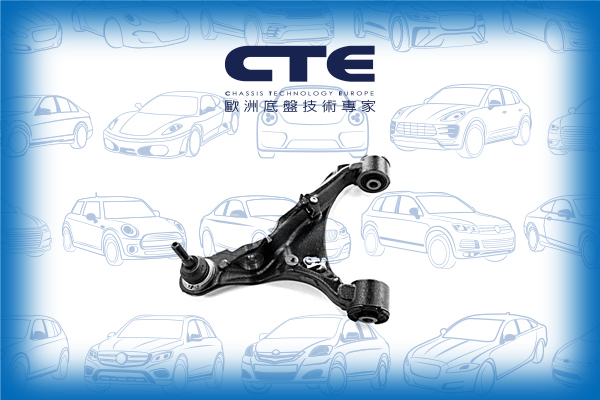

CS-3106L FRONT UPPER LH
  • LR014629
  • LR051618
  • LR074838
  • RBJ500790
  • RBJ500850

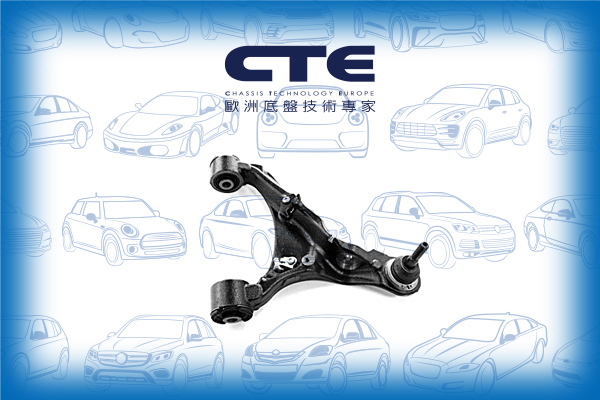

CS-3106R FRONT UPPER RH
  • LR014619
  • LR026095
  • LR051617
  • RBJ500780
  • RBJ500840
CS-3107L FRONT LOWER LH (COIL SPRING SUSP.)
  • LR014139
  • RBJ501570
CS-3107R FRONT LOWER RH (COIL SPRING SUSP.)
  • LR014137
  • RBJ501560
CS-3109L FRONT UPPER LH
  • LR014133
  • LR051615
CS-3109R FRONT UPPER RH
  • LR014132
  • LR051614
CS-3115L REAR UPPER LH
  • 6H22-5K743-AC
  • LR010525
  • LR010527
  • LR051623
  • LR063718
  • RGG500051
  • RGG500052
  • RGG500053
  • RGG500292
  • RGG500293
  • RGG500450
  • RGG500510
CS-3115R REAR UPPER RH
  • 6H22-5K742-AC
  • LR010523
  • LR010526
  • LR051622
  • RGG500041
  • RGG500042
  • RGG500043
  • RGG500282
  • RGG500283
  • RGG500440
  • RGG500500
CS-3116L REAR LOWER LH
  • LR019980
CS-3116R REAR LOWER RH
  • LR019979
CSL31007 FRONT (A= 286.5MM)
  • 4H223B438AA
  • 5H225K483BA
  • 5H225K483CA
  • LR014145
  • RBM500100
  • RBM500110
  • RBM500180
  • RBM500190
CSL31008 REAR (A= 116.5MM)
  • LRLS4045
  • RGD000311
  • RGD000312
CTE31004 FRONT AXLE LH/ RH (C= M16X1.5)
  • LR010672
  • QJB500080
CTE31010 REAR AXLE LH/ RH
  • 5H22-4717-AA
  • 5H22-4717-AB
  • 9H22-4717-AA
  • LR019117
  • RGD500083
  • RGD500190
Model (Year)
DISCOVERY IV (L319) | LR4
DISCOVERY IV VAN (L319)
