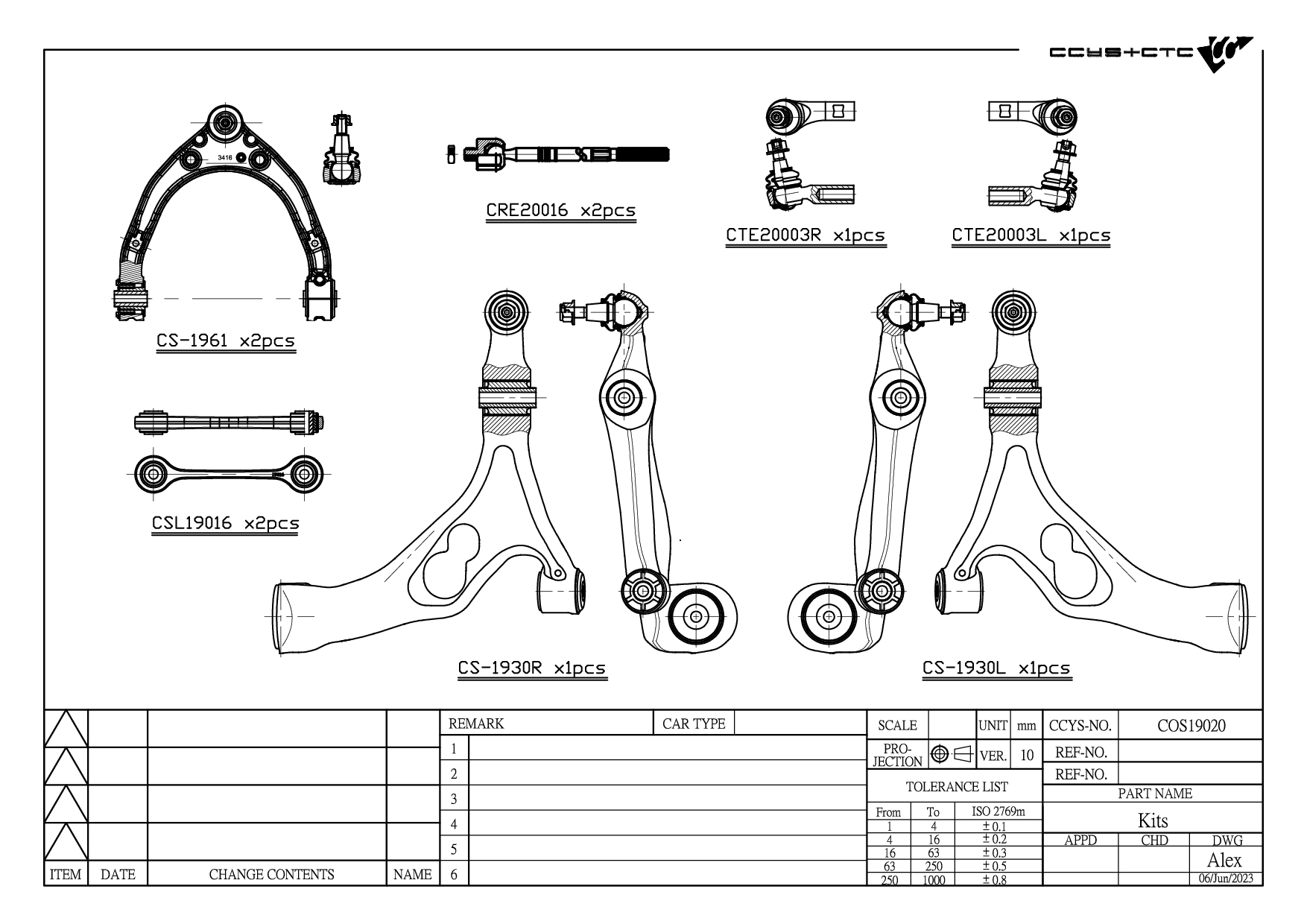

COS19020
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 495 mm |
| Width | 490 mm |
| Height | 240 mm |
| Net Weight | 16.84 kg |
Model year from 2011
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19022 | FRONT LOWER ARM REAR (C= 72MM) | 7L0 407 182D 7L0 407 182F 7L0 407 182G 955 341 242 61 955 341 242 62 |
|
 |
CBH19033 | FRONT LOWER ARM REAR (C= 72MM) | 7L0 407 182D 7L0 407 182F 7L0 407 182G 955 341 242 61 955 341 242 62 |
|
 |
CBH20010 | FRONT UPPER ARM INNER | 7L0 407 077 |
|
 |
CBH20011 | FRONT LOWER ARM REAR | 7L0 407 182 B 7L0407182C 7L0407182E 955 341 242 04 95534124203 |
|
 |
CBH20012 | FRONT LOWER ARM INNER | 7L0 407 183A 7L8 407 183 955 341 588 10 |
|
 |
CBH20013 | FRONT LOWER ARM OUTER | 7L0 412 333 7L0 412 333 A 955 343 243 01 |
|
 |
COS19019 | |||
 |
COS19020 | |||
 |
CRE20016 | D= M16X1.5 , C= M16X1.5 | 2H0 419 803 2H0 419 804 7L0 422 803 B 7L0 422 803 C 7L0 422 803 D 7L0 422 804 B 7L0 422 804 C 7L0 422 804 D 7L0 422 810C 7L0 423 810 955 347 031 20 955 347 031 21 955 347 031 22 955 347 032 20 955 347 032 21 955 347 032 22 |
|
 |
CS-1920L | FRONT LOWER LH | 7L8 407 151D 7L8 407 151E |
|
 |
CS-1920R | FRONT LOWER RH | 7L8 407 152D 7L8 407 152E |
|
 |
CS-1930L | FRONT LOWER LH | 7L8 407 151F 7L8 407 151K 7P0 407 151E 958 341 053 00 958 341 053 03 958 341 053 10 958 341 053 11 |
|
 |
CS-1930R | FRONT LOWER RH | 7L8 407 152F 7L8 407 152K 7P0 407 152E 958 341 054 00 958 341 054 03 958 341 054 10 958 341 054 11 |
|
 |
CS-1960L | FRONT LOWER LH | 7L8 407 151F 7L8 407 151K 7P0 407 151E 958 341 053 00 958 341 053 03 958 341 053 10 958 341 053 11 |
|
 |
CS-1960R | FRONT LOWER RH | 7L8 407 152F 7L8 407 152K 7P0 407 152E 958 341 054 00 958 341 054 03 958 341 054 10 958 341 054 11 |
|
 |
CS-1961 | FRONT UPPER LH/ RH | 7L8 407 021 |
|
 |
CS-2012 | FRONT UPPER LH/ RH | 7L0 407 021 7L0 407 021A 7L0 407 021B 7L0 407 047A 955 341 027 00 955 341 027 01 955 341 027 02 |
|
 |
CS-2013L | FRONT LOWER LH | 7L0 407 151 D 7L0 407 151 E 7L0 407 151 H 7L0 407 151C 7L8 407 151 B 955 341 017 30 955 341 017 31 955 341 017 32 955 341 017 33 |
|
 |
CS-2013R | FRONT LOWER RH | 7L0 407 152 D 7L0 407 152 E 7L0 407 152 H 7L0 407 152C 7L8 407 152 B 955 341 018 30 955 341 018 31 955 341 018 32 955 341 018 33 |
|
 |
CSL19016 | FRONT (A= 197MM) | 7L0 411 317 955 343 069 00 |
|
 |
CSR20005L | FRONT AXLE LH | 2H0 419 804 7L0 422 803 B 7L0 422 803 C 7L0 422 803D 955 347 031 20 955 347 031 21 955 347 031 22 |
|
 |
CSR20005R | FRONT AXLE RH | 2H0 419 803 7L0 422 804 B 7L0 422 804 C 7L0 422 804D 955 347 032 20 955 347 032 21 955 347 032 22 |
|
 |
CTE20003L | FRONT AXLE LH (C= M16X1.5) | 2H0 422 817 7L0 422 817A 7L0 422 817B 7L0 422 817C 7L0 422 817D 955 347 131 20 955 347 131 21 955 347 131 22 |
|
 |
CTE20003R | FRONT AXLE RH (C= M16X1.5) | 2H0 422 818 7L0 422 818A 7L0 422 818B 7L0 422 818C 7L0 422 818D 947 347 132 20 955 347 132 20 955 347 132 21 955 347 132 22 |
| Model (Year) |
|---|
|
Q7 (4LB) |
