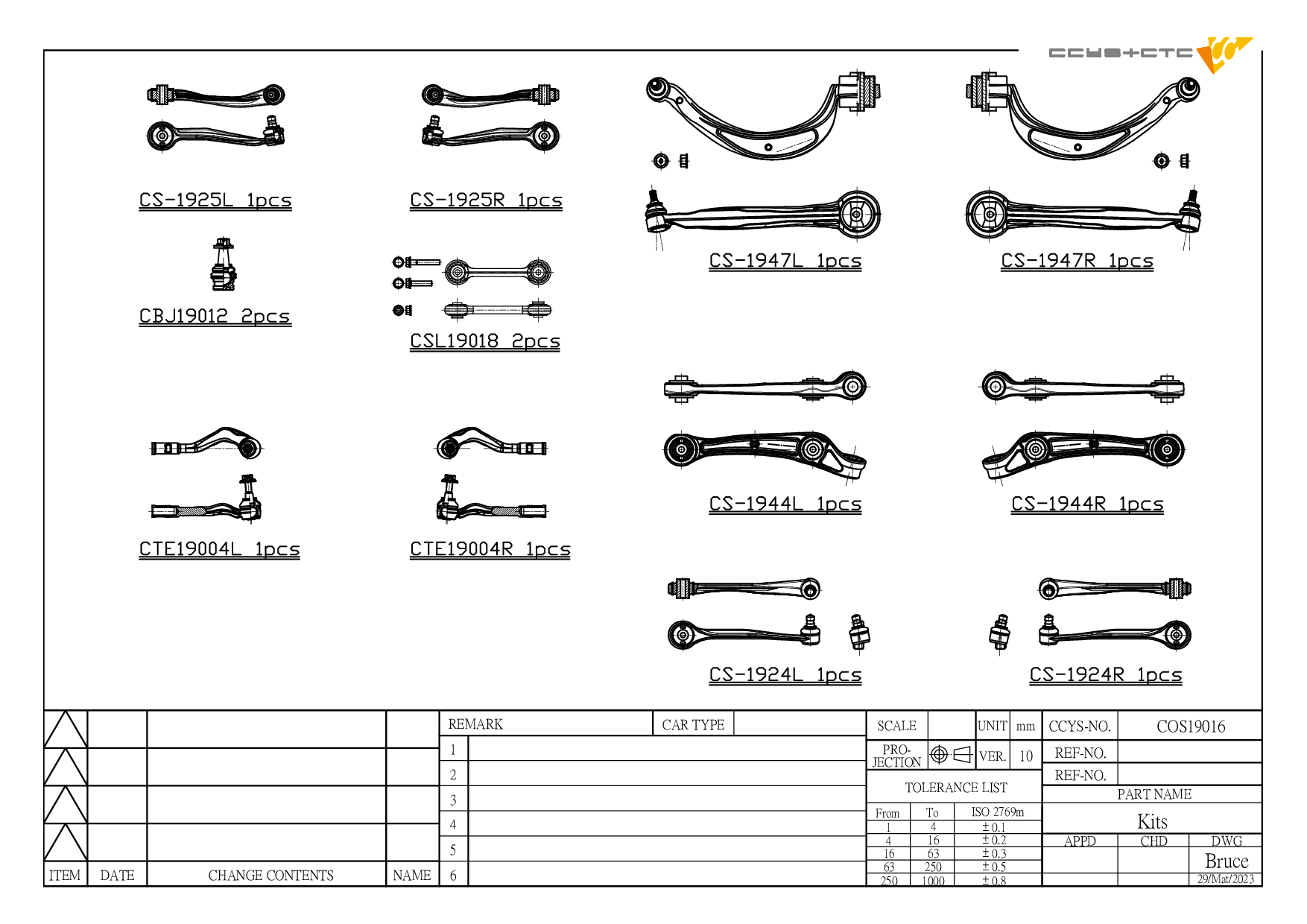

COS19016
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 13.85 kg |
(8KH) (8K2) (8K5) (4G2,4GC) (4G5,4GD) (4GA,4GF) Construction year from 09.2011
(8T3) (8F7) (8TA) Thread Size M14, Model year from 2012
(4GA,4GF) for vehicle with standard suspension
(8T3) (8F7) (8TA) Thread Size M14, Model year from 2012
(4GA,4GF) for vehicle with standard suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19008 | FRONT LOWER ARM INNER | 4D0 407 182E |
|
 |
CBH19018 | FRONT UPPER ARM INNER | 8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C |
|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19021 | FRONT LOWER ARM INNER | 8K0 407 183A 8K0 407 183B |
|
 |
CBH19027 | FRONT LOWER ARM REAR | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBJ19009 | FRONT LOWER LH/ RH | 4G0 407 689 8K0 407 689D 8K0 407 689E 8K0 407 689F 8K0 407 689G |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B |
|
 |
COS19016 | |||
 |
COS19021 | |||
 |
CRE19003 | D= M16X1.5 , C= M16X1.5 | 8J0 423 810 |
|
 |
CRE19004 | D= M16X1.5 , C= M16X1.5 | 4H0 422 810A |
|
 |
CS-1924L | FRONT UPPER LH | 8K0 407 505A 8K0 407 505N |
|
 |
CS-1924R | FRONT UPPER RH | 8K0 407 506A 8K0 407 506N |
|
 |
CS-1925L | FRONT UPPER LH | 8K0 407 509A 8K0 407 509F 8K0 407 509N |
|
 |
CS-1925R | FRONT UPPER RH | 8K0 407 510A 8K0 407 510F 8K0 407 510N |
|
 |
CS-1926L | FRONT LOWER LH | 8K0 407 151B 8K0 407 151C 8K0 407 151D 8K0 407 151E |
|
 |
CS-1926R | FRONT LOWER RH | 8K0 407 152B 8K0 407 152C 8K0 407 152D 8K0 407 152E |
|
 |
CS-1927L | FRONT LOWER LH(M12 X1.5) | 8K0 407 693F 8K0 407 693H 8K0 407 693K 8K0 407 693N |
|
 |
CS-1927R | FRONT LOWER RH(M12 X1.5) | 8K0 407 694F 8K0 407 694H 8K0 407 694K 8K0 407 694N |
|
 |
CS-1938L | FRONT LOWER LH(M12 X1.5) | 8K0 407 693AE 8K0 407 693R |
|
 |
CS-1938R | FRONT LOWER RH(M12 X1.5) | 8K0 407 694AE 8K0 407 694R |
|
 |
CS-1944L | FRONT LOWER LH | 8K0 407 151F 8K0 407 151G 8KD 407 151B PAC 407 151 |
|
 |
CS-1944R | FRONT LOWER RH | 8K0 407 152F 8K0 407 152G 8KD 407 152B PAC 407 152 |
|
 |
CS-1946L | FRONT UPPER LH | 4GD 407 505 4GD 407 505A 4GD 407 505B 8K0 407 505J 8K0 407 505M 8K0 407 505R |
|
 |
CS-1946R | FRONT UPPER RH | 4GD 407 506 4GD 407 506A 4GD 407 506B 8K0 407 506J 8K0 407 506M 8K0 407 506R |
|
 |
CS-1947L | FRONT LOWER LH(M14 X1.5) | 8K0 407 693 AA 8K0 407 693 AB 8K0 407 693 AC 8K0 407 693 AD 8K0 407 693 S 8K0 407 693 T 8K0 407 693Q 8R0 407 693 B |
|
 |
CS-1947R | FRONT LOWER RH(M14 X1.5) | 8K0 407 694 AA 8K0 407 694 AB 8K0 407 694 AC 8K0 407 694 AD 8K0 407 694 S 8K0 407 694 T 8K0 407 694Q 8R0 407 694 B |
|
 |
CS-1949L | REAR UPPER LH | 8K0 505 323H |
|
 |
CS-1949R | REAR UPPER RH | 8K0 505 324H |
|
 |
CS-1950 | REAR LOWER LH/RH | 8K0 501 529L |
|
 |
CS-1966L | FRONT LOWER LH | ||
 |
CS-1966R | FRONT LOWER RH | ||
 |
CS-1967L | FRONT LOWER LH | ||
 |
CS-1967R | FRONT LOWER RH | ||
 |
CSL19018 | FRONT (A= 170MM) | 4G0 411 317A 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 8K0 411 317A 8K0 411 317C 8K0 411 317D 8K0 411 317D S1 8K0 411 317E 8K0 411 318E 8KD 407 317E |
|
 |
CTE19004L | FRONT AXLE LH (C= M16X1.5) | 4G0 423 811A 8K0 407 253E 8K0 407 253F 8K0 422 817A 8K0 422 817B |
|
 |
CTE19004R | FRONT AXLE RH (C= M16X1.5) | 4G0 423 812A 8K0 407 254E 8K0 407 254F 8K0 422 818A 8K0 422 818B |
| Model (Year) |
|---|
|
A4 B8 (8K2) | A4 / S4 A4 B8 Avant (8K5) A5 (8T3) | A5 / S5 A5 Convertible (8F7) | A5 / S5 A5 Sportback (8TA) | A5 / S5 |
