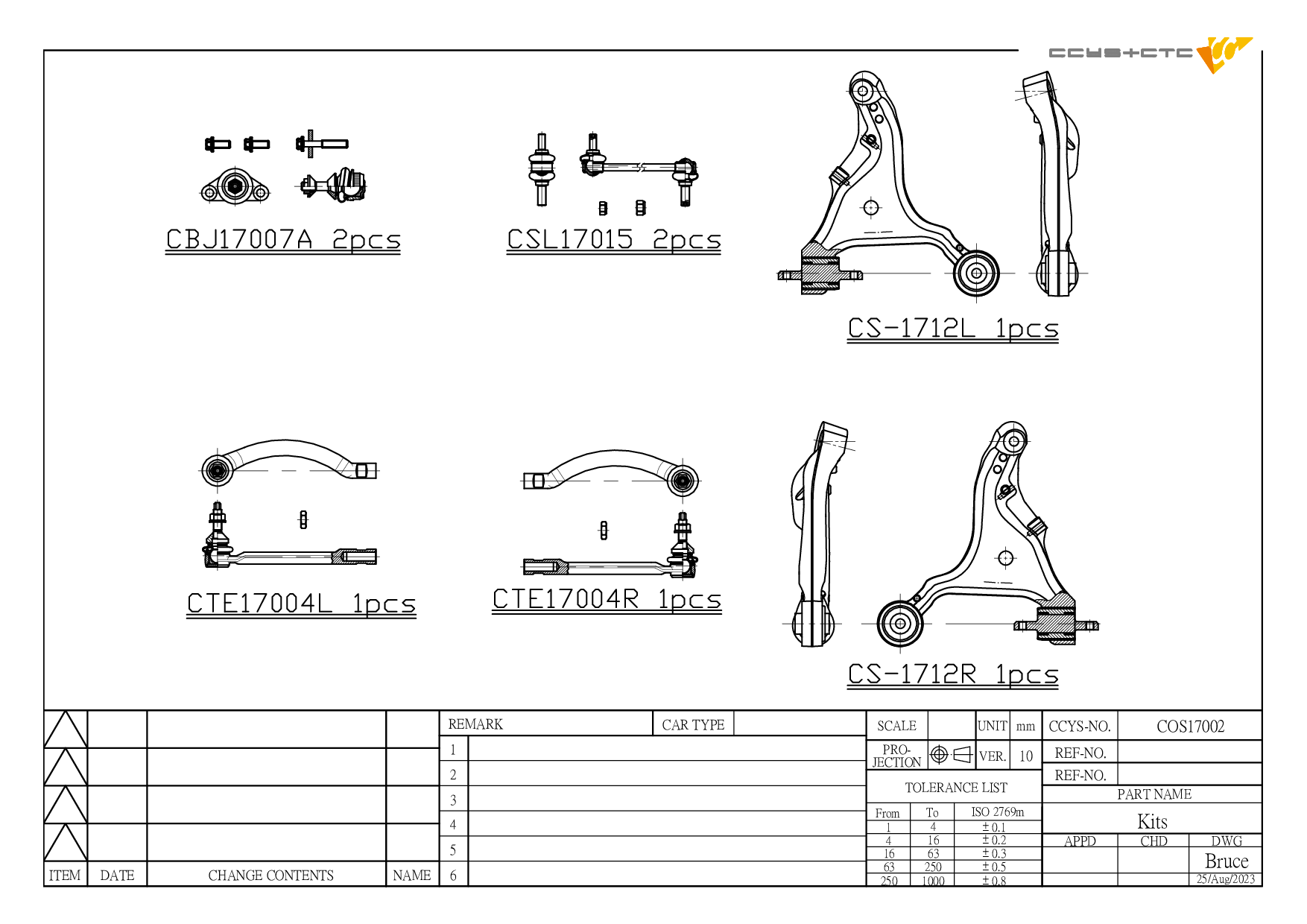

COS17002
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 450 mm |
| Width | 350 mm |
| Height | 225 mm |
| Net Weight | 9.35 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH17006 | FRONT AXLE | 30748890 8667020 8672220 9173761 |
|
 |
CBH17008 | REAR AXLE INNER | 31277893 9169204 |
|
 |
CBH17010 | REAR AXLE OUTER | 9127363 |
|
 |
CBH17011 | FRONT LOWER ARM REAR | 30760590 31360784 8630604 9461626 |
|
 |
CBJ17007A | FRONT LOWER LH/RH | 274185 274186 274187 274193 274193X1 274524 274544 274548 274593 8634438 9173613 91736132 9492639 |
|
 |
CBJ17008A | FRONT LOWER LH/ RH | 274377 274523 274573 |
|
 |
COS17002 | |||
 |
CRE17018 | D= M14X1.5 , C= M16X1.5 | 274179 8663288 8663289 9173611 9173612 |
|
 |
CRE17022 | D= M14X1.5 , C= M16X1.5 | 274353 |
|
 |
CRE17024 | D= M18X1.5 , C= M16X1.5 | 31280408 |
|
 |
CS-1712L | FRONT LOWER LH | 30635229 30666419 30714752 30736378 31387923 36012457 36051002 8623957 8649543 |
|
 |
CS-1712R | FRONT LOWER RH | 30635230 30666420 30714753 30736379 31387924 36012458 36051003 8623958 8649544 |
|
 |
CSL17013 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CSL17015 | FRONT (A= 332MM) | 274303 274456 30647919 30714685 31201602 31212692 8634736 8672445 9200603 |
|
 |
CSL17017 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CTE17004L | FRONT AXLE LH (C= M14X1.5) | 274175 274496 30761719 8663288 9173611 9490820 |
|
 |
CTE17004R | FRONT AXLE RH (C= M14X1.5) | 274176 274497 30761718 8663289 9173612 9490821 |
| Model (Year) |
|---|
|
S60 I (384) V70 I (875, 876) V70 II (285) |
