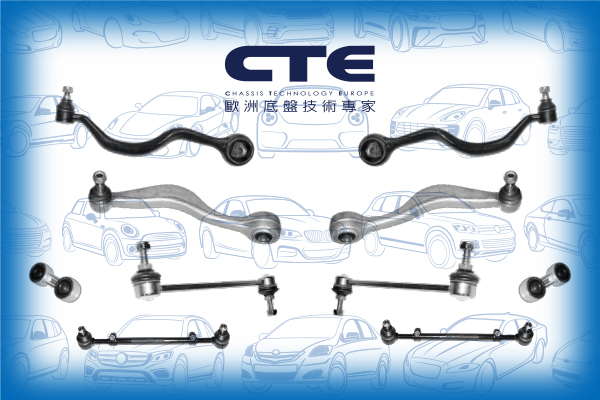

COS09017
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 495 mm |
| Width | 270 mm |
| Height | 185 mm |
| Net Weight | 10.42 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09002 | FRONT LOWER ARM INNER | 31121092019 31121094235 |
|
 |

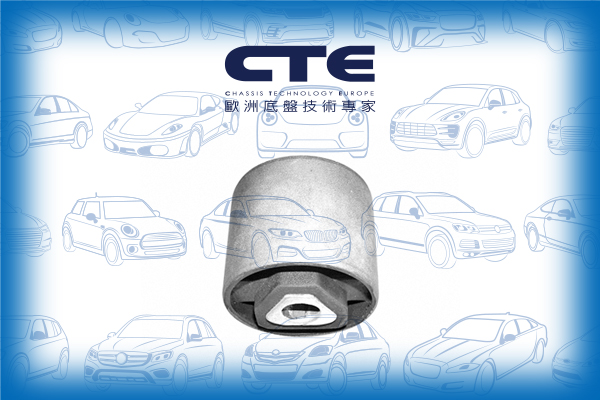

CBH09004 | FRONT UPPER ARM INNER | 1 130 587 1 136 606 1 139 456 31 12 1 130 587 31 12 1 133 710 31 12 1 136 605 31 12 1 136 606 31 12 1 136 607 31 12 1 139 456 31 12 2 226 528 |
|
 |

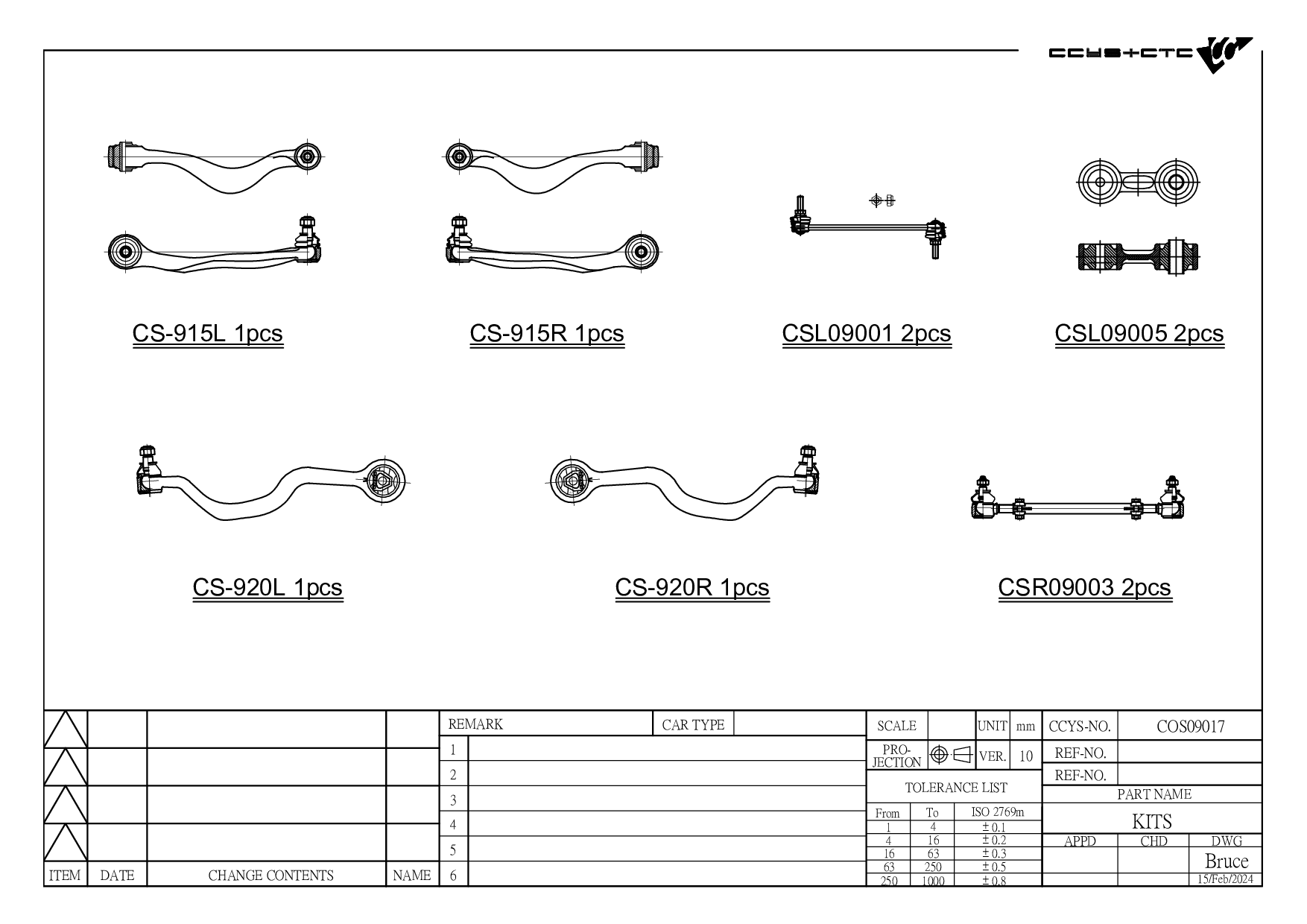

COS09017 | |||
 |
CS-912L | FRONT UPPER LH | 1 130 089 1 130 597 1 139 999 31 12 1 130 089 31 12 1 130 597 31 12 1 139 999 |
|
 |
CS-912R | FRONT UPPER RH | 1 130 090 1 133 490 1 140 000 31 12 1 130 090 31 12 1 133 490 31 12 1 140 000 |
|
 |
CS-915L | FRONT LOWER LH | 1 133 237 1 139 987 31 12 1 133 237 31 12 1 139 987 |
|
 |
CS-915R | FRONT LOWER RH | 1 133 238 1 139 988 31 12 1 133 238 31 12 1 139 988 |
|
 |
CS-920L | FRONT UPPER LH (W/ BUSH) | 1 130 089 1 130 597 1 139 999 31 12 1 130 089 31 12 1 130 597 31 12 1 139 999 CS-912L+CBH09004 |
|
 |
CS-920R | FRONT UPPER RH (W/ BUSH) | 1 130 090 1 133 490 1 140 000 31 12 1 130 090 31 12 1 133 490 31 12 1 140 000 CS-912R+CBH09004 |
|
 |
CSL09001 | FRONT (A= 240MM) | 1 124 380 1 127 194 1 128 050 1 130 075 1 134 582 31 35 1 124 380 31 35 1 127 194 31 35 1 128 050 31 35 1 130 075 31 35 1 134 582 |
|
 |
CSL09005 | REAR (A= 60MM) | 1 131 131 1 135 307 33 55 1 131 131 33 55 1 135 307 |
|
 |
CSR09003 | FRONT AXLE LH/ RH | 1 124 231 1 129 020 1 135 666 1 135 668 32 21 1 124 231 32 21 1 129 020 32 21 1 135 666 32 21 1 135 668 |
|
 |
CTE09003L | FRONT AXLE LH/ RH (C= M14X1.5L) OUTER | 1 127 918 1 130 001 1 135 819 1 135 822 31 21 1 127 918 32 21 1 130 001 32 21 1 135 819 32 21 1 135 822 |
|
 |
CTE09003R | FRONT AXLE LH/ RH (C= M14X1.5) INNER | 1 127 917 1 130 004 1 135 820 1 135 824 32 21 1 127 917 32 21 1 130 004 32 21 1 135 820 32 21 1 135 824 |
| Model (Year) |
|---|
|
7 (E32) |
