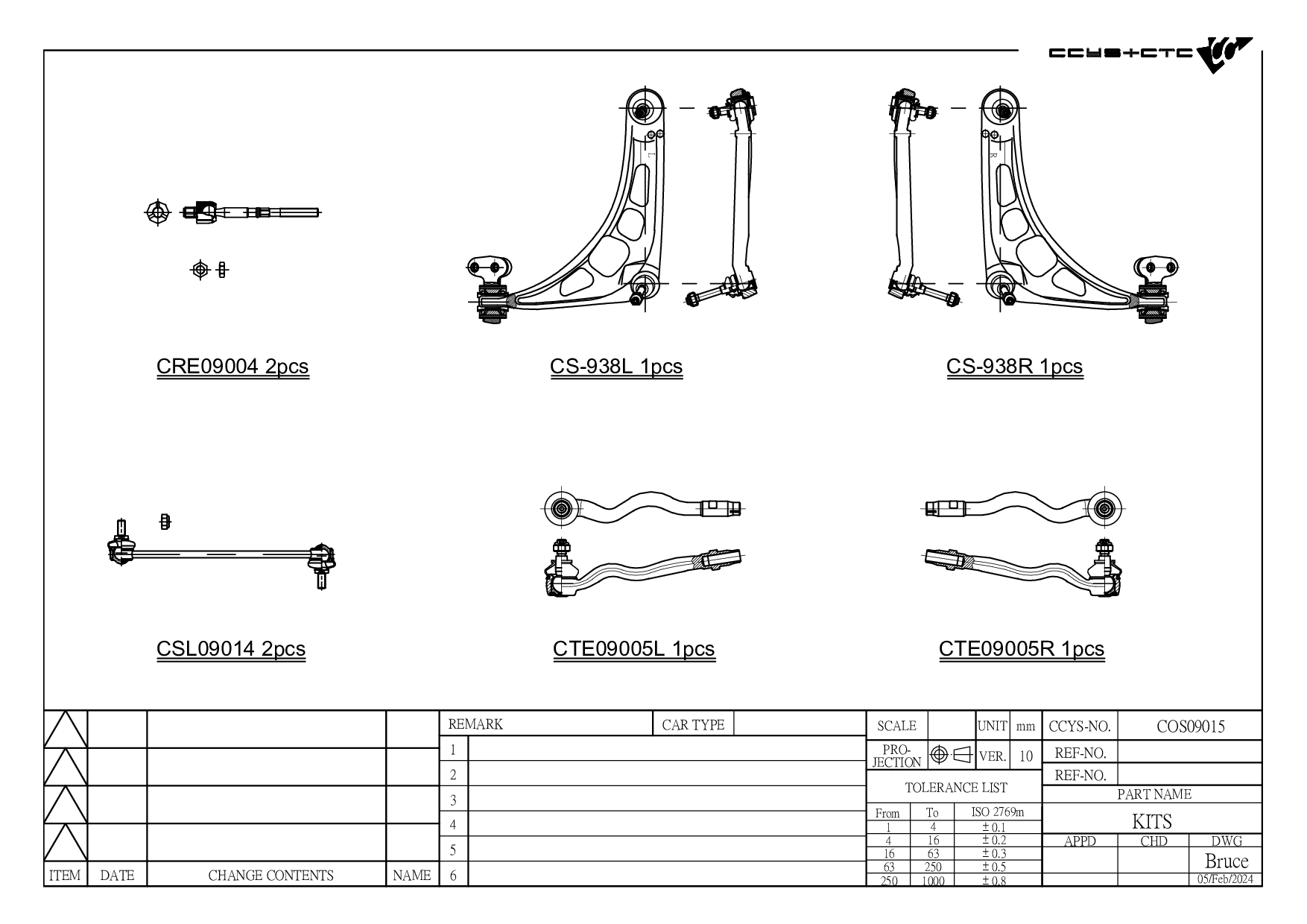

COS09015
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 495 mm |
| Width | 490 mm |
| Height | 240 mm |
| Net Weight | 12.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09007 | FRONT LOWER ARM REAR (REPAIR KIT) | 1 095 277 1 095 278 1 096 983 1 096 984 31 12 1 095 277 31 12 1 095 278 31 12 1 096 983 31 12 1 096 984 31 12 6 750 221 31 12 6 750 222 31 12 6 751 435 31 12 6 751 436 31 12 6 753 059 31 12 6 753 060 31 12 6 757 622 31 12 6 757 623 31 12 6 777 850 31 12 6 |
|
 |
CBH09008 | FRONT LOWER ARM LH REAR | 31 12 6 754 899 45540-62J00-000 S1 6 754 899 |
|
 |
CBH09009 | FRONT LOWER ARM RH REAR | 31 12 6 754 900 6 754 900 |
|
 |
CBH09012 | FRONT LOWER ARM REAR | 31 12 1 096 982 31 12 4 000 612 31 12 6 750 057 31 12 6 751 372 31 12 6 753 058 31 12 6 754 547 31 12 6 757 999 31 12 9 071 663 31 12 9 071 952 |
|
 |
CBH09013 | FRONT LOWER ARM REAR | 31 12 6 755 432 |
|
 |
COS09015 | |||
 |
CRE09004 | D= M14X1.5 , C= M18X1.5 | 32 10 6 774 222 32 10 6 774 223 32 10 6 777 503 32 10 6 777 504 32 11 1 096 897 32 11 1 096 898 32 21 1 095 955 32 21 1 095 956 32 21 1 096 897 32 21 1 096 898 |
|
 |
CS-918L | FRONT LOWER LH | 31 12 1 094 465 31 12 6 751 317 31 12 6 752 717 31 12 6 758 519 31 12 6 770 247 31 12 6 774 819 31 12 6 777 851 |
|
 |
CS-918R | FRONT LOWER RH | 31 12 1 094 466 31 12 6 751 318 31 12 6 752 718 31 12 6 758 520 31 12 6 770 248 31 12 6 774 820 31 12 6 777 852 |
|
 |
CS-930L | FRONT LOWER LH | 2 282 121 2 341 297 31 12 2 282 121 31 12 2 341 297 |
|
 |
CS-930R | FRONT LOWER RH | 2 282 122 2 341 828 31 12 2 282 122 31 12 2 341 828 |
|
 |
CS-938L | FRONT LOWER LH | 31 12 1 094 465 31 12 6 751 317 31 12 6 752 717 31 12 6 758 519 31 12 6 770 247 31 12 6 774 819 31 12 6 777 851 CS-918L+CBH09008 |
|
 |
CS-938R | FRONT LOWER RH | 31 12 1 094 466 31 12 6 751 318 31 12 6 752 718 31 12 6 758 520 31 12 6 770 248 31 12 6 774 820 31 12 6 777 852 CS-918R+CBH09009 |
|
 |
CSL09011 | REAR (A= 95MM) | 33 35 5 094 619 33 55 1 094 619 |
|
 |
CSL09014 | FRONT (A= 270MM) | 31 35 1 095 694 31 35 6 780 847 |
|
 |
CSR09005L | FRONT AXLE LH | 32 10 6 774 222 32 10 6 777 503 32 11 1 096 897 32 21 1 095 955 32 21 1 096 897 |
|
 |
CSR09005R | FRONT AXLE RH | 32 10 6 774 223 32 10 6 777 504 32 11 1 096 898 32 21 1 095 956 32 21 1 096 898 |
|
 |
CTE09005L | FRONT AXLE LH (C= M14X1.5) | 1 095 957 32 10 6 774 220 32 21 1 095 957 6 774 220 |
|
 |
CTE09005R | FRONT AXLE RH (C= M14X1.5) | 1 095 958 32 10 6 774 221 32 21 1 095 958 6 774 221 |
| Model (Year) |
|---|
|
3 (E46) 3 Compact (E46) 3 Convertible (E46) 3 Coupe (E46) 3 Touring (E46) |
