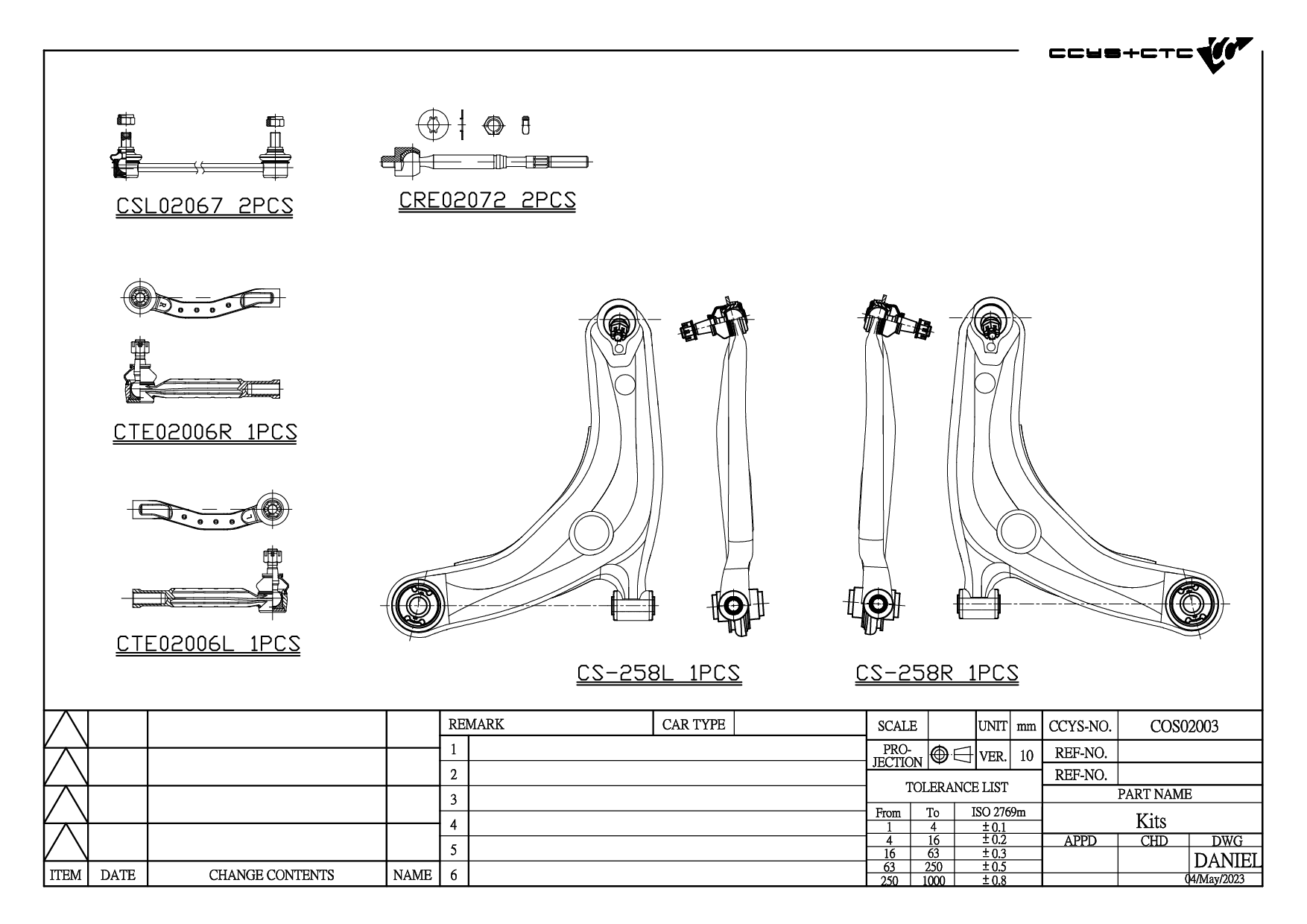

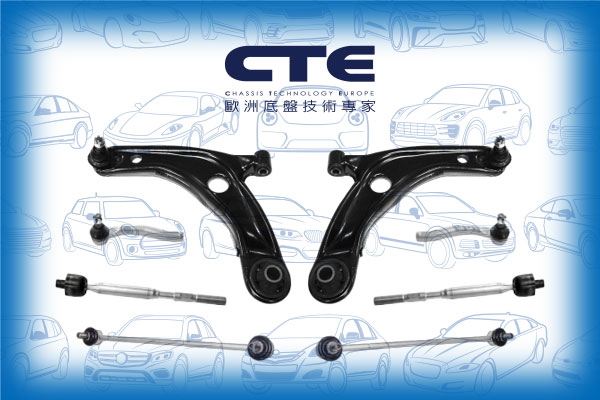

COS02003
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 10.74 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02049 | FRONT LOWER ARM REAR | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |
CBH02050 | FRONT LOWER ARM INNER | 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |
CBH02072 | FRONT AXLE LH/RH | 48815-0D100 48815-52080 48815-52090 |
|
 |
CBJ02015 | FRONT LOWER LH/ RH | 43308-09010 43308-09070 43308-09071 43308-09080 43308-09081 43308-0H010 43308-19176 43308-59035 43308-59055 43308-59065 43308-59095 |
|
 |
CBJ25003 | FRONT LOWER LH/ RH | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |
COS02003 | |||
 |
CRE02072 | D= M14X1.5 , C= M14X1.5 | 45503-0D020 45503-0D080 45503-0D090 45503-52060 45503-52070 45503-52140 45510-52140 45510-52350 45510-52351 45510-52390 |
|
 |
CS-258L | FRONT LOWER LH | 48069-09040 48069-09041 48069-09071 48069-09140 48069-59095 48069-59125 48069-59135 48069-W9005 |
|
 |
CS-258R | FRONT LOWER RH | 48068-09040 48068-09041 48068-09081 48068-09150 48068-59095 48068-59135 48068-59145 48068-W9005 |
|
 |
CSL02067 | FRONT (A= 360MM) | 48820-0D010 48820-0D020 48820-0D030 48820-0D080 48820-52030 48820-52030M 48820-52040 48820-52070 |
|
 |
CTE02006L | FRONT AXLE LH (C= M14X1.5) | 45047-09220 45047-09250 45047-09301 45047-09540 45047-0D040 45047-59135 45047-59155 45047-59165 |
|
 |
CTE02006R | FRONT AXLE RH (C= M14X1.5) | 45046-09480 45046-09530 45046-09540 45046-09631 45046-0D040 45046-59195 45046-59225 45046-59255 |
|
 |
CTE02007L | FRONT LH | 45047-02010 45047-02040 45047-09050 45047-09150 45047-09230 45047-19115 45047-49045 |
|
 |
CTE02007R | FRONT RH | 45046-02040 45046-02050 45046-09160 45046-09360 45046-09490 45046-19265 45046-49115 |
| Model (Year) |
|---|
|
YARIS (_P9_) | YARIS/VITZ | VITZ |
