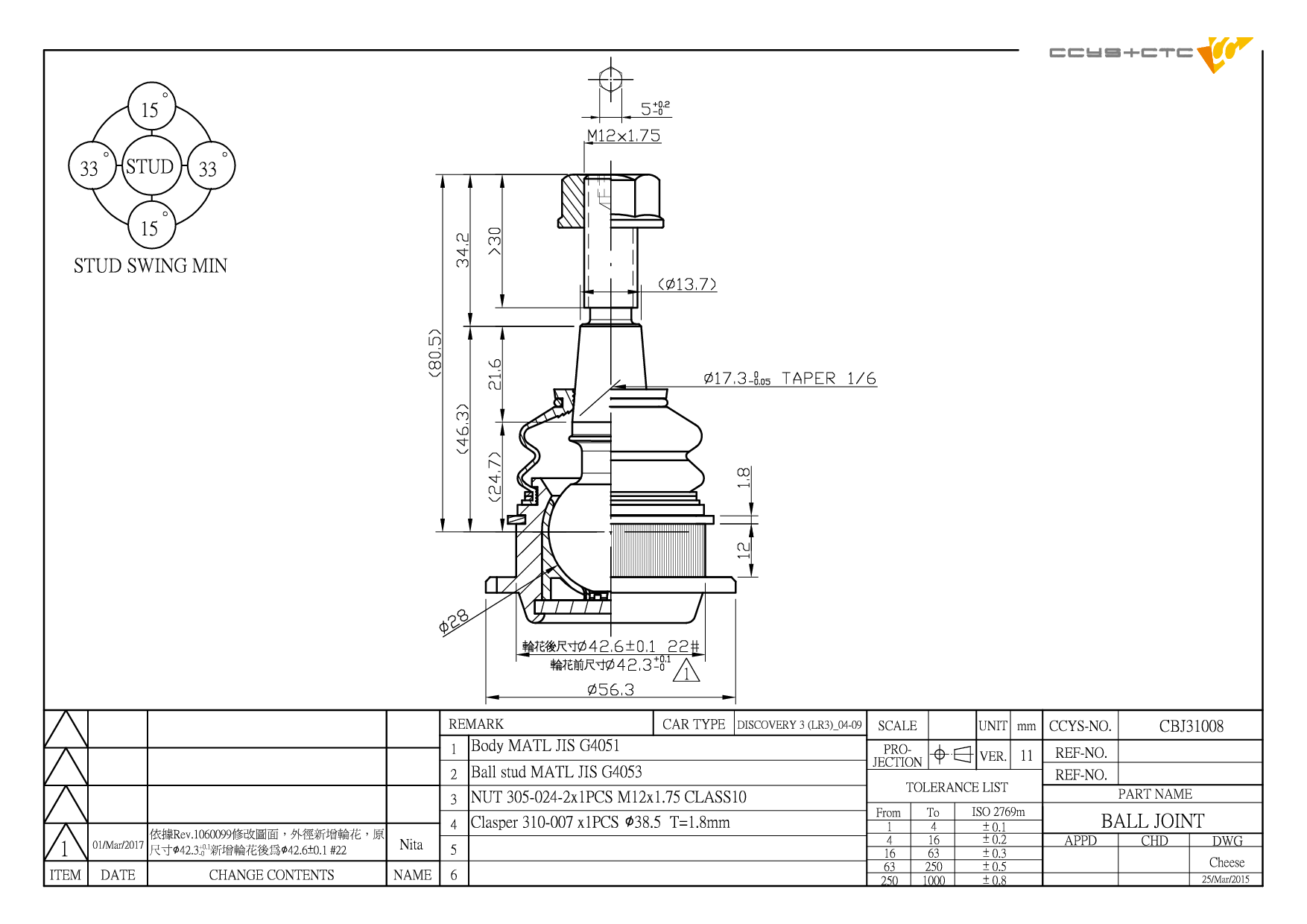

CBJ31008
| Designation | Ball Joint |
| Position | FRONT UPPER LH/ RH |
| OE No. | RBK500030 / RBK500161 / RBK500170 |
| Length | 56.3 mm |
| Width | 56.3 mm |
| Height | 101 mm |
| Net Weight | 0.4 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31007 | FRONT LOWER ARM REAR | LR023715 LR025986 LR055291 RBX500531 |
|
 |
CBH31009 | FRONT LOWER ARM INNER | RBX500431 RBX500432 |
|
 |
CBH31010 | FRONT UPPER ARM INNER | LR018345 RBJ000120 SK RBJ000130 SK RBX000200 XH423A262AA XH423A262AB |
|
 |
CBH31019 | FRONT UPPER ARM INNER | RBX500440 |
|
 |
CBJ31003 | FRONT LOWER LH/ RH | 5H223395DA 8H223K209AA 8H223K209AB RBK500040 RBK500140 RBK500180 RBK500230 RBK500240 RBK500280 RBK500300 |
|
 |
CBJ31008 | FRONT UPPER LH/ RH | RBK500030 RBK500161 RBK500170 |
|
 |
CRE31002 | D= M16X1.5 , C= M16X1.5 | QFK500030 |
|
 |
CS-3105L | FRONT LOWER LH | LR028252 LR029306 RBJ500456 RBJ501290 RBJ501390 RBJ501510 RBJ501610 |
|
 |
CS-3105R | FRONT LOWER RH | LR028248 LR029304 RBJ500446 RBJ501280 RBJ501380 RBJ501500 RBJ501600 |
|
 |
CS-3106L | FRONT UPPER LH | LR014629 LR051618 LR074838 RBJ500790 RBJ500850 |
|
 |
CS-3106R | FRONT UPPER RH | LR014619 LR026095 LR051617 RBJ500780 RBJ500840 |
|
 |
CS-3113L | FRONT UPPER LH | LR018344 RBJ000130 RBJ018344 XH423397BA XH423397BB |
|
 |
CS-3113R | FRONT UPPER RH | LR018343 RBJ000120 RBJ018343 XH423397AA XH423397AB |
|
 |
CS-3132L | FRONT LOWER LH | ||
 |
CS-3132R | FRONT LOWER RH | ||
 |
CS-3133L | FRONT UPPER LH | ||
 |
CS-3133R | FRONT UPPER RH | ||
 |
CSL31009L | FRONT LH (A= 345MM) | RBM500150 |
|
 |
CSL31009R | FRONT RH (A= 345MM) | RBM500140 |
|
 |
CSL31010 | REAR(A= 131.5MM) | RGD500140 |
|
 |
CSL31011 | FRONT (A= 379.5MM) | 3H423B438AA 3H423B438AB 3H423B438AC LR030047 LR073340 RBM000010 RBM000011 RBM500200 XH423B438AA |
|
 |
CSL31012 | REAR (A= 120MM) | 3H425A994AA 3H425A994AB LR030048 RGD000131 RGD500150 XH425A994AA |
|
 |
CTE31005 | FRONT AXLE LH/RH (C= M16X1.5) | LR010675 QJB500040 |
| Model (Year) |
|---|
|
DISCOVERY IV (L319) | LR4 DISCOVERY IV VAN (L319) RANGE ROVER SPORT I (L320) |
