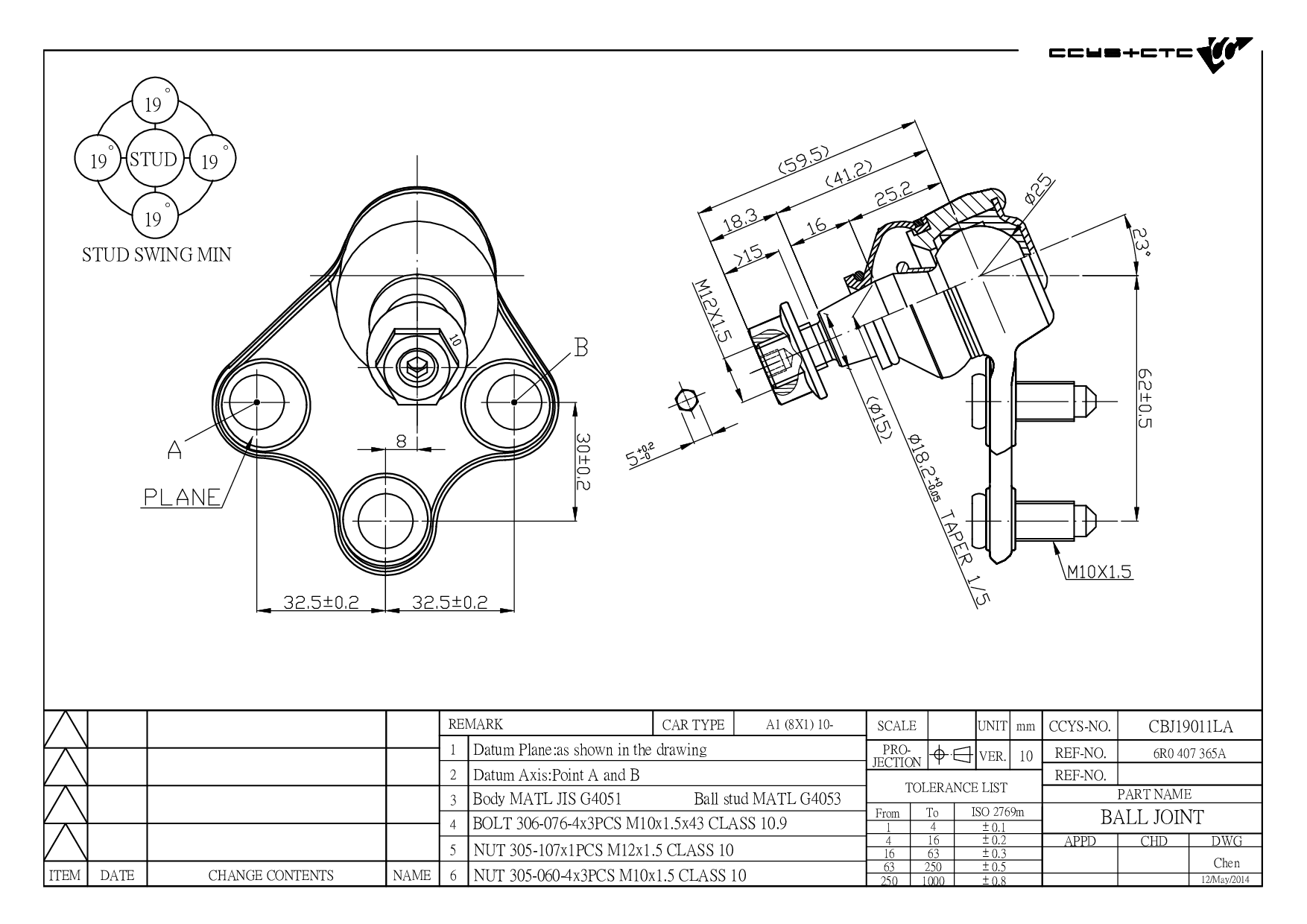

CBJ19011LA
| Designation | Ball Joint |
| Position | FRONT LOWER LH |
| OE No. | 5U0 407 365 / 5U0 407 365A / 6R0 407 365 / 6R0 407 365A / 6R0 407 365B |
| Length | 99 mm |
| Width | 89 mm |
| Height | 104 mm |
| Net Weight | 0.55 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19029 | FRONT LOWER ARM REAR | 6R0 407 181B 8N0 407 181B |
|
 |
CBH19030 | FRONT LOWER ARM INNER | 6R0 407 151A 6R0 407 151B 6R0 407 151C 6R0 407 151F 6R0 407 152A 6R0 407 152B 6R0 407 152C 6R0 407 152F |
|
 |
CBJ19011LA | FRONT LOWER LH | 5U0 407 365 5U0 407 365A 6R0 407 365 6R0 407 365A 6R0 407 365B |
|
 |
CBJ19011RA | FRONT LOWER RH | 5U0 407 366 5U0 407 366A 6R0 407 366 6R0 407 366A 6R0 407 366B |
|
 |
CS-1940L | FRONT LOWER LH | 6R0 407 151B 6R0 407 151C |
|
 |
CS-1940R | FRONT LOWER RH | 6R0 407 152B 6R0 407 152C |
|
 |
CS-1941L | FRONT LOWER LH | 6R0 407 151B 6R0 407 151C CS-1940L+CBJ19011LA |
|
 |
CS-1941R | FRONT LOWER LH | 6R0 407 152B 6R0 407 152C CS-1940R+CBJ19011RA |
|
 |
CS-1942L | FRONT LOWER LH | 6R0 407 151A 6R0 407 151F |
|
 |
CS-1942R | FRONT LOWER RH | 6R0 407 152A 6R0 407 152F |
|
 |
CS-1943L | FRONT LOWER LH | 6R0 407 151A 6R0 407 151F CS-1942L+CBJ19011LA |
|
 |
CS-1943R | FRONT LOWER RH | 6R0 407 152A 6R0 407 152F CS-1942R+CBJ19011RA |
|
 |
CSL19017 | FRONT | 6C0 411 315 6C0 411 315A 6Q0 411 315A 6Q0 411 315B 6Q0 411 315C 6Q0 411 315D 6Q0 411 315E 6Q0 411 315F 6Q0 411 315G 6Q0 411 315H 6Q0 411 315J 6Q0 411 315L 6Q0 411 315M 6Q0 411 315N 6Q0 411 315P 6Q0 411 315Q 6R0 411 315 6R0 411 315A 6R0 411 315B 8Z0 411 31 |
|
 |
CSR19002L | FRONT AXLE LH | 6R0 423 803D |
|
 |
CSR19002R | FRONT AXLE RH | 6R0 423 804D |
|
 |
CTE20008L | FRONT AXLE LH (C= M14X1.5) | 5U0 422 811A 6Q0 419 811C 6Q0 423 811 6Q0 423 811C 6Q0 423 811D 6R0 423 811 6R0 423 811A 6RD 423 811A 6RD 423 811B |
|
 |
CTE20008R | FRONT AXLE RH (C= M14X1.5) | 5Z0 423 812 6Q0 419 812C 6Q0 423 812 6Q0 423 812C 6Q0 423 812D 6R0 423 812 6R0 423 812A 6RD 423 812B |
| Model (Year) |
|---|
|
A1 (8X1, 8XK) A1 Sportback (8XA, 8XF) |
| Model (Year) |
|---|
|
CORDOBA (6L2) IBIZA III (6L1) |
| Model (Year) |
|---|
|
CITIGO (NF1) FABIA II (542) FABIA II Combi (545) FABIA III (NJ3) FABIA III Estate (NJ5) RAPID (NH3, NK3, NK6) RAPID Spaceback (NH1) ROOMSTER (5J7) |
| Model (Year) |
|---|
|
POLO IV (9N_, 9A_) POLO V (6R1, 6C1) POLO V Saloon (602, 604, 612, 614) |
