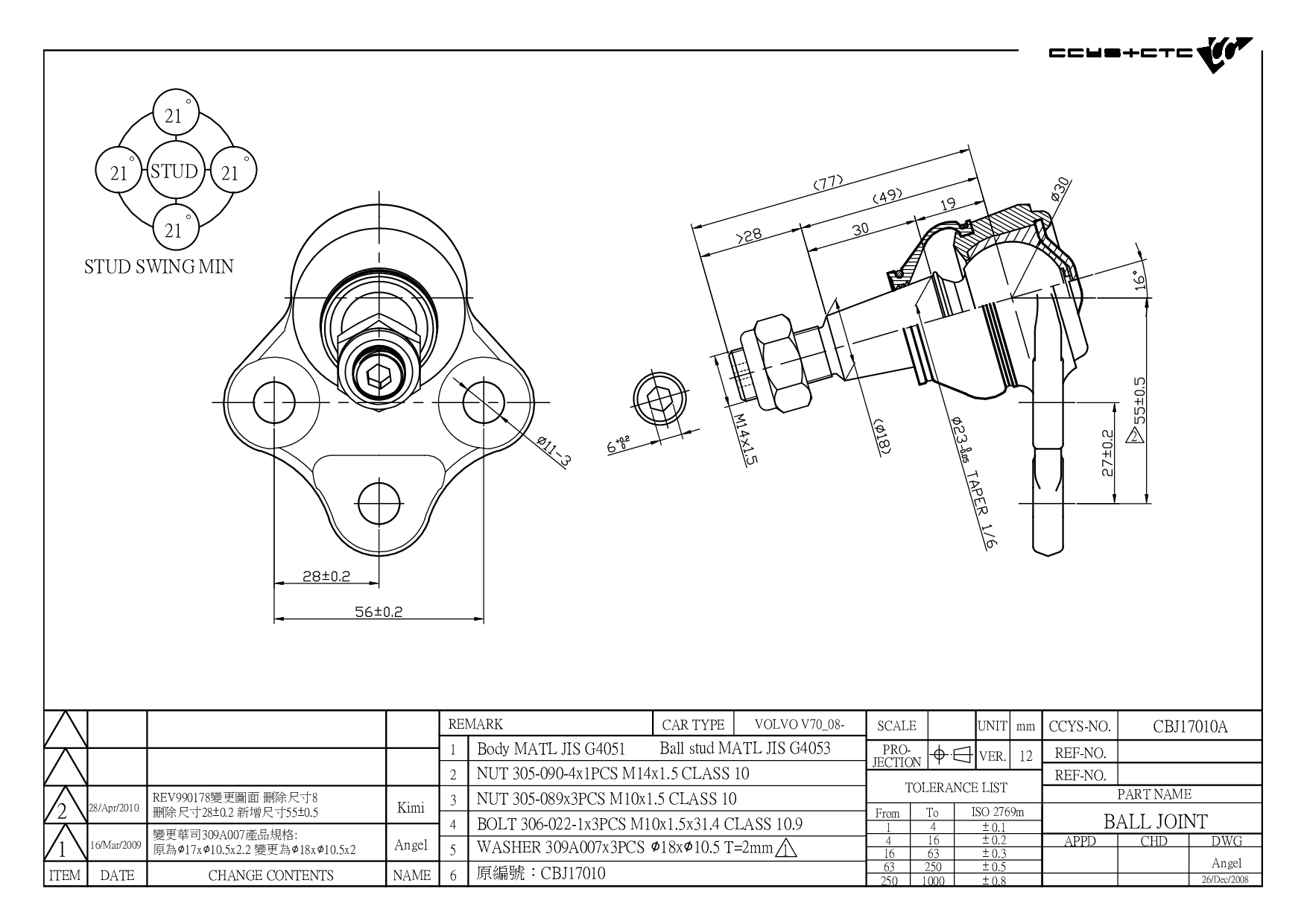

CBJ17010A
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | 1377846 / 1377848 / 1385593 / 1385594 / 1403408 / 1403410 / 1419814 / 1419815 / 1426875 / 1426876 / 1435745 / 1435747 / 1458773 / 1460693 / 1466186 / 1466188 / 1469024 / 1469026 / 1507181 / 1507182 / 30671636 / 30671637 / 31200448 / 31200449 / 31200563 / 31200564 / 31200775 / 31200776 / 31212781 / 31212782 / 31277 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.68 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

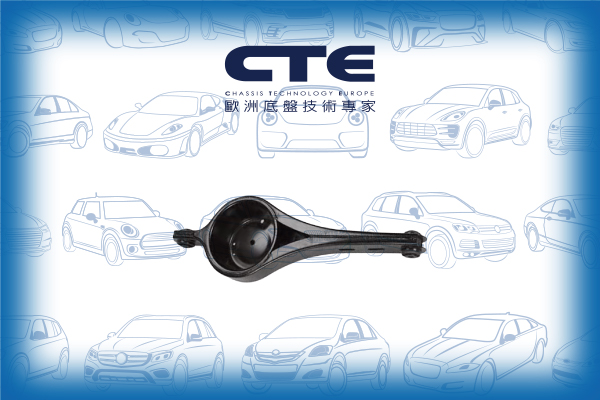

CBH03067L | FRONT LOWER ARM LH REAR | 1888630 31262475 31340128 31387571 31429321 7G9J3A262AB |
|
 |
CBH03067R | FRONT LOWER ARM RH REAR | 1883048 31262473 31340127 31387572 31429320 7G9J3A262BB |
|
 |
CBH17030 | FRONT LOWER ARM INNER | 1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206 |
|
 |
CBJ17010A | FRONT LOWER LH/ RH | 1377846 1377848 1385593 1385594 1403408 1403410 1419814 1419815 1426875 1426876 1435745 1435747 1458773 1460693 1466186 1466188 1469024 1469026 1507181 1507182 30671636 30671637 31200448 31200449 31200563 31200564 31200775 31200776 31212781 31212782 31277 |
|
 |
CS-353L | FRONT LOWER LH | 1377848 1385594 1403410 1419815 1426876 1435747 1460693 1466188 1469026 1507182 30671636 31200448 31200563 31212782 31277343 31317661 6G9N-3A053-DA 6G9N-3A053-DB 6G9N-3A053-DC 6G9N-3A053-DD 6G9N-3A053-DE 6G9N-3A053-DF 6G9N-3A053-DG 6G9N-3A053-DH 7G9N 3A05 |
|
 |
CS-353R | FRONT LOWER RH | 1377846 1385593 1403408 1419814 1426875 1435745 1458773 1466186 1469024 1507181 30671637 31200449 31200564 31212781 31277344 31317662 6G9N-3A052-DA 6G9N-3A052-DB 6G9N-3A052-DC 6G9N-3A052-DD 6G9N-3A052-DE 6G9N-3A052-DF 6G9N-3A052-DG 6G9N-3A052-DH 7G9N 3A05 |
| Model (Year) |
|---|
|
GALAXY III (CK) MONDEO IV (BA7) MONDEO IV Saloon (BA7) MONDEO IV Turnier (BA7) |
| Model (Year) |
|---|
|
S80 II (124) V70 I (875, 876) |
