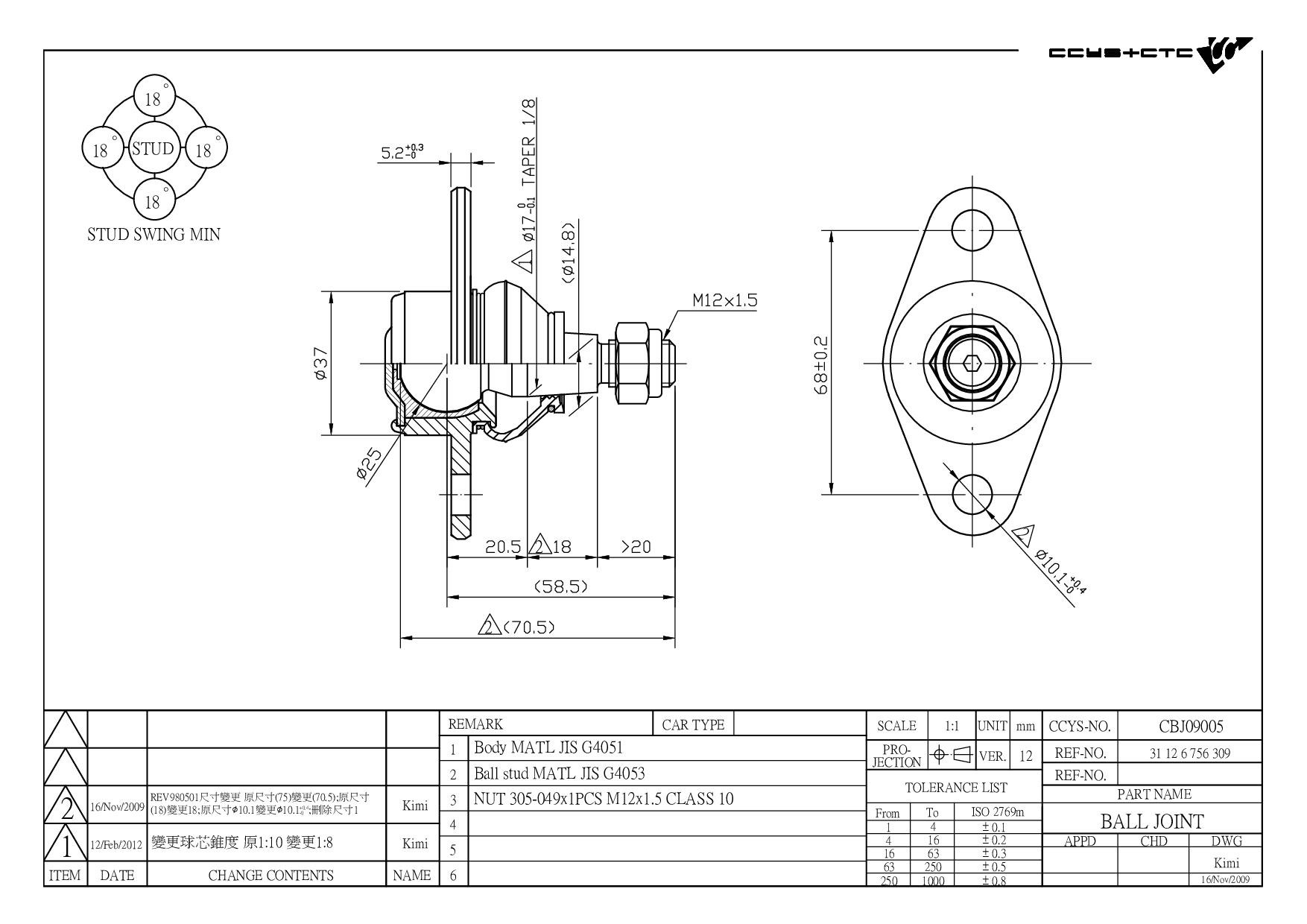

CBJ09005
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH OUTER |
| OE No. | 2 167 245 / 31 12 2 167 245 / 31 12 6 756 309 / 31 12 6 783 443 / 6 756 309 / 6 783 443 |
| Length | 90 mm |
| Width | 50 mm |
| Height | 75 mm |
| Net Weight | 0.32 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09020 | FRONT LOWER ARM REAR | 31 12 4 012 193 31 12 6 757 551 31 12 6 767 530 31 12 6 783 185 4 012 193 6 757 551 6 767 530 6 783 185 |
|
 |
CBH09021L | FRONT LOWER ARM REAR | 31 12 6 757 561 6 757 561 |
|
 |
CBH09021R | FRONT LOWER ARM REAR | 31 12 6 757 562 6 757 562 |
|
 |
CBH09043 | REAR AXLE | 33 32 6 767 206 6 767 206 |
|
 |
CBJ09004L | FRONT LOWER LH INNER | 1 489 294 31 10 6 779 437 31 12 6 753 991 31 13 1 489 294 6 753 991 6 779 437 |
|
 |
CBJ09004LA | FRONT LOWER LH INNER | 1 489 294 31 10 6 779 437 31 12 6 753 991 31 13 1 489 294 6 753 991 6 779 437 |
|
 |
CBJ09004R | FRONT LOWER RH INNER | 1 489 293 31 10 6 779 438 31 12 6 753 992 31 13 1 489 293 6 753 992 6 779 438 |
|
 |
CBJ09004RA | FRONT LOWER RH INNER | 1 489 293 31 10 6 779 438 31 12 6 753 992 31 13 1 489 293 6 753 992 6 779 438 |
|
 |
CBJ09005 | FRONT LOWER LH/ RH OUTER | 2 167 245 31 12 2 167 245 31 12 6 756 309 31 12 6 783 443 6 756 309 6 783 443 |
|
 |
COS09016 | FRONT,REAR | ||
 |
CS-922L | FRONT LOWER LH | 1 492 144 31 12 1 492 144 31 12 4 015 707 31 12 6 753 989 31 12 6 761 409 4 015 707 6 753 989 6 761 409 |
|
 |
CS-922R | FRONT LOWER RH | 1 492 143 31 12 1 492 143 31 12 4 015 708 31 12 6 753 990 31 12 6 761 410 4 015 708 6 753 990 6 761 410 |
|
 |
CS-953 | REAR AXLE LH/ RH | 1 490 085 33 32 1 490 085 33 32 6 760 054 33 32 6 768 724 33 32 6 768 726 33 32 6 769 020 33 32 6 769 023 6 760 054 6 768 724 6 768 726 6 769 020 6 769 023 |
|
 |
CSL09017 | FRONT (A= 300MM) | 31 35 6 759 537 31 35 6 778 831 6 759 537 6 778 831 |
|
 |
CSL09018 | REAR (A= 233MM) | 33 50 6 781 133 33 55 1 507 999 |
|
 |
CSL09019 | FRONT (A= 330MM) | 1 507 989 31 35 1 507 989 |
|
 |
CSL09024 | REAR (A= 233MM) | 33 50 6 772 789 |
|
 |
CTE09006L | FRONT AXLE LH (C= M14X1.5) | 32 21 6 754 565 32 21 6 761 559 6 754 565 |
|
 |
CTE09006R | FRONT AXLE RH (C= M14X1.5) | 32 21 6 754 566 32 21 6 761 560 6 754 566 |
| Model (Year) |
|---|
|
MINI (R50, R53) MINI Convertible (R52) |
