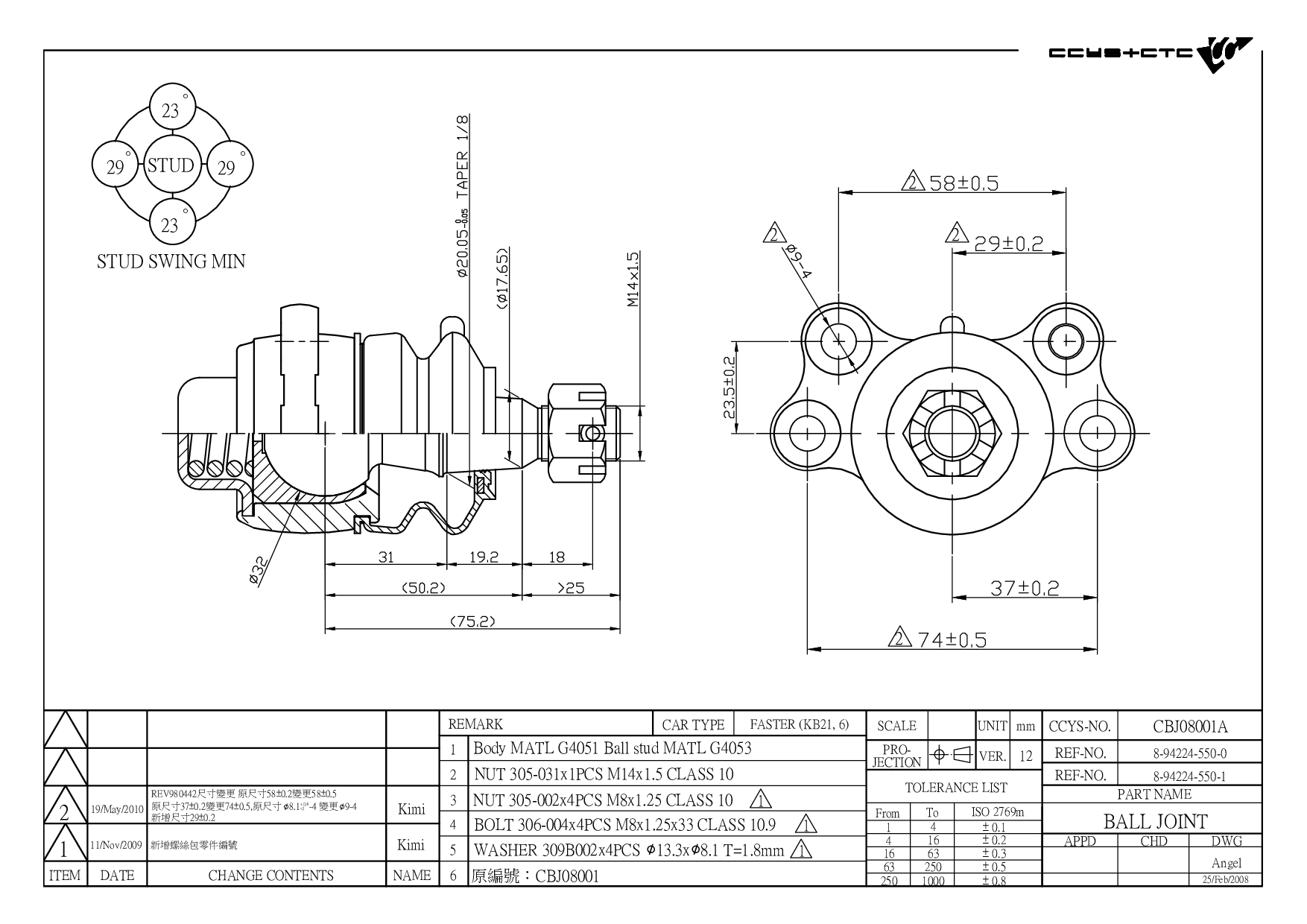

CBJ08001A
| Designation | Ball Joint |
| Position | FRONT UPPER LH/ RH |
| OE No. | 8-94224-550-0 / 8-94224-550-1 / 8-94224-550-2 / 8-94224-550-3 / 8-94224-550-4 / 8-94224-550-5 / 8-94243-234-0 / 8-94472-255-0 / 8-94472-255-2 / 94224550 / 94243234 / 9942245504 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH08002 | FRONT LOWER ARM INNER | ||
 |
CBJ08001A | FRONT UPPER LH/ RH | 8-94224-550-0 8-94224-550-1 8-94224-550-2 8-94224-550-3 8-94224-550-4 8-94224-550-5 8-94243-234-0 8-94472-255-0 8-94472-255-2 94224550 94243234 9942245504 |
|
 |
CBJ08003A | FRONT UPPER LH/ RH | 3 10 821 8-94459-453-1 8-94459-453-2 8-94459-453-3 8-94459-453-4 8-97940-625-0 94459453 |
|
 |
CBJ08004A | FRONT LOWER LH/ RH | 3 52 828 8-94452-102-0 8-94452-102-1 8-94459-465-1 8-94459-465-2 8-97235-776-0 8-97365-020-0 8-97365-021-0 8-98005-874-0 8-98005-875-0 944459465 94459465 |
|
 |

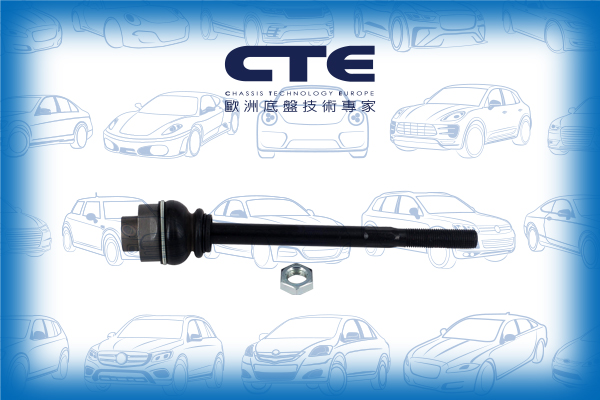

CRE08004 | D= M14X1.5 , C= M14X1.5 | 5-44350-095-1 5-44350-095-2 5-44350-095-3 94027778 |
|
 |
CS-802L | FRONT LOWER LH | 8-94246-420-0 8-94459-461-2 94459461 |
|
 |
CS-802R | FRONT LOWER RH | 8-94246-419-0 8-94459-460-2 94459460 |
|
 |
CSL08007 | REAR (A= 203MM) | 8-97018-125-2 |
|
 |
CTE08001L | FRONT AXLE LH (C= M14X1.5L) OUTER | 03 24 058 09 20 374 094459481 097020954 3 24 058 8-94419-409-0 8-94459-481-0 8-94459-481-1 8-94459-481-2 8-97020-954-0 8-97020-954-1 8-97020-954-2 8-97940-617-0 8-97956-903-A 9 20 374 94459481 97020954 |
|
 |
CTE08001R | FRONT AXLE RH (C= M14X1.5) INNER | 03 24 057 09 20 373 094459480 097020953 3 24 057 8-94419-408-0 8-94459-480-0 8-94459-480-1 8-94459-480-2 8-97020-953-0 8-97020-953-1 8-97020-953-2 8-97940-616-0 8-97956-902-A 9 20 373 94459480 97020953 |
| Model (Year) |
|---|
|
CAMPO (KB) | FASTER KB Pickup KB | FASTER PICKUP | RODEO TROOPER I (UBS) | TROOPER/BIGHORN | BIGHORN TROOPER I Open Off-Road Vehicle (UBS) | BIGHORN TROOPER II (UB) | BIGHORN TROOPER II Open Off-Road Vehicle (UB) | BIGHORN |
