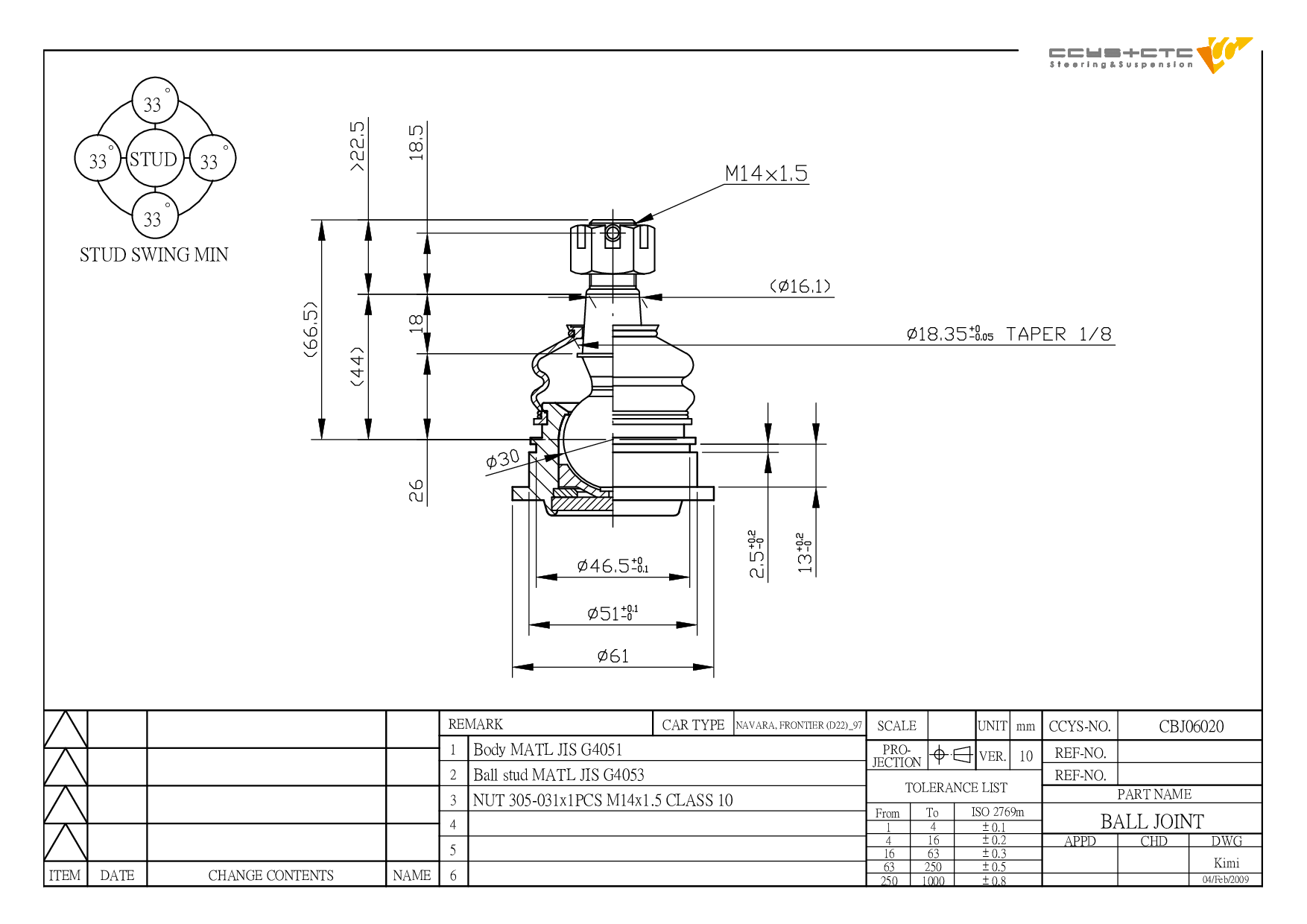

CBJ06020
| Designation | Ball Joint |
| Position | FRONT UPPER LH/ RH |
| OE No. | 40110-2S485 / 40110-2S486 / 40110-2S685 / 40110-2S686 / 40110-3S600 / 40110-8B425 / 40110-8B525 / 40110-8B550 / 40110-9Z050 / 40110-VJ200 |
| Length | 61 mm |
| Width | 61 mm |
| Height | 90 mm |
| Net Weight | 0.56 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06047 | FRONT UPPER ARM INNER | 54542-2S610 54542-8B400 |
|
 |
CBJ06020 | FRONT UPPER LH/ RH | 40110-2S485 40110-2S486 40110-2S685 40110-2S686 40110-3S600 40110-8B425 40110-8B525 40110-8B550 40110-9Z050 40110-VJ200 |
|
 |
CS-639L | FRONT UPPER LH | 54525-1Z600 54525-2S400 54525-2S485 54525-2S486 54525-8B425 54525-8B450 54525-9Z050 54525-VK085 E4525-2S486 E4525-VK085 |
|
 |
CS-639R | FRONT UPPER RH | 54524-1Z600 54524-2S400 54524-2S485 54524-2S486 54524-8B425 54524-8B450 54524-9Z050 54524-VK085 E4524-2S486 E4524-VK085 |
|
 |
CS-650L | FRONT LOWER LH | 54501-2S685 54501-2S686 54501-2S688 |
|
|
CS-650R | FRONT LOWER RH | 54500-2S685 54500-2S686 54500-2S688 |
| Model (Year) |
|---|
|
NAVARA (D22) | FRONTIER | BIG M / FRONTIER | SKYSTAR | DATSUN NAVARA Platform/Chassis (D22) | BIG M / FRONTIER NP300 PICKUP (D22) PICK UP (D22) | DATSUN XTERRA (WD22_) |
