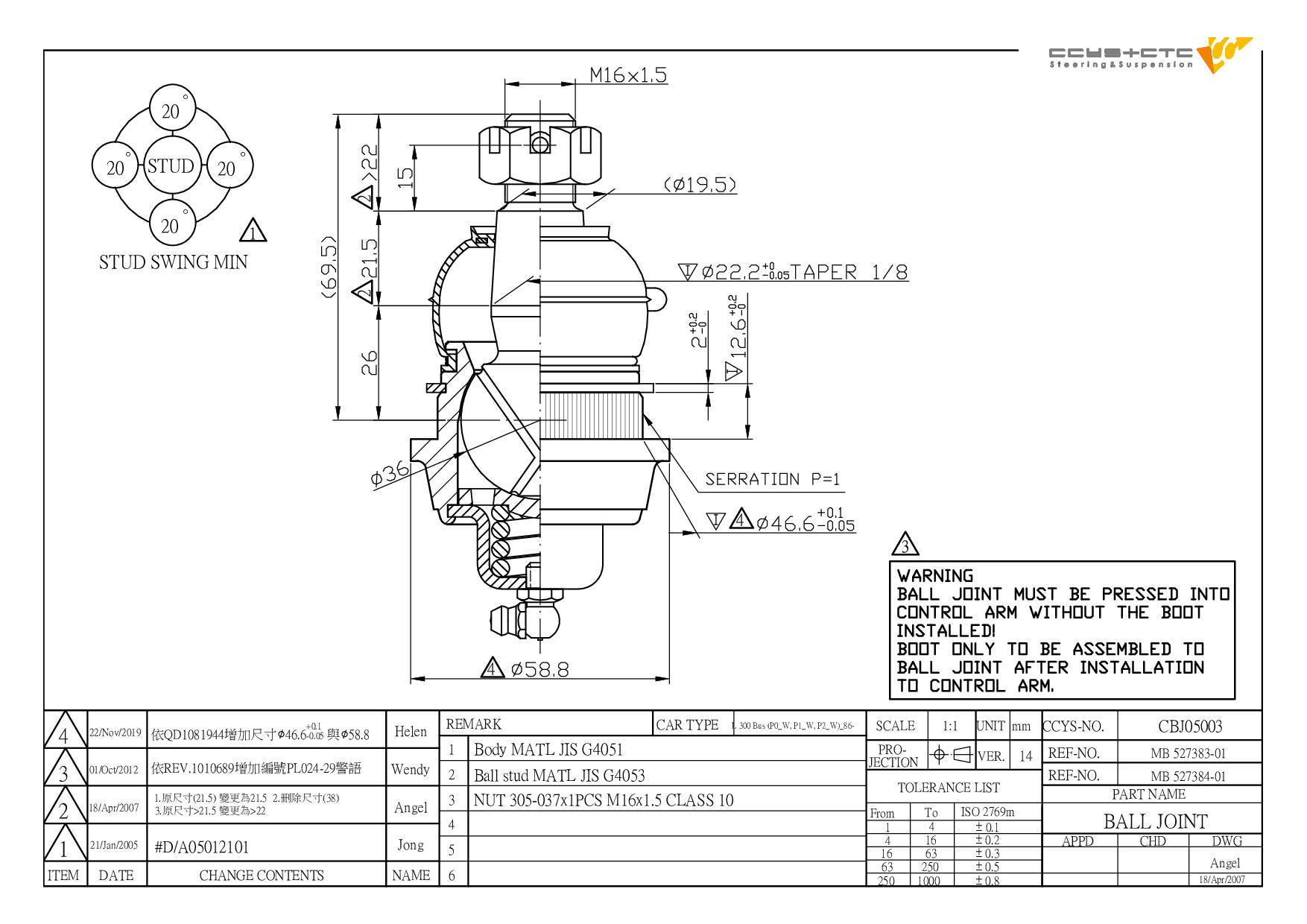

CBJ05003
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | 54417-44000 / 54431-44000 / 54510-43152-01 / 54510-4B010 / 54524-43000 / 54524-43001 / 54524-43002 / 54540-43152-01 / MB 430112 / MB 430113 / MB 527383 / MB 527383-01 / MB 527384 / MB 527384-01 / MB 598017 / MB 598018 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.74 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH05004 | FRONT LOWER ARM INNER | MB 430112 MB 430113 MB 527383 MB 527384 MB 598017 MB 598018 |
|
 |
CBJ05003 | FRONT LOWER LH/ RH | 54417-44000 54431-44000 54510-43152-01 54510-4B010 54524-43000 54524-43001 54524-43002 54540-43152-01 MB 430112 MB 430113 MB 527383 MB 527383-01 MB 527384 MB 527384-01 MB 598017 MB 598018 |
|
 |
CBJ05013A | FRONT LOWER LH/ RH | 54417-43000 54417-43A00 54417-43A01 54417-47000 54417-4A000 54417-4AA00 54417-4BA00 54457-43001 MB527349 MB527350 MB5273849 MB5273850 MB527530 MB598547-01 MB598548-01 MR178817 MR241623 |
|
 |
CRE05009 | D= M14X1.5 , C= M17X1.0 | MB 532972 |
|
 |
CS-506L | FRONT LOWER LH | 54510-43150 54510-43151 54510-43152 54510-4B000 54510-4B001 54510-4F000 MB 430112 MB 527383 MB 598017 |
|
 |
CS-506R | FRONT LOWER RH | 54540-43150 54540-43151 54540-43152 54540-4B000 54540-4B001 54540-4F000 MB 430113 MB 527384 MB 598018 |
|
 |
CTE05007 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820 4A600 56820-47300 5682047500 56820-4A000 56872-43000 56872-43010 MB 347599 MB 527650 MB 864164 MR376500 |
| Model (Year) |
|---|
|
GALLOPER II (JK-01) H100 Bus (P) | GRACE | H150 | H100 / GRACE H100 Platform/Chassis H100 Platform/Chassis (HR) | PORTER 2 H100 Platform/Chassis | STAREX H100 Van | GRACE | H150 | H100 / GRACE |
| Model (Year) |
|---|
|
GALLOPER (JK-01) L 300 / DELICA II Bus (L03_P/G, L0_2P) L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | DELICA L 300 III Platform/Chassis (P1_T ) | DELICA L 300 III Van (P0_V, P1_V, P2_V) | DELICA |
