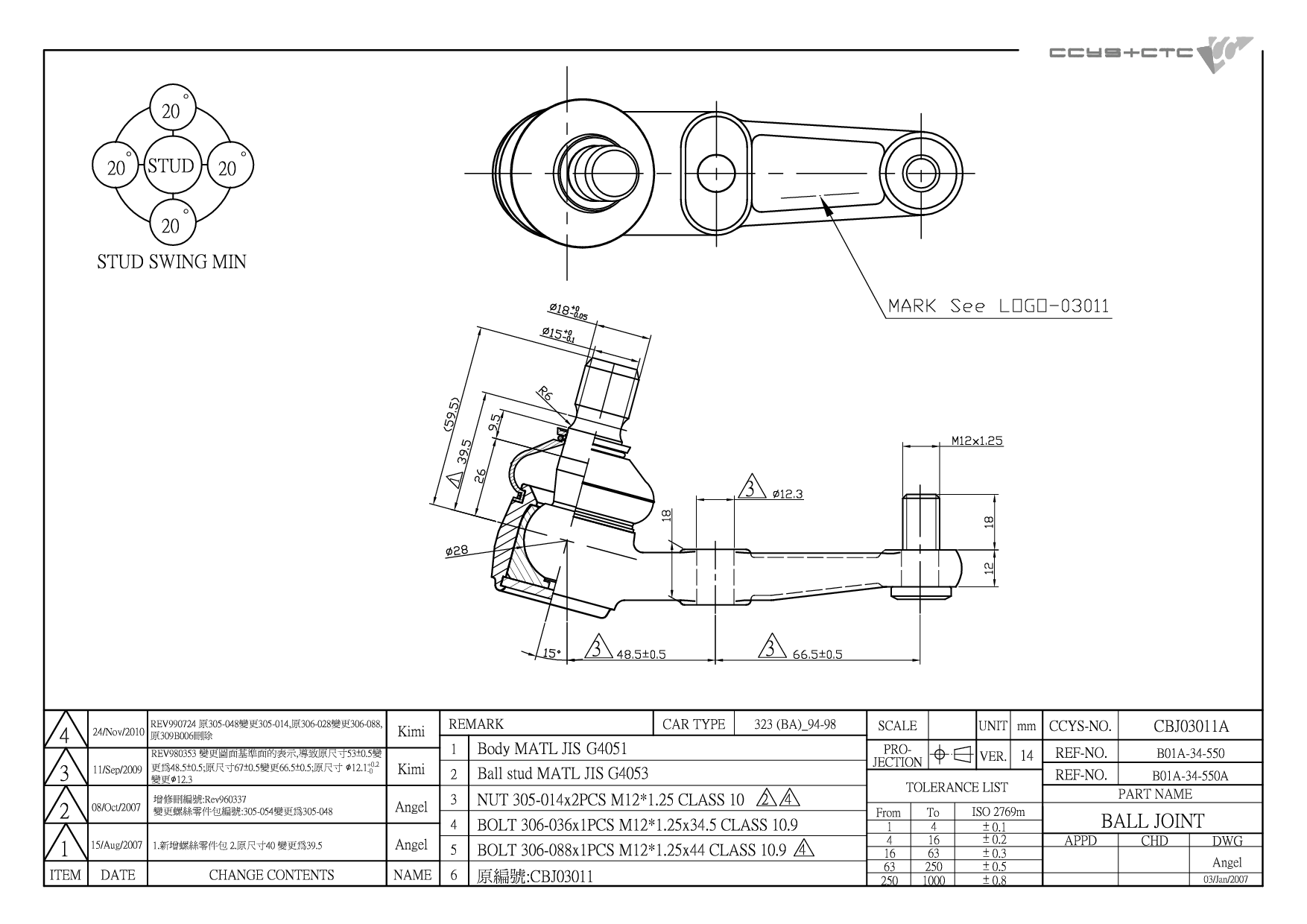

CBJ03011A
| Designation | Ball Joint |
| Position | FRONT LOWER LH/ RH |
| OE No. | B01A-34-550 / B01A-34-550A / B455-34-091 / B530-33-020A / B530-33-020B / B530-33-020E / B530-33-030A / B530-33-030B / B530-33-030D / B530-33-030E / B531-33-020A / B531-33-020B / B531-33-020D / B531-33-030A / B531-33-030B / B531-33-030D / B7DA34550 / BTA34550 / BTDA-34-550 / BTDA-34-5509A / BTDA |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.8 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ03011A | FRONT LOWER LH/ RH | B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA |
|
 |
CSL03004L | FRONT LH (A= 104MM) | 3410592 GA2A-34-170 GA2A-34-170A |
|
 |
CSL03004R | FRONT RH (A= 104MM) | 3410591 GA2A-34-150 GA2A-34-150A |
|
 |
CSL03016 | REAR (A= 250MM) | BC1D-28-170 BC1D-28-170A E112-34-150 |
| Model (Year) |
|---|
|
323 C IV (BG) | FAMILIA 323 C V (BA) | FAMILIA 323 F IV (BG) | 323 ASTINA | FAMILIAASTINA 323 F V (BA) | LANTIS | FAMILIA / LANTIS | 323 ASTINA 323 P V (BA) | FAMILIA 323 S IV (BG) | PROTEGE | FAMILIA 323 S V (BA) | FAMILIA MX-3 (EC) | AZ-3 / PRESSO | MX-3 / AZ-3 / PRESSO |
